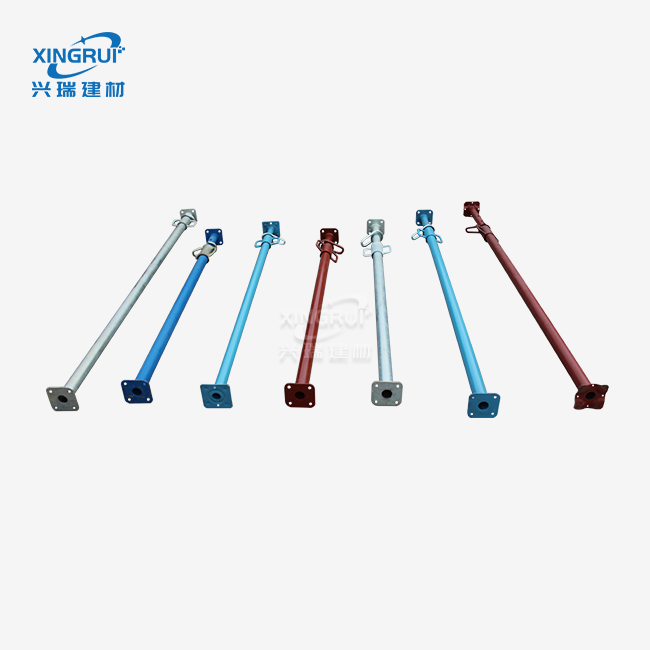

Steel Prop Adjustable Height - Professional Telescopic Support Solution

Shandong Xingrui Building Materials Co., Ltd. manufactures high-performance steel prop adjustable height systems engineered from Q235 premium-grade steel. The telescopic shoring props are equipped with built-in screw mechanisms, allowing for a precise 5mm stepless adjustment . - Diameter of the main pipe: 48mm - Load-bearing capacity: 55kN to 70kN With standard sizes of 2.0m, 2.5m, 3.0m and 3.5m these props are compatible with steel and aluminium formwork support systems. Each item is produced in our 40,000 square-meter standardised workshops. It implements the quality control by the ISO9001 certified standards of 12 welding robots and 6 automated welding lines. Our props are manned by 180 professionals in the profession and the production process allows the props to be used many times with no breakdown, in a wide range of building situations.

Technical Specifications of steel prop adjustable height

Your construction projects demand precision-engineered support systems. Our adjustable props meet rigorous international standards while delivering superior performance.

Core Performance Advantages

The threaded screw mechanism enables millimetric height adjustment with 5mm precision. This adaptability ensures perfect formwork leveling across varying floor heights.

Multiple standard lengths eliminate the need for custom sizing on most projects. You can select the optimal length for your specific construction requirements.

Our diverse load-grade options allow matching to both steel and aluminum formwork systems. This versatility reduces inventory complexity while maintaining safety margins.

High recycling rates deliver exceptional cost efficiency. The robust Q235 steel construction withstands repeated deployment cycles without performance degradation.

Primary Application Scenarios

High-Rise Concrete Formwork Support

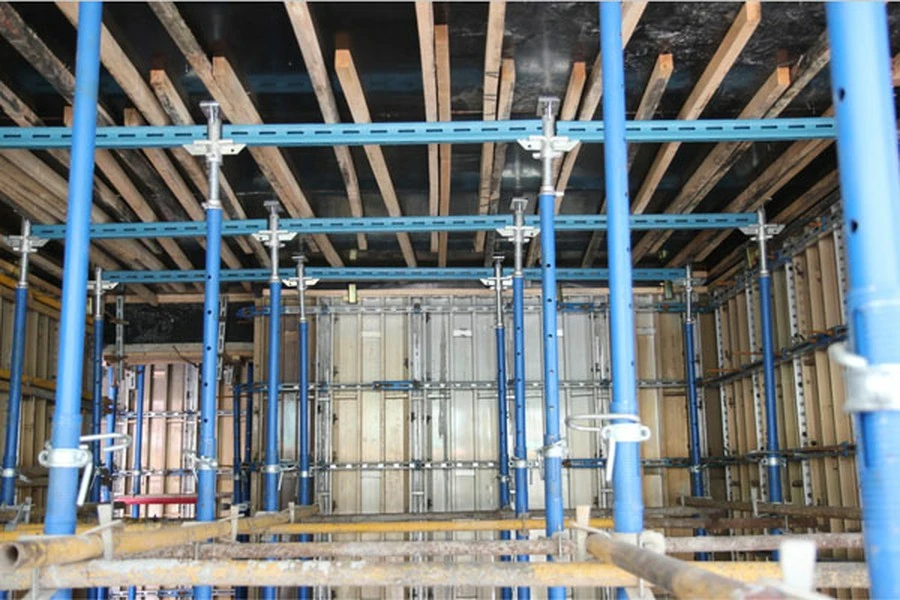

These props excel in supporting floor slabs and beams during concrete pours. They handle massive vertical pressure while enabling rapid striking and relocation between floors.

Civil Engineering & Infrastructure Projects

Heavy-duty configurations support complex bridge segments where terrain irregularity demands varying support heights. The adjustable design accommodates uneven ground conditions efficiently.

Structural Retrofitting Operations

Ideal for temporary support of load-bearing walls during renovation work. The compact footprint allows deployment in confined spaces where traditional shoring proves impractical.

Industrial Construction Environments

Performance remains consistent across extreme temperatures and high-humidity conditions for steel prop adjustable height. This reliability makes them standard equipment for both underground projects and open-air industrial builds.

Quality Assurance Process

Our comprehensive quality control system tracks every production stage. Raw material inspection verifies steel composition before fabrication begins.

Automated welding lines equipped with robotic systems ensure consistent weld quality. Ultrasonic inspection detects potential fatigue points in critical joint areas.

Axial load testing confirms each unit meets or exceeds rated capacity. Compression tests determine actual breaking points versus Safe Working Load specifications.

Surface coating thickness undergoes electromagnetic measurement. Hot-dip galvanized layers maintain minimum 60-80 micron standards for superior corrosion resistance.

Thread pitch accuracy receives dimensional verification to guarantee smooth telescopic movement. This precision prevents binding during height adjustment operations.

Maintenance & Longevity Tips

Keep threaded collars clean from concrete splatter after each use. Regular lubrication extends thread life and maintains smooth adjustment capability.

Inspect tubes for dents or bending before deployment. Even minor deformations significantly compromise load-bearing capacity and safety margins.

Store props in dry conditions to prevent premature corrosion. Proper storage protects the galvanized coating and extends operational lifespan.

Replace worn locking pins immediately. The pin's shear strength prevents catastrophic failure under dynamic site loads.

Manufacturing Excellence

Our 79,800-square-meter facility houses specialized production workshops including cold bending, welding, and electrostatic spraying divisions. Four cold roll forming equipment sets and semi-automatic forging lines ensure consistent dimensional accuracy.

The 920-employee workforce includes 180 experienced technicians who oversee production quality. This expertise translates into reliable performance across global construction sites.

Products undergo full-process quality control with real-time tracking systems. Complete traceability ensures accountability from raw materials through finished products.

FAQ

Q：How does extension height affect load capacity?

A：As the inner tube extends, the slenderness ratio increases and Safe Working Load decreases. Always consult our load charts for height-specific ratings to maintain safety margins.

Q：What distinguishes Light Duty from Heavy Duty props?

A：Heavy-duty models feature thicker walls and larger tube diameters. Selection depends on slab thickness and concrete pour height requirements for your specific application.

Q：Can these props function in horizontal applications?

A：While engineered primarily for vertical axial loads, horizontal deployment is possible with proper bracing. A structural engineer should approve any horizontal shoring configuration.

Q：What adjustment mechanism provides the best efficiency?

A：Our threaded collar with integrated handles enables fine-tuned adjustments under load. This eliminates the need for specialized tools during formwork leveling operations.

Q：How many reuse cycles can I expect?

A：With proper maintenance, our product systems deliver 200+ deployment cycles. Regular inspection and cleaning maximize return on investment.

Contact Us

Ready to enhance your formwork support efficiency with steel prop adjustable height? Email us at sdxingruiqp@126.com for technical documentation, load charts, and quotations tailored to your construction requirements.
