steel prop for construction

Steel Prop for Construction - Professional Temporary Shoring Solutions

Shandong Xingrui Building Materials Co., Ltd. delivers industrial-grade steel prop for construction systems engineered for superior structural support. Manufactured from premium Q235 carbon steel with standardized 48×2.0mm and 48×2.5mm pipe diameters, our adjustable props feature telescopic adjustment strokes spanning 1.5-3.5 meters and certified load-bearing capacities reaching 60kN. With a production base covering 79,800 square meters equipped with 12 welding robots and 6 automatic welding lines, we maintain strict ISO 9001, ISO 14001, and ISO 45001 compliance. Our double-sleeve telescopic structure delivers stepless height adjustment and stable vertical support, backed by 180 professional technicians and over 100 global markets served.

What Is Steel Prop for Construction?

The product is a telescopic tubular vertical support system designed to provide temporary structural reinforcement during concrete curing. It consists of an inner tube, outer tube, high-strength adjustment nut, and secure locking pin.

This engineered solution replaces traditional timber shoring by eliminating instability on uneven terrain. You get precise height adjustment and guaranteed load capacities that ensure structural integrity throughout the critical formwork phase.

Modern construction demands reliable, reusable materials. Our props solve critical pain points including high labor costs and safety risks associated with non-standardized support materials.

Technical Specifications

Our product meets rigorous international performance standards:

The Q235 material composition ensures high axial compression strength. Heavy-duty rolled threads maintain structural integrity under cyclical loading better than cut threads.

Key Advantages of Our Steel Props

Superior Load Stability

Our double-sleeve telescopic structure provides exceptional vertical load distribution. The Q235 steel composition delivers consistent performance across varying site conditions.

You benefit from precise stepless height adjustment that accommodates irregular slab heights. This eliminates costly shimming and reduces installation time by up to 40%.

Enhanced Durability & Reusability

Hot-dip galvanizing creates a metallurgical bond protecting against corrosion for over 10 years. This extends service life to 50-80 construction cycles with proper maintenance.

Surface treatments adapt to your environment. Pre-galvanization suits standard projects while HDG coating excels in humid coastal construction zones.

Universal Compatibility

Standard jacks and base plates integrate seamlessly with existing formwork systems. You avoid compatibility issues that delay project timelines.

Custom sizing options accommodate specialized requirements. Our 40,000-square-meter workshop supports batch customization according to your drawings.

Efficient Assembly & Safety

Lightweight design enables single-worker installation without heavy machinery. Quick-lock pins secure height adjustments in seconds, reducing labor costs substantially.

Certified load ratings eliminate guesswork. You comply with safety regulations while maintaining construction schedules.

Primary Applications

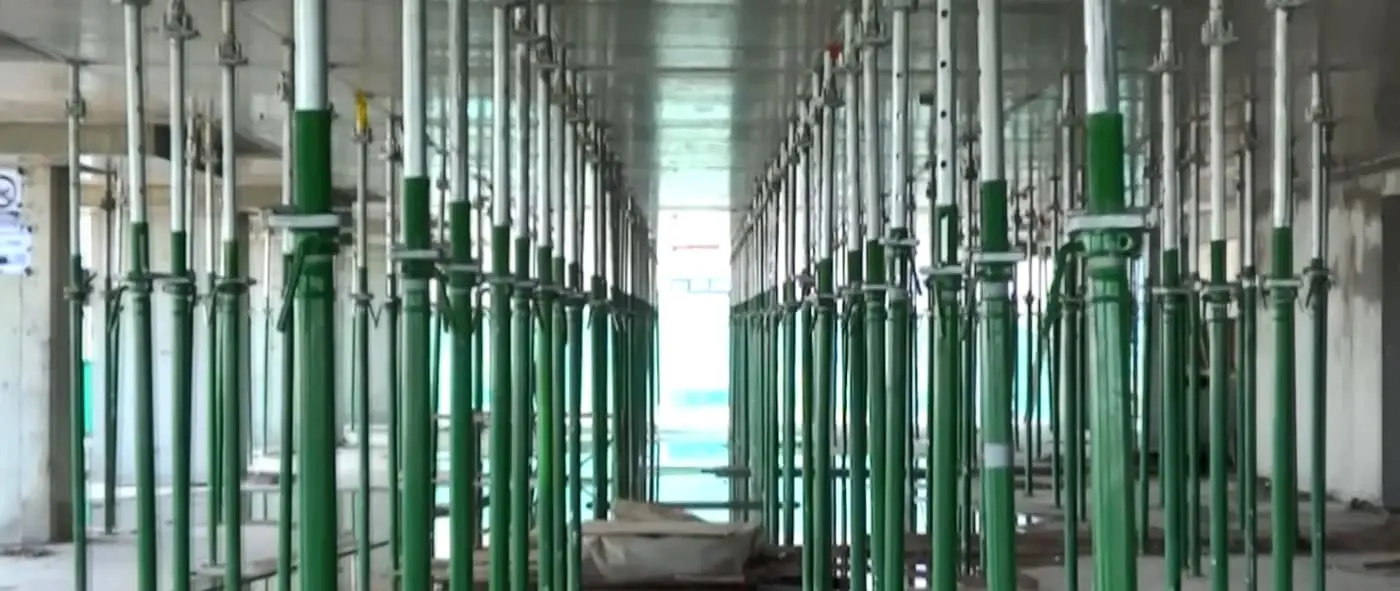

High-Rise Slab Formwork Support

Our steel prop for construction serves as the primary vertical support for multi-story floor slabs. Adjustable height allows precise formwork leveling across varying story elevations.

You achieve uniform concrete thickness and reduced material waste. The 60kN load capacity safely supports standard residential and commercial slab pours.

Structural Renovation Projects

Props function as temporary shoring during load transfer operations. When removing or reinforcing load-bearing walls, they maintain structural stability throughout the intervention.

This "needling" application is critical for aging infrastructure upgrades. You execute renovations without compromising building integrity.

Bridge & Civil Engineering

Heavy-duty applications include trench shoring and beam support in challenging environments. Galvanized props withstand wind, moisture, and temperature fluctuations on exposed sites.

Their lateral stability suits confined spaces where traditional scaffolding cannot fit. You maintain safety standards in complex civil infrastructure projects.

Quality Control Process

Shandong Xingrui implements four-tier quality verification:

Material Verification: Chemical analysis confirms Q235/Q345 steel composition. Tensile strength testing validates raw material performance before fabrication.

Dimensional Inspection: Ultrasonic thickness gauging ensures uniform wall thickness. Precision measurement of thread pitch prevents slippage under operational loads.

Welding Quality Assessment: CO2 shielded welding undergoes penetration inspection. Our automated welding lines eliminate porosity and slag inclusions.

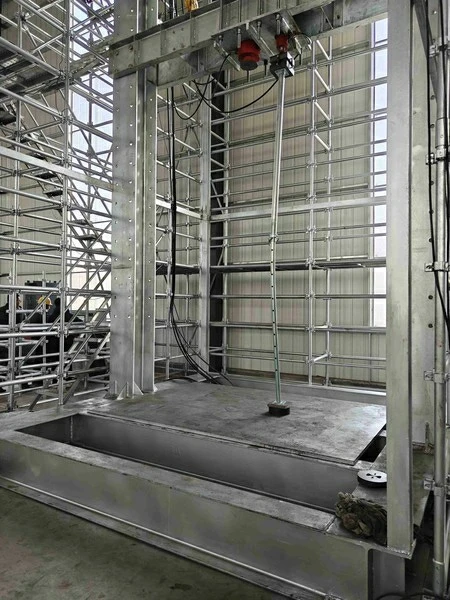

Compression Load Testing: Each batch undergoes failure testing in fully extended positions. This verifies Safe Working Load (SWL) exceeds rated specifications by required safety factors.

Salt spray testing confirms coating durability. Verticality checks ensure zero eccentricity during load application, critical for multi-story construction.

FAQ

Q：How do I select between light-duty and heavy-duty props?

A：Choose heavy-duty props for slab thicknesses exceeding 300mm or support heights over 4 meters. Light-duty models suit standard residential slabs up to 200mm thickness.

Q：What advantage does hot-dip galvanizing provide?

A：HDG creates a metallurgical bond protecting the product internally and externally for 10+ years. Painted finishes offer only cosmetic protection prone to scratching and rust.

Q：Why is the locking pin critical?

A：The pin transfers primary loads between inner and outer tubes. Non-certified pins risk shear failure even with strong tubes. Always use manufacturer-supplied pins.

Q：Can props function as horizontal bracing?

A：While designed for vertical axial loads, they can provide horizontal bracing if lateral forces are calculated by a professional engineer and properly secured.

Q：What is the typical service life?

A：With proper maintenance and HDG coating, expect 50-80 construction cycles. This delivers excellent return on investment compared to single-use timber shoring.

Contact Us

Ready to enhance your formwork operations with steel prop for construction? Contact our technical team at sdxingruiqp@126.com for specifications, samples, and engineering support tailored to your project requirements.
