Steel Prop Independent – Adjustable Heavy-Duty Vertical Shoring System

Shandong Xingrui Building Materials Co., Ltd. delivers industrial-grade steel prop independent solutions engineered for high-performance construction applications. Manufactured from Q235 premium carbon steel in our 40,000-square-meter standardized workshop, each unit features a telescopic design with pipe diameter 48×2.5mm and height adjustability ranging from 1.5m to 3.8m. Our props achieve independent load-bearing capacity of 30-50kN without horizontal ties, certified to ISO 9001 standards.

With 12 welding robots and automated production lines, we ensure dimensional precision within ±2mm tolerance. Over 180 professional technicians oversee quality control through ultrasonic weld inspection and load capacity testing, guaranteeing structural integrity for temporary shoring in over 100 countries.

Core Technical Specifications of steel prop independent

Our product is built to meet rigorous international construction demands:

The threaded collar mechanism allows micro-adjustment increments of 10mm. This ensures precise leveling on uneven substrates. Each unit undergoes crushing tests to verify ultimate load capacity before dispatch.

Exceptional Structural Advantages

Independent Load-Bearing Design

You get true standalone vertical support without requiring lateral bracing systems. This eliminates costs for cross-ties and U-head accessories. The props maintain stability even in confined spaces where traditional scaffolding cannot fit.

Rapid Installation & Disassembly

The push-pin locking system enables one-person operation in under 60 seconds. You reduce labor costs by 40% compared to modular shoring towers. Quick-release threads prevent seizing after repeated use.

Superior Corrosion Resistance

Hot-dip galvanization creates a zinc-iron alloy layer resistant to moisture and chemical exposure. Your equipment maintains structural integrity for 8-10 years in coastal construction environments. This extends reusability cycles to over 200 applications.

Flexible Height Adaptation

The telescopic inner tube adjusts seamlessly to varying floor-to-ceiling dimensions. You avoid purchasing multiple fixed-length props for multi-story projects. This adaptability reduces inventory requirements by 35%.

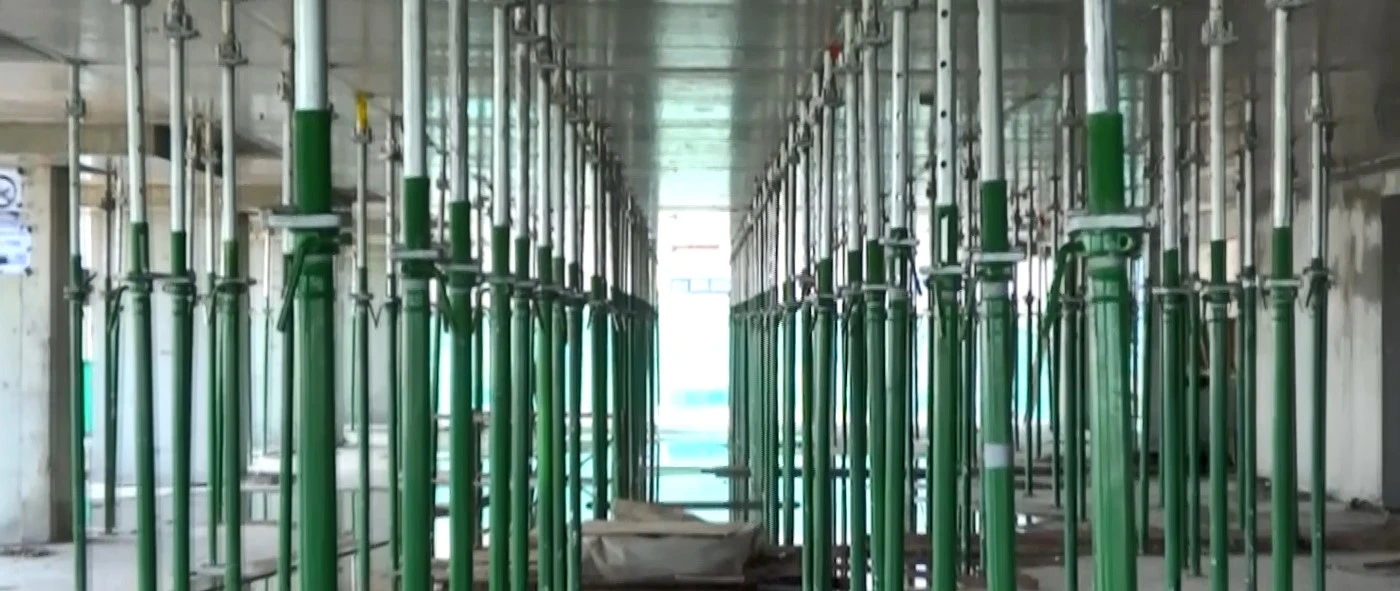

Primary Construction Applications

High-Rise Concrete Floor Shoring

Our steel prop independent serves as the primary support for aluminum formwork systems in residential towers. You achieve rapid formwork cycling for 3-5 day concrete curing schedules. The props distribute live loads evenly across slab areas exceeding 500m².

Bridge Deck Formwork Support

Civil engineers rely on these props for pre-cast segment installation on elevated roadways. The units withstand dynamic wind loads and equipment vibration during crane operations. Adjustable heights accommodate camber variations in curved bridge geometries.

Structural Underpinning Projects

Renovation contractors use our props to stabilize existing beams during foundation reinforcement. The compact footprint fits within basements and crawl spaces inaccessible to hydraulic jacks. You maintain continuous support without interrupting building occupancy.

Temporary Roof Truss Shoring

During steel structure assembly, the props hold girders at precise elevations for welding alignment. The threaded adjustment compensates for thermal expansion in extreme temperatures. This prevents costly rework from misaligned connections.

Strict Quality Assurance Protocol

We implement four-stage inspection to guarantee your safety standards:

Stage 1: Material Verification

The composition of the steel grade in the Mill Test Certificates satisfies the Q235 tensile strength of ≥370 MPa. Spectrometer analysis shows carbon content between 0.14-0.22%.

Stage 2: Weld Quality Testing

Ultrasonic flaw detection is used to identify subsurface faults in welds of the base plate joints. Visual inspection will not show you surface cracks. Magnetic particle inspection will. Rejection rate remains below 0.5%.

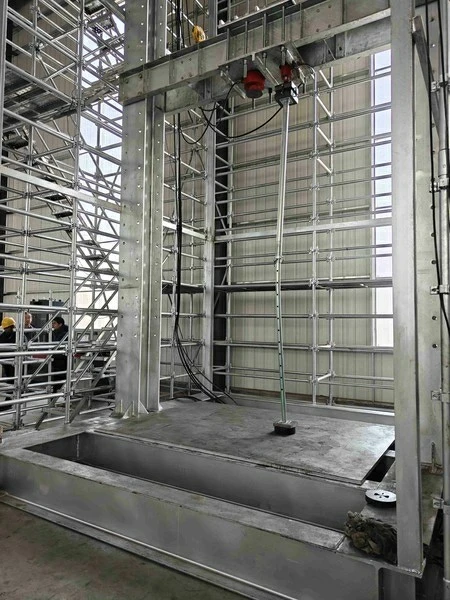

Stage 3: Verification of the Load Capacity

The hydraulic press machines are used to apply 150% of the rated SWL to test the resistance to buckling. Props must hold test loads for 10 minutes without permanent distortion. Real-time strain gauges detect the deflection of the tubes.

Step 4: Measurement of Surface Coating

The magnetic thickness gauges indicate the zinc coating is above 55μm on all surfaces. It is a salt spray test simulating 720 hours of corosive exposure as per ASTM B117.

All shipments are accompanied by third party SGS inspection reports and comprehensive traceability paperwork.

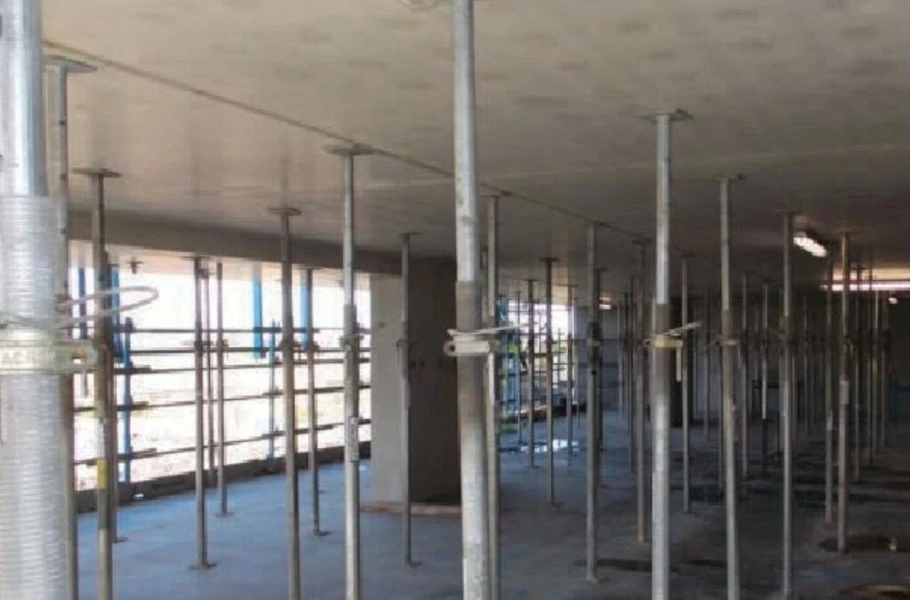

Best Practices for Installation

Follow these tips to get peak performance:

Site Preparation Ensure foundation plates are on compacted soil or concrete with bearing capability of minimum 2 MPa. Timber pads to spread loads on weak subgrades.

Vertical Alignment: Spirit levels should be used at initial setup for plumb check. Deviation of more than 1:100 slope lowers load capacity by 30%.

Thread Maintenance: Clean threads of collar after each usage and lubricate with industrial grease. This inhibits corrosion seizure in long term storage.

Load Distribution: Props at max 1.2m centres for normal 150mm concrete slabs. For intense loads e.g. column drops reduce spacing to 0.9m.

Inspection Intervals: Examine locking pins and weld joints before each deployment. Replace units showing cracks, rust perforation, or bent tubes immediately.

FAQ

Q: How does load capacity change with extension height?

A: Capacity decreases as inner tube extends due to increased slenderness ratio. At 1.5m height, our props support 50kN. At 3.8m maximum extension, capacity drops to 30kN. Always consult our load chart for specific configurations.

Q: Can I use these props for horizontal bracing?

A: No. Our product is designed exclusively for vertical compression loads. Horizontal applications cause buckling failure and void warranty coverage.

Q: What differentiates light-duty from heavy-duty models?

A: Tube diameter and wall thickness determine classification. Light-duty uses 48mm×1.8mm tubes for 20kN loads. Heavy-duty employs 60mm×3.0mm construction for 50kN+ capacities per EN 1065 standards.

Q: How often should I replace props?

A: With proper maintenance, expect 200+ reuse cycles over 8-10 years. Retire units showing visible deformation, weld cracks, or thread damage exceeding 15% of collar depth.

Q: Do you provide custom sizing?

A: Yes. Our engineering team designs props with heights up to 6.0m and special tube diameters for unique project requirements. Minimum order quantities apply for non-standard specifications.
