Scaffold Connecting Pin - Professional Safety Fastener for Scaffolding Systems

Shandong Xingrui Building Materials Co., Ltd. manufactures high-grade scaffold connecting pins engineered from Q235 premium steel, designed for universal compatibility across multiple scaffolding platforms. Our line of products have the shear strength of above 50kN, dimensional precision ±0.2mm, the production capacity is supported by the manufacturing area of 79,800 square meters and 12 welding robots. Each pin is double shear tested and neutral salt spray tested for 72 hours under ISO 9001, ISO 14001 and ISO 45001 quality control systems. Our technical staff of 180 people guarantees that each batch is compliant with worldwide construction safety criteria such as the EN 74-1 and ANSI A10.8 standards.

What Is a Scaffold Connecting Pin?

The product is a vertical joint fastener used to secure scaffolding standards, frames or tubes together, preventing the structure from separating. This safety-grade component offers a tool-free installation using gravity-lock or spring-retained mechanisms, unlike standard bolting methods.

The design tackles major industrial issues such as joint instability under wind loads, uplift problems during crane operations, and lengthy human fastening processes. The pin ties two vertical elements together, ensuring structural continuity across the whole assembly.

Your construction crews can deploy quickly without compromising on safety compliance. The tapered lead-in shape enables simple insertion even while operating at height with gloved hands.

Technical Specifications

Our products range covers ringlock, cuplock, frame, and HK scaffolding systems with full interchangeability:

Custom sizing is available based on your project drawings. All dimensions are verified using automated CMM inspection systems.

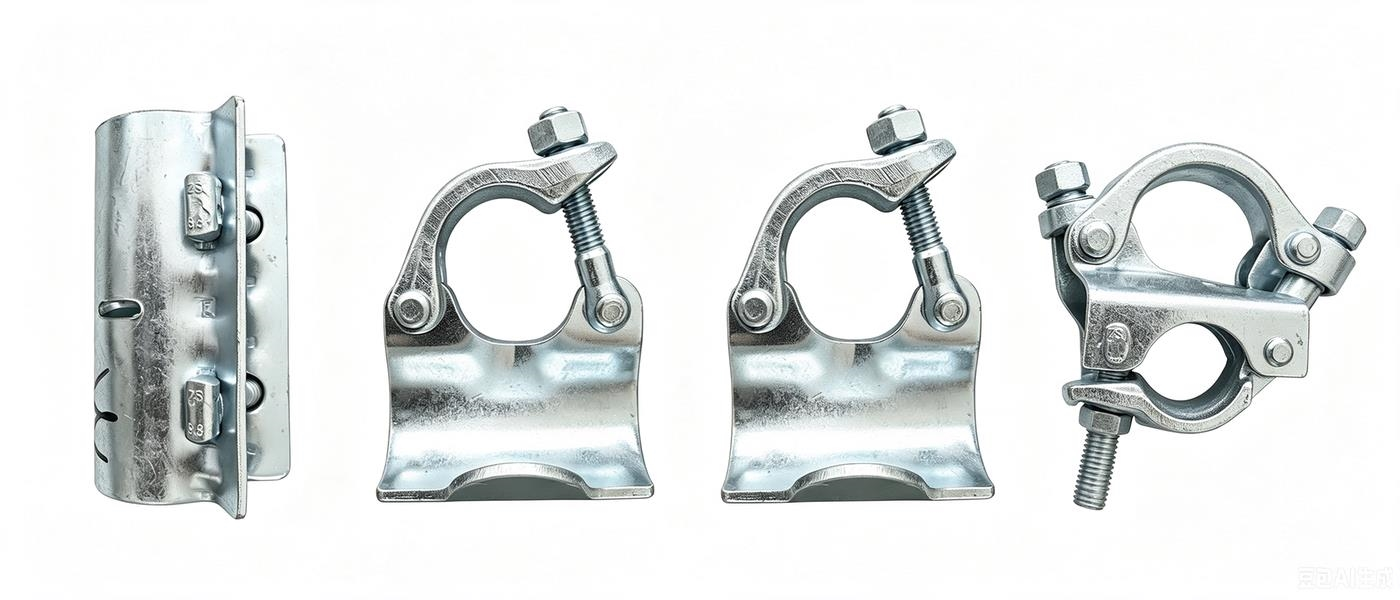

Manufacturing Excellence

Shandong Xingrui operates 5 semi-automatic forging lines and 6 automatic welding lines dedicated to scaffold accessories production. Our cold bending and stamping workshop ensures dimensional consistency across large-volume orders.

There are four quality checks in each batch of manufacturing. Spectrochemical examination validates the correctness of carbon content. Ultrasonic testing may find material faults within that are not evident to the naked eye.

Protective coatings with proven adhesion strength are used in the electrostatic spraying workshop. Real-time traceability systems follow every thermal lot from the arrival of raw materials to the final packing.

We have standardised workshops of 40,000 square meters, buffer inventory for immediate shipping, and assistance for customised specification for particular projects.

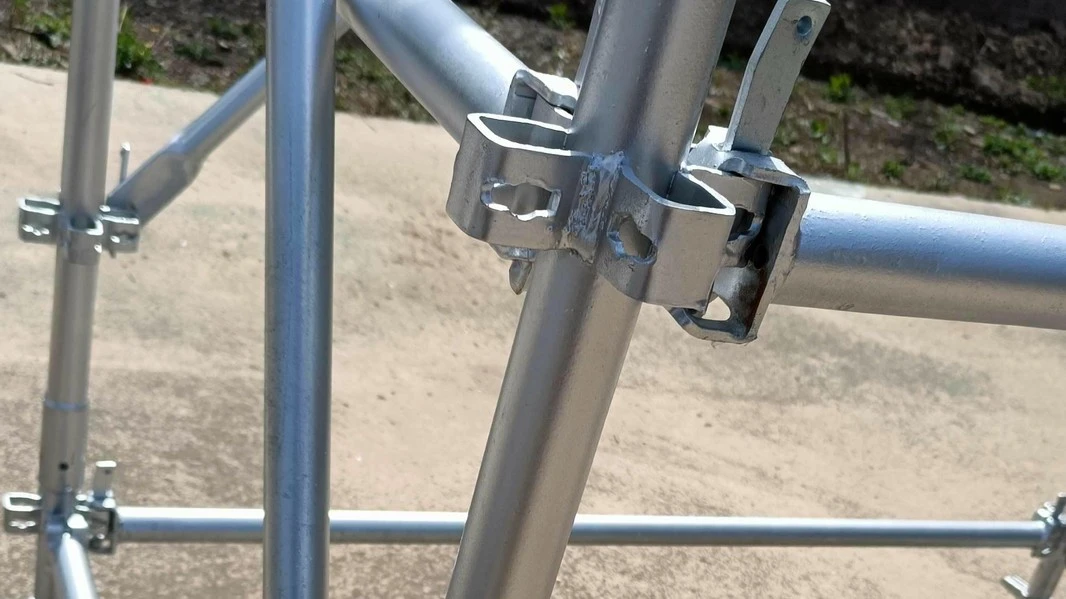

Application Scenarios

High-Rise Building Construction

Your vertical scaffolding systems require reliable connections when structures exceed 30 meters. The scaffold connecting pin maintains joint integrity during multi-stage lifts and prevents disconnection caused by high-velocity wind exposure at elevation.

Offshore and Marine Projects

Salt-air environments demand superior corrosion protection. Our HDG-coated pins serve oil rig maintenance platforms and shipyard scaffolds where premature rust failure creates unacceptable safety risks.

Heavy-Duty Shoring Operations

Bridge falsework and tunnel formwork systems experience immense compressive loads and vibration. The pin's shear resistance ensures shoring towers remain plumb under the weight of poured concrete and dynamic construction equipment movement.

Quality Control Process

We implement rigorous inspection protocols aligned with international safety standards:

Material Integrity Verification

Incoming steel undergoes spectrochemical composition analysis. Ultrasonic testing identifies subsurface defects that compromise load-bearing capacity.

Mechanical Performance Testing

Every production batch faces double shear load testing beyond rated capacity. Only pins demonstrating consistent failure thresholds above 50kN proceed to surface treatment.

Dimensional Accuracy Checks

Go/No-Go gauge systems verify diameter and locking hole alignment. This eliminates fitment issues that delay on-site assembly or create dangerous clearances.

Corrosion Resistance Validation

Neutral salt spray chambers run continuous 72-120 hour exposure cycles. Coating thickness measurements confirm protection layer uniformity across all pin surfaces.

Our complete quality traceability system allows tracking individual pins back to raw material batch certificates and heat treatment records.

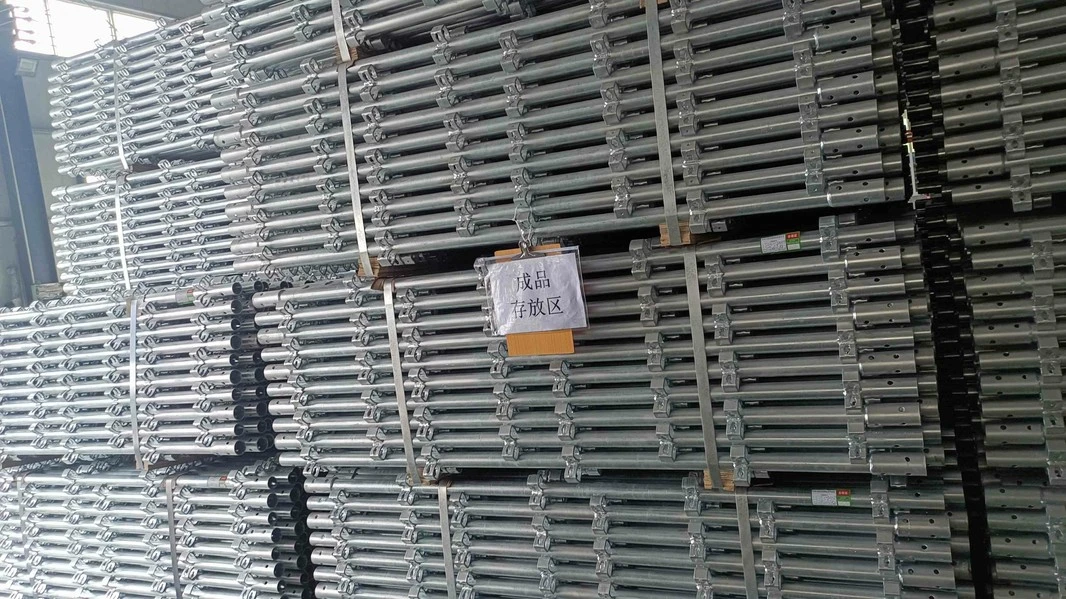

Packaging and Global Delivery

Standard packaging includes bundled quantities with protective wrapping to prevent surface damage during transit. We utilize Rizhao Port's direct shipping routes to over 100 countries across Asia, Europe, Americas, Oceania, and Africa.

Our logistics team coordinates container loading to optimize weight distribution and minimize customs documentation delays. Large-volume orders benefit from our 920-employee production capacity and established supply chain partnerships.

Technical guidance documentation accompanies all shipments. Sample kits are available for pre-project testing and workforce training purposes.

FAQ

Q：Why choose the product over standard bolts?

A：The pin enables gravity-lock insertion without tools, designed specifically for high shear loads rather than tensile stress. This accelerates assembly and disassembly cycles while maintaining structural safety.

Q：How do I identify when replacement is necessary?

A：Retire pins showing permanent bending deformation, deep surface pitting from corrosion, or failed spring mechanisms that no longer engage securely. Visual inspection should occur before each project mobilization.

Q：Does surface finish impact load capacity?

A：No. Protective coatings prevent environmental degradation but do not affect load ratings. Capacity depends on base material grade and heat treatment parameters controlled during manufacturing.

Q：Are pins interchangeable between scaffolding brands?

A：Many follow standard dimensions, but always verify diameter and locking hole alignment. Minor tolerance variations between manufacturers can compromise joint security and create liability exposure.

Q：What function does the gravity flip mechanism serve?

A：This automatic safety lock uses gravitational force to prevent accidental pin withdrawal during vibration or impact events, providing passive protection that requires no operator intervention.

Contact Us

Shandong Xingrui Building Materials Co., Ltd. offers tailored scaffold connecting pin specifications to match your unique scaffolding system requirements. Request samples, quotations, or drawings support at sdxingruiqp@126.com today.
