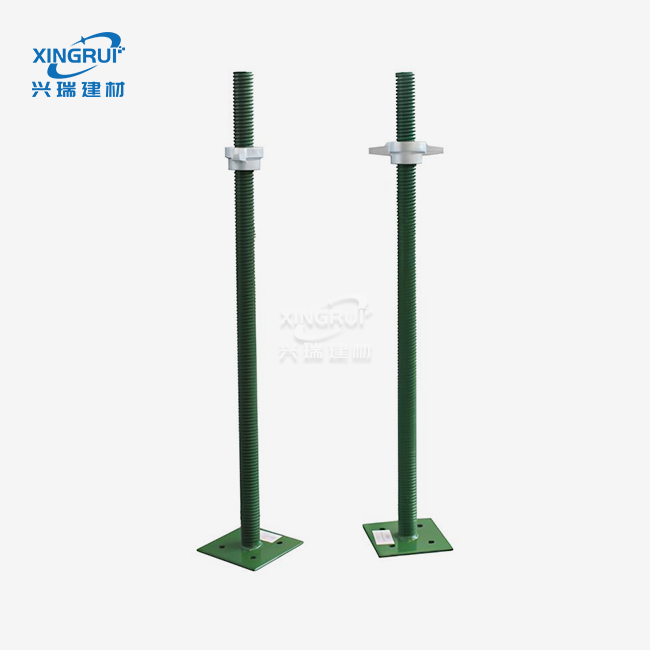

Scaffold Base Plate

Scaffold Base Plate: Heavy-Duty Foundation Solution for Construction Scaffolding Systems

Shandong Xingrui Building Materials Co., Ltd. manufactures industrial-grade Scaffold Base Plate products using Q235 premium steel with a load-bearing capacity designed to disperse concentrated vertical loads across a 150×150mm contact surface. We have a production base in Rizhao with an area of 79800m2, which was established in 2007. We have 12 welding robots and 6 automatic welding lines for manufacture adjustable cast iron bases with screw stroke of 300mm, which are suitable for 48mm and 60mm uprights. We provide ISO 9001 quality standards, with every plate inspected for ±0.2mm dimensional tolerances and ultrasonic testing to verify weld integrity, providing structural stability for high rise building and heavy duty shoring.

Technical Specifications

How Scaffold Base Plates Solve Critical Construction Challenges

Your construction projects demand reliable foundation components that prevent structural instability and compliance violations. Our Scaffold Base Plate addresses three core industry pain points.

First, the enlarged contact area distributes point loads over a broader surface, preventing localized soil failure on soft terrain. When scaffolding standards concentrate thousands of kilograms onto a small footprint, standard bases cause dangerous settlement. Our 150×150mm plates reduce ground pressure by spreading loads evenly.

Second, the adjustable design with 300mm screw stroke enables precise leveling on uneven surfaces. Sites rarely offer perfectly flat terrain. This vertical adjustment ensures your scaffold maintains plumbness even on slopes up to 5 degrees, complying with OSHA and EN 74 safety regulations.

Third, anti-slip surface treatment protects finished concrete floors during interior work. The textured bottom prevents lateral movement while the durable steel construction withstands repeated repositioning across multiple projects.

Quality Control Protocol

We implement a five-stage inspection system to guarantee every unit meets international construction standards.

Material analysis begins with spectroscopic testing of carbon and manganese content to verify ductility and tensile strength. Our purchasing team sources only certified Q235 steel with documented mill test certificates.

Weld integrity receives ultrasonic examination to detect subsurface defects. The spigot-to-plate fusion point undergoes dye penetrant testing, ensuring no separation occurs under dynamic loading or vibration from adjacent construction activities.

Dimensional accuracy checks confirm flatness within 0.2mm tolerance using calibrated gauge blocks. Any cupping or warping triggers immediate rejection, as deformed plates compromise load distribution.

Galvanization thickness verification uses magnetic coating gauges to measure zinc layers. Our hot-dip process achieves 40-60 micron protection, exceeding the minimum requirements for 10-year outdoor exposure in coastal environments.

Load compression testing subjects random samples to 1.5x rated capacity. Plates showing permanent deformation below this threshold are removed from production batches.

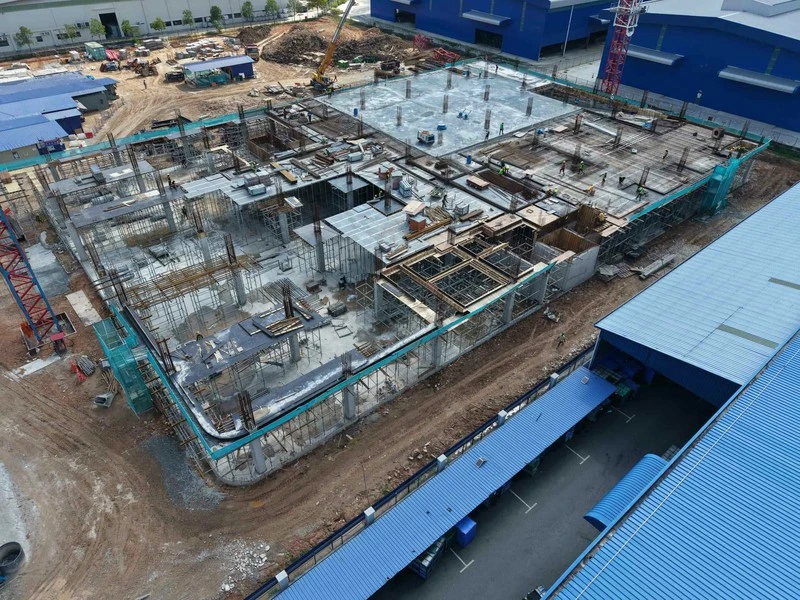

Industrial Application Scenarios

Your project type determines the optimal Scaffold Base Plate configuration. Three primary applications demonstrate the versatility of our foundation components.

High-Rise Construction: Metropolitan building projects require protecting finished concrete slabs while supporting massive facade scaffolding. Our fixed-type plates distribute vertical loads across reinforced floors without causing surface damage. The 50kN capacity handles multi-story access requirements.

Industrial Maintenance: Refineries and chemical plants present uneven working surfaces around piping systems. Swivel-type plates with adjustable stems maintain scaffold verticality on slopes, ensuring worker safety near high-temperature equipment. The rotation mechanism accommodates terrain variations without compromising structural integrity.

Infrastructure Projects: Bridge construction and roadwork demand heavy-duty shoring on compacted soil. Pairing our 8mm thick plates with timber mudsills prevents subsidence when supporting wet concrete formwork. The anti-settlement design maintains stability throughout the curing process.

Manufacturing Advantages

Our Rizhao facility combines automated production with skilled craftsmanship. Twelve welding robots ensure consistent fusion quality across every spigot joint, while 180 professional technicians monitor process parameters in real-time.

The cold roll forming equipment produces perfectly flat plates without residual stress. This precision manufacturing eliminates the micro-deformations that compromise load distribution in poorly made alternatives.

Our electrostatic spraying workshop applies corrosion protection uniformly, coating even the underside edges that competitors often miss. This attention to detail extends service life in harsh environments.

Six automatic welding lines enable production scalability. Whether you need 500 units or 50,000, our capacity supports project timelines without sacrificing quality control procedures.

FAQ

Q: When should I choose a swivel plate over a fixed design?

A: Select swivel models when ground slopes exceed 5 degrees. The rotating base keeps the screw jack vertical while the plate conforms to terrain angles, maintaining proper load alignment.

Q: Do I need mudsills under these plates?

A: Yes, OSHA guidelines require timber mudsills when working on soil or asphalt. The wooden base further distributes pressure and prevents the plate from cutting into soft surfaces.

Q: How do I identify substandard products?

A: Inspect weld quality, checking for brittle or incomplete fusion. Verify manufacturer markings are present. Test galvanization with a magnet—proper zinc coating shows specific thickness. Avoid plates with visible rust on supposedly treated surfaces.

Q: Can I reuse plates showing slight bending?

A: Never reuse deformed plates. Any permanent cupping indicates the steel exceeded its yield strength. Continued use risks catastrophic structural failure. Replace compromised units immediately.

Q: What certifications validate quality claims?

A: Request ISO 9001 documentation and material test certificates. Legitimate manufacturers provide third-party verification of steel grade and load testing results for each production batch.

Contact Us

Ready to secure your scaffolding foundation with Scaffold Base Plate? Our technical team provides customized specifications based on your project requirements. Email us at sdxingruiqp@126.com for product samples, quotations, and engineering support.
