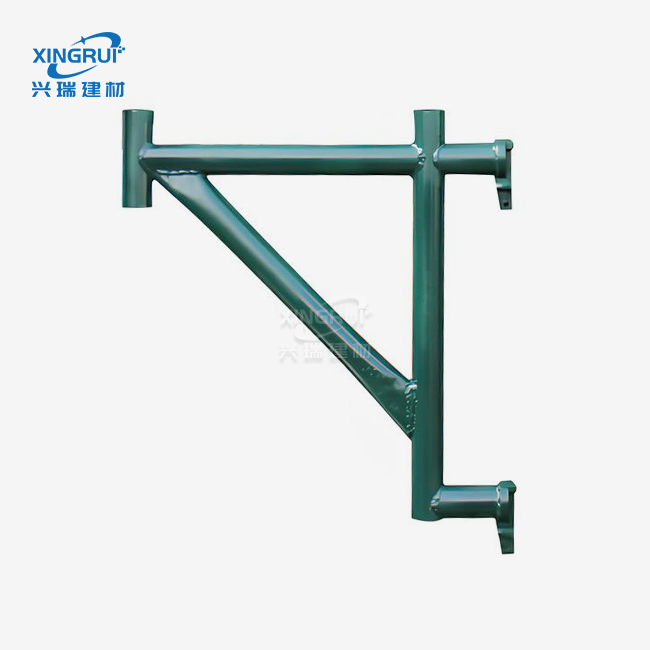

Scaffold Triangle Bracket - Professional Load-Bearing Solution for Construction Projects

Shandong Xingrui Building Materials Co., Ltd. manufactures high-performance scaffold triangle brackets engineered from Q235 premium steel for critical load-bearing applications. Our right-angled triangle support frames are strong, with a single frame load capability of 20kN, and are ideal for reinforcing edges of formwork and temporary diagonal bracing. We have a manufacturing base of 79,800 square meters, equipped with 12 welding robots and 6 automated welding lines to assure the welding quality and dimensional correctness of each product. Our product systems are certified to ISO 9001, ISO 14001 and CE standards and are hot-dip galvanised for corrosion protection. Each bracket is ultrasonically weld tested and static load validated for structural stability under harsh site circumstances.

How Scaffold Triangle Brackets Solve Construction Challenges

You face constant pressure to maximize workspace efficiency while maintaining structural safety. The product addresses three critical pain points in modern construction.

First, it creates cantilevered platforms where ground support is impossible. Urban projects often restrict footprint access due to pedestrian zones or utility conflicts. Our triangular geometry transfers loads efficiently back to vertical standards, allowing you to extend working decks outward without additional ground-level footings.

Second, it provides rapid reinforcement for formwork systems. During concrete pours, lateral pressure threatens formwork stability. The right-angle design distributes stress evenly across the support frame, preventing displacement while keeping your schedule on track.

Third, it reduces labor costs through single-person installation. Unlike heavy auxiliary towers, each unit weighs just enough for manual handling yet supports substantial loads once secured to scaffolding tubes.

Technical Specifications

Structural Advantages for Professional Applications

Your projects demand components that perform under stress without compromise. Our triangular brackets feature precision-welded joints tested via magnetic particle inspection to verify full weld penetration.

The 45-degree geometry inherently resists bending moments better than linear extensions. When you attach these brackets to cuplock or ringlock systems, the triangulated load path minimizes deflection even under dynamic work conditions.

Hot-dip galvanization adds a zinc coating layer that protects against chloride exposure in coastal environments. You can reuse these brackets across multiple projects without structural degradation, lowering your cost per deployment cycle.

Fast assembly matters when weather windows are tight. Each bracket secures to vertical standards using standard couplers or wedge heads, requiring no specialized tools. Your crew can reposition platforms quickly as work zones shift.

Versatile Application Scenarios

You'll find scaffold triangle bracket​ essential across diverse construction environments. In high-rise facade work, they create safe walkways for cladding installation when sidewalk clearance must remain unobstructed below.

Industrial maintenance teams rely on them for 360-degree access around tanks and boilers. The triangular configuration maintains stability even when anchored to curved surfaces or irregular vessel geometries.

Bridge rehabilitation projects use our brackets extensively for soffit repairs. When you need to reach underside concrete in high-wind conditions, the rigid triangulation provides a stable work platform where vertical poles cannot be placed.

Formwork contractors deploy them as temporary shoring props during slab pours. The balanced stress distribution prevents lateral movement when concrete hydrostatic pressure peaks, ensuring form alignment accuracy.

Quality Assurance Process

Every bracket leaving our 40,000-square-meter workshop passes through multiple validation stages. Automated welding lines ensure consistent joint quality, while robotic systems eliminate human error in critical weld zones.

We perform static hydraulic press tests on sample batches to verify a 3:1 safety factor before deformation. Digital coating gauges measure galvanization thickness to confirm corrosion protection meets international standards.

Dimensional checks verify that hook alignment achieves zero-play fit with standard scaffolding tubes. This precision prevents wobbling under load and extends component lifespan by reducing wear points.

Our quality traceability system tracks raw material origins through finished product shipment. If you need mill test certificates or load test reports for regulatory compliance, we provide complete documentation with every order.

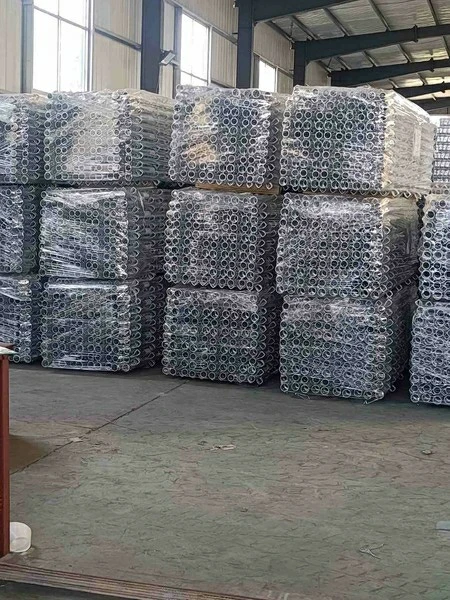

We bundle brackets in steel strapping for container shipment, protecting galvanized surfaces during transit. Our Rizhao location provides direct access to international seaport facilities, streamlining export logistics to over 100 countries across Asia, Europe, Americas, and Africa.

Large orders benefit from our 920-employee production capacity and automated manufacturing lines. We maintain stable lead times even during peak construction seasons, ensuring your project timelines stay intact.

FAQ

Q：What maximum projection distance do these brackets support?

A：Standard configurations safely extend 1.2 to 1.5 meters from vertical standards when properly braced. Consult our engineering team for site-specific calculations based on load requirements and wind exposure.

Q：Can I integrate these with existing scaffolding systems?

A：Our brackets fit 48.3mm outer diameter tubes used in ringlock, cuplock, and tube-and-clamp systems. We also offer custom connection heads to match proprietary scaffold designs when you provide specifications.

Q：How often should brackets undergo inspection in harsh environments?

A：Weekly visual checks for corrosion or deformation are mandatory in coastal or industrial chemical zones. We recommend detailed structural audits every six months to verify load-bearing integrity remains within safe parameters.

Q：Do you provide technical guidance for installation?

A：Yes, our 180-person technical team offers on-site training and detailed installation manuals. We assist with load calculations and tie-off configurations to ensure compliance with local safety regulations.

Q：What customization options are available?

A：We manufacture brackets to your exact dimensions and load ratings. Submit engineering drawings for quotation—our cold bending and welding workshops accommodate both small-batch prototypes and large-scale production runs.

Contact Us

Our scaffold triangle bracket systems deliver the structural reliability and cost efficiency your projects demand. Request samples or technical specifications today at sdxingruiqp@126.com to discuss your specific requirements.
