X-Type Cross Brace

X-Type Cross Brace - Professional Scaffolding Stabilization Solution

Shandong Xingrui Building Materials Co., Ltd. manufactures industrial-grade X-Type Cross Brace components engineered from Q235 premium steel with bidirectional reinforcement architecture. Our cross bracing system integrates seamlessly with 914mm standard door frames, featuring quick-lock terminals at both ends for rapid installation. With a production capacity supported by 12 welding robots and 6 automatic welding lines across our 40,000-square-meter facility, we deliver reusable stabilization accessories that meet ISO 9001 and ISO 14001 certification standards. Each product undergoes real-time quality tracking through our complete traceability system, ensuring consistent performance across our 1,000+ accessory specifications exported to over 100 countries.

What Is X-Type Cross Brace and Why It Matters

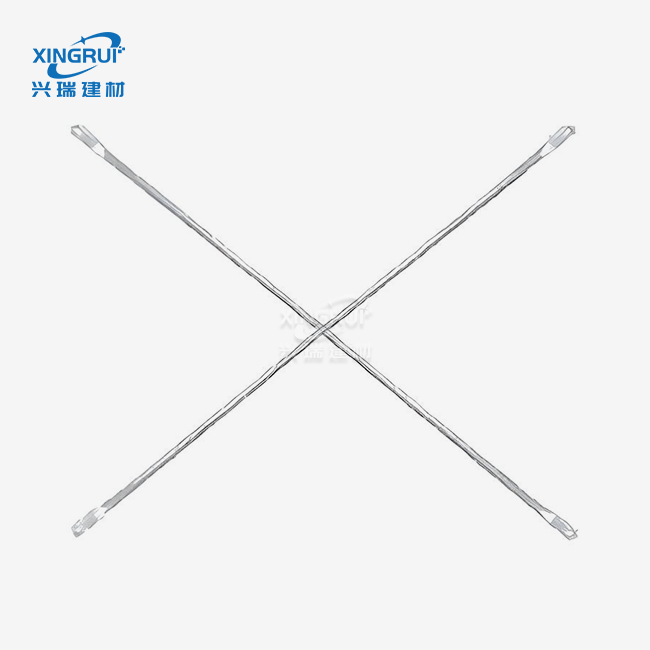

The product consists of two intersecting diagonal members secured at a central pivot point. This configuration transforms lateral forces into axial tension and compression.

Your scaffolding frames face constant threats from wind loads and uneven weight distribution. The cross-reinforcement structure prevents lateral displacement that causes frame swaying during high-altitude operations.

Unlike traditional bolt-and-nut diagonal bracing, this design uses gravity-pin mechanisms for tool-free assembly. You save installation time while maintaining perfectly square geometry under high-stress conditions.

Technical Specifications

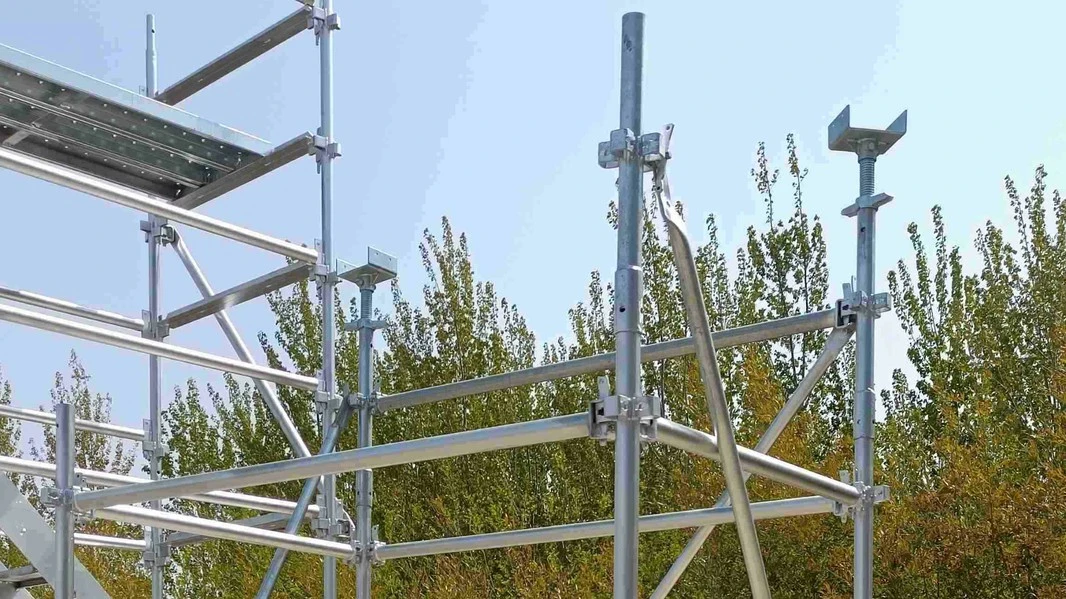

Core Structural Properties

Our X-Type Cross Brace delivers measurable safety improvements through three engineering principles.

The cross-shaped diagonal configuration restricts lateral overturning by distributing shear forces across two load paths. This redundancy increases your frame's safety factor during extreme weather events.

Q235 steel construction provides tensile strength exceeding 370 MPa. The material withstands repetitive loading cycles without deformation, making it suitable for reusable scaffolding applications.

Hot-dip galvanized coating penetrates tube interiors and exteriors. You get comprehensive rust protection that maintains structural integrity in coastal or high-humidity environments.

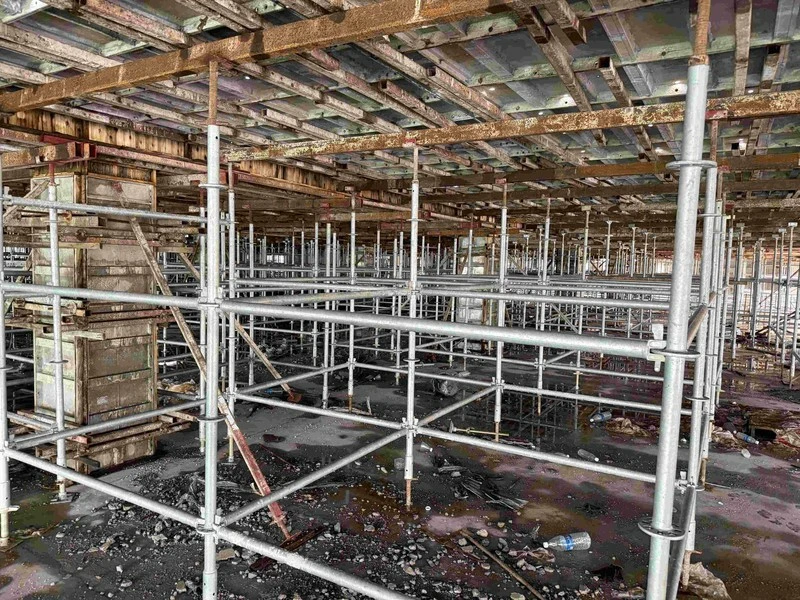

Primary Application Scenarios

Door-type scaffolding systems benefit most from this stabilization accessory. When you stack vertical frames beyond 12 meters, the cross bracing prevents catastrophic collapse from lateral drift.

Industrial masonry projects require rigid frameworks that resist wind-induced oscillation. The X-pattern design keeps your working platform stable even at extreme heights where wind speeds increase.

Temporary structures like event staging demand rapid assembly without compromising load capacity. Our quick-lock mechanism lets your crew secure cross braces in seconds, reducing setup time for modular platforms.

Quality Assurance Process

Every X-Type Cross Brace passes through four quality checkpoints before shipment.

Our welding robots perform ultrasonic testing on central pivot points. This identifies porosity defects that could compromise shear load capacity under stress.

Dimensional precision maintains pin-to-pin distance tolerances within ±0.5mm. You achieve universal compatibility with vertical frames from different production batches.

Load testing applies axial tension until material failure. We verify that our braces exceed industry safety margins by 25% minimum.

Magnetic gauge instruments measure zinc coating thickness. Your components receive 60-80 microns of galvanized protection as standard, meeting BS EN 12811-1 requirements.

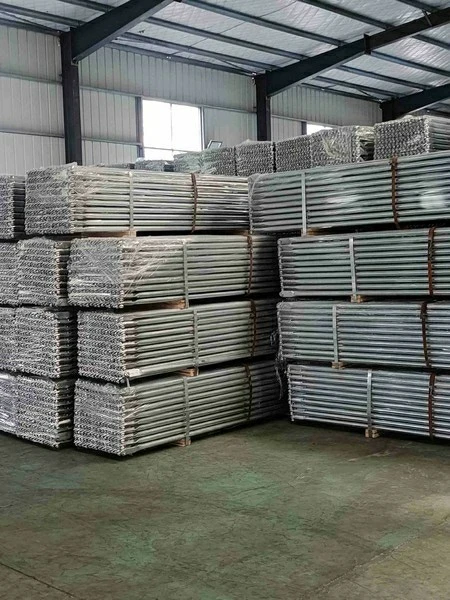

Packaging and Global Delivery

We bundle cross braces in steel crates with foam separators to prevent transit damage. Our Rizhao location provides direct access to international seaports and integrated logistics networks.

Standard export packaging includes moisture-proof wrapping and corner guards. You receive products ready for immediate deployment upon arrival at your construction site.

FAQ

Q：How do I select the correct brace length for my frames?

A：Measure the vertical height and horizontal width between frame pin holes. Standard 914mm door frames require braces calculated using the Pythagorean theorem for that specific geometry.

Q：Can I straighten and reuse a bent cross brace?

A：No. Any visible deformation indicates compromised structural integrity. Safety protocols require immediate replacement to prevent load-bearing failure during operation.

Q：What causes the central rivet to fail?

A：The pivot point absorbs maximum shear stress during lateral shifting. We use Grade 8.8 high-tensile rivets specifically engineered to withstand forces exceeding 25kN.

Q：Is hot-dip galvanizing necessary for indoor projects?

A：While not mandatory indoors, the coating provides long-term value. It protects against moisture from concrete curing and accidental exposure to weather during storage.

Q：Do you offer custom specifications?

A：Yes. Our technical team produces cross braces according to your drawings and samples. Minimum order quantities apply for non-standard dimensions.

Contact Us

Get professional guidance on scaffolding stabilization solutions like X-Type Cross Brace​ tailored to your project requirements. Our 180-strong technical team provides specification assistance and custom manufacturing support. Reach us at sdxingruiqp@126.com for samples and detailed consultation.
