Square Base Plate

Cast Iron Square Base Plate for Scaffolding and Shoring Systems

Shandong Xingrui Building Materials Co., Ltd. manufactures industrial-grade cast iron Square Base Plate designed specifically for scaffolding and steel prop applications. This basic element has dimensions of 120×120×10mm and has a central aperture for 48 mm steel pipes. The plate is able to handle load of more than 80kN and guarantees an equal distribution of stress for contact surfaces. This prevents settling of foundations and enhances stability on site. All our products are manufactured at our 79800 square metre plant with state of the art steel casting operations and quality regulated forging lines. Each item is produced under strict ISO 9001 inspection standards to guarantee reliable performance under the most severe conditions in construction.

What Makes Our Cast Iron Base Plate Essential for Your Project

The product is the crucial link between vertical support systems and ground surfaces. Its large footprint spreads the concentrated loads from scaffolding towers and adjustable props over a wider surface area, therefore lowering the bearing strain on concrete slabs and soil substrates.

The plate is cast from high density cast iron in one piece, thus avoiding the weak joints of welded designs. Dimensions of 120mm x 120mm give excellent coverage and mobility for manual handling during installation.

The central hole is precision-machined to minimum clearance to accept standard 48mm diameter scaffolding tubing. The close fit inhibits rotation and lateral movement under dynamic building stresses.

Technical Specifications of Square Base Plate

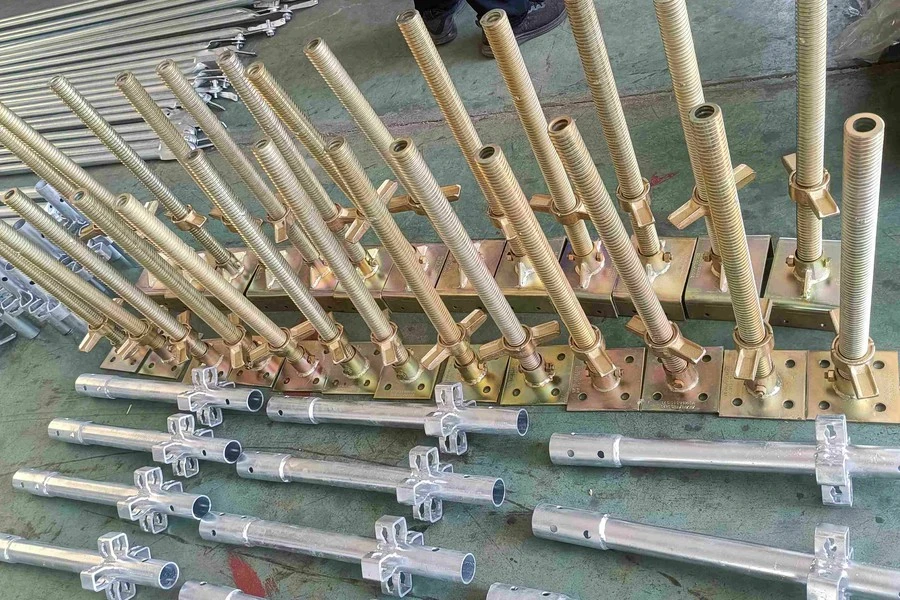

Superior Performance Through Material Selection

Cast iron construction delivers unmatched compressive strength for heavy vertical loads. Unlike stamped steel alternatives that may deform under sustained pressure, our integrally cast plates maintain dimensional stability throughout repeated use cycles.

The material's inherent damping properties absorb vibrations from construction activities. This reduces stress concentration points that could compromise adjacent structural elements.

Surface texture molded into the casting process creates a natural anti-slip interface. The raised pattern increases friction coefficients with both ground surfaces and the base of support tubes, maintaining alignment on inclined or uneven terrain.

Engineered for Multi-Project Reusability

Your investment in quality base plates pays dividends across multiple job sites. The robust cast iron composition resists surface wear from dragging, dropping, and exposure to jobsite debris.

The 10mm thickness provides structural rigidity without excessive weight. This balance allows manual handling by two workers while preventing flexural deformation when supporting maximum rated loads.

Our plates withstand repeated assembly and disassembly cycles without material fatigue. The absence of weld seams eliminates common failure points, extending operational lifespan beyond stamped or fabricated alternatives.

Load Distribution Mechanics

Vertical forces from scaffolding towers concentrate at pipe-to-ground contact points. Without proper distribution components, these concentrated loads exceed the bearing capacity of most soil and concrete substrates, causing localized settling.

The Square Base Plate transforms point loads into distributed surface pressure. The 14,400mm² contact area reduces bearing stress by a factor proportional to the increased footprint versus pipe diameter alone.

This mechanical advantage prevents the sinking of support legs during construction operations. Stable foundations maintain scaffold plumbness and reduce the need for constant adjustment and releveling.

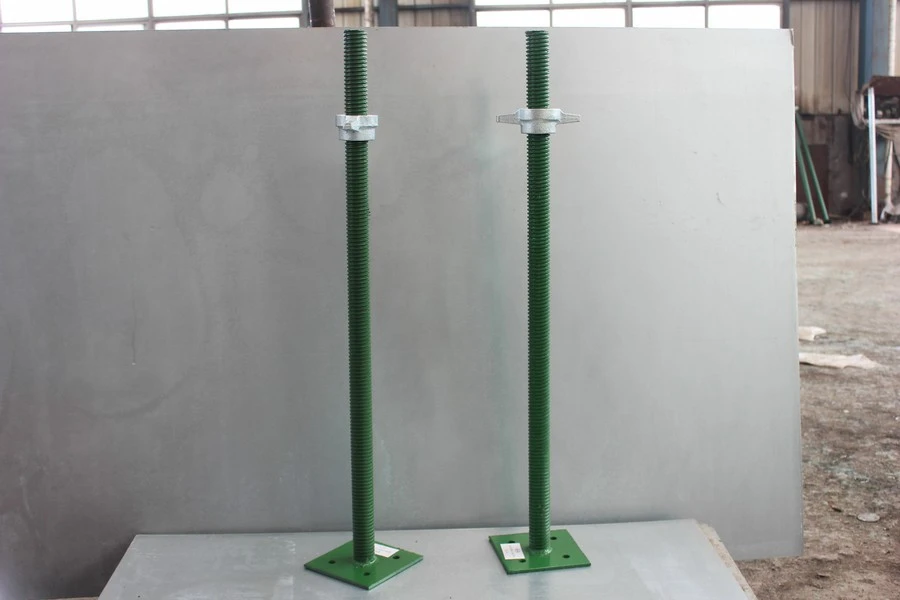

Compatibility with Standard Scaffolding Systems

The 48mm center hole dimension aligns with internationally standardized tube diameters used in ringlock, cuplock, and frame scaffolding systems. This universal compatibility simplifies inventory management for contractors working with diverse equipment fleets.

Shandong Xingrui's manufacturing precision ensures consistent hole diameter across production batches. You'll experience seamless fit during assembly without the binding or excessive play that complicates installation with poorly manufactured alternatives.

Our production capacity supports large-volume orders with stable lead times. Whether you need 500 units for a single high-rise project or ongoing supply contracts for regional operations, our 920-person workforce and automated casting lines deliver on schedule.

Quality Assurance and Certification

Every batch undergoes dimensional verification using coordinate measurement protocols. Load testing confirms bearing capacity meets or exceeds the specified 80kN threshold before shipment approval.

Our ISO 9001 and ISO 14001 certified manufacturing processes ensure consistent material properties and environmental responsibility. Complete traceability systems track raw material sources through finished product delivery.

We provide sample units for your evaluation before full-order commitment. Technical support teams remain available to address installation questions or application-specific requirements throughout your project lifecycle.

FAQ

Q：What is the actual safety factor built into the 80kN rating?

A：The 80kN specification represents working load limit with built-in safety margins per standard engineering practice. Actual failure loads exceed this threshold, but we recommend adhering to rated capacities for personnel safety.

Q：Can these plates be used on soft soil conditions?

A：For unstable ground, pair the product with larger timber mud sills or concrete pads to further distribute loads. The plate serves as the interface between steel components and your chosen ground stabilization method.

Q：How does cast iron perform in cold weather environments?

A：Cast iron maintains structural integrity across temperature ranges typical in construction applications. Unlike some alloy steels, it does not experience ductile-to-brittle transition at moderate subzero temperatures.

Q：Are replacement quantities available for damaged units?

A：Yes, we maintain inventory for rapid fulfillment of replacement orders. Contact our export team with your requirements for expedited processing.

Q：What surface preparation is needed before use?

A：Plates ship ready for immediate deployment. Remove any protective packaging and verify the center hole is free from shipping debris before installing onto scaffold tubes.

Contact Us

Ready to enhance your scaffolding stability with proven foundation components like Square Base Plate? Our export specialists provide quotations, technical documentation, and logistics coordination for projects worldwide.
