Scaffold Connecting Sleeve

Scaffold Connecting Sleeve - Professional Extension Solution for Scaffolding Systems

Shandong Xingrui Building Materials Co., Ltd. manufactures precision-engineered Scaffold Connecting Sleeve using Q235 premium steel, designed specifically for secure vertical extension of scaffolding uprights. Seamless steel pipe sleeve with inner diameter 49mm, length 200mm and wall thickness 3.0mm with good concentricity and excellent strength. Every connecting sleeve is manufactured in our standardised 40,000 square metre factory with 12 welding robots and modern cold roll forming equipment and undergoes rigorous quality testing to fulfil ISO 9001, ISO 14001 and CE certification requirements. We have 920 workers, including 180 skilled technicians, and we produce quality safety accessories which are supplied to over 100 countries globally.

Core Technical Properties of Scaffold Connecting Sleeve

Your building projects need connecting components that stay intact under tremendous stress. Our product has outstanding mechanical performance because of precise manufacture.

The sleeve acts as an exterior shroud around the scaffold tubes, forming a stiff bridge which can carry compressive loads and withstand lateral pressures. This external coupling design is helpful to avoid joint eccentricity, a significant problem where misaligned tubes reduce load-bearing capacity.

It is manufactured from high strength Q235 carbon steel and provides exceptional tensile strength far beyond international safety standards. Hot-dip galvanising produces a corrosion-resistant protective layer that extends service life in humid and salty conditions.

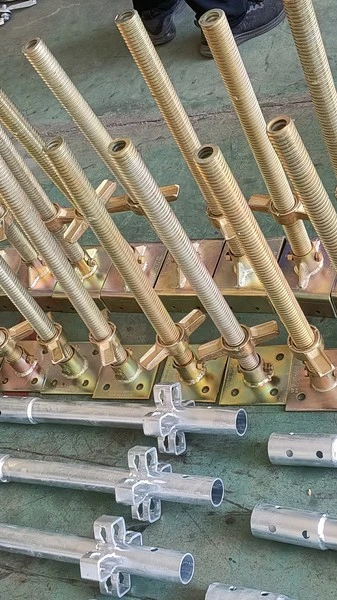

Advanced Manufacturing Process

You benefit from our integrated production capabilities that guarantee consistent quality. Our specialized cold bending and stamping workshop processes seamless steel pipes with dimensional accuracy verified by go/no-go gauges.

Automated welding lines equipped with robotic technology ensure uniform seam integrity. Each unit undergoes magnetic particle inspection to detect internal defects before surface treatment.

The electrostatic spraying workshop applies zinc coating with thickness verified by electromagnetic induction meters. This process complies with ISO 1461 standards, protecting against oxidation in harsh job site conditions.

Precision-Engineered Safety Features

Your scaffolding system requires reliable connections that prevent catastrophic failures. Our connecting sleeve incorporates anti-drop pin compatibility to avoid dislocation and slipping during assembly.

The internal design features a central stop mechanism ensuring both tubes insert to correct depth. This maintains geometric integrity and ensures coaxial stress distribution across the joint.

High slip resistance is achieved through precision-machined internal surfaces that create friction grip on standard 48.3mm scaffold tubes. Bolt holes are positioned for optimal torque application, typically 50Nm, securing the connection without compromising tube walls.

The tight-fit design delivers high concentricity, critical for maintaining vertical alignment in multi-story applications. This engineering approach enhances frame stiffness, making the sleeve essential for extra-long upright extensions in high formwork scenarios.

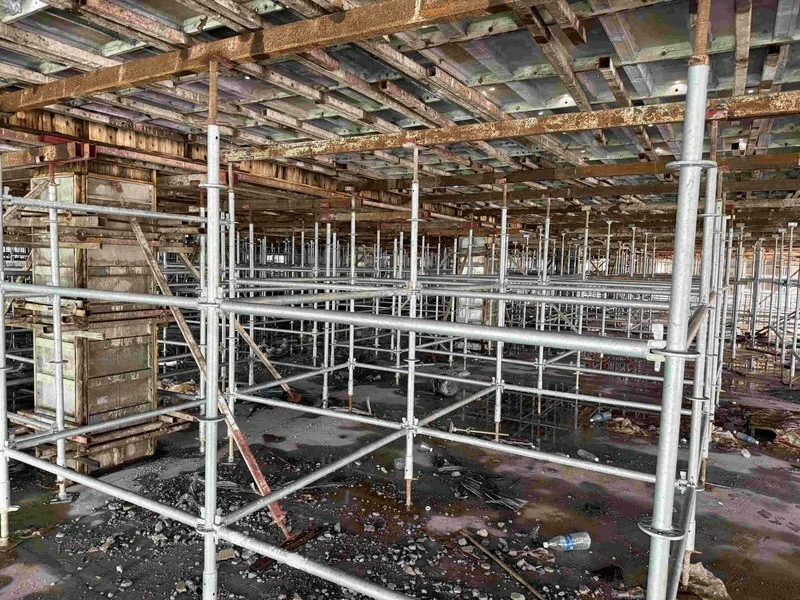

Diverse Application Scenarios

Your projects span various challenging environments requiring adaptable solutions. High-rise construction sites utilize our sleeves in heavy-duty load-bearing towers where vertical standards extend to extreme heights.

Marine and offshore engineering benefits from HDG-coated versions on temporary maintenance platforms. The corrosion-resistant coating withstands salt-heavy atmospheres on oil rigs where joint integrity directly impacts worker safety.

Industrial chimney and bridge maintenance operations deploy these components in high-wind zones. The rigid external coupling provides necessary vibration resistance at joints, ensuring stability for unconventional scaffolding configurations.

Reusable and customizable to your specifications, the Scaffold Connecting Sleeve supports both rental operations and project-specific requirements. Sample supply and technical assistance are available to help you evaluate performance before large-scale deployment.

Quality Assurance System

You receive components backed by comprehensive quality control protocols. Our full-process tracking system monitors raw materials from supplier certification through finished product testing.

Dimensional accuracy verification includes internal diameter measurements ensuring snug fit tolerances. Mechanical testing encompasses slip resistance and failure load assessments per EN74-1 standards, confirming kilonewton ratings without displacement.

Material integrity checks use ultrasonic testing on premium forged batches. Surface coating analysis verifies zinc thickness compliance, guaranteeing long-term protection specifications.

Each production batch maintains complete traceability documentation. This systematic approach reflects our "People-oriented, Scientific Management, Integrity First" quality policy, providing you with reliable performance data.

FAQ

Q：Can your product be reused across multiple projects?

A：Yes, our sleeves are designed for multiple deployment cycles. After each project, inspect for thread wear, bolt deformation, and visible cracks. Units passing inspection maintain full structural integrity for continued use in rental fleets.

Q：What distinguishes your sleeve from internal joint pins?

A：The external sleeve design provides superior lateral rigidity by gripping tube exteriors. Unlike internal pins focused on alignment, our sleeve offers enhanced tensile strength and load distribution critical for vertical extensions.

Q：How do you ensure compatibility with standard scaffolding tubes?

A：Our 49mm inner diameter precisely matches industry-standard 48.3mm outer diameter tubes. Manufacturing tolerances ensure friction fit without excessive force during assembly or difficulty during disassembly.

Q：Does the product meet international safety standards?

A：All units are manufactured and tested to meet EN74-1, BS1139, and CE requirements. Our ISO-certified production system ensures consistent compliance with global construction safety regulations.

Q：What maintenance protocol extends sleeve service life?

A：Store units in dry, ventilated areas away from ground moisture. For non-galvanized threads, apply light lubrication to prevent seizing. Regular inspection before deployment identifies wear requiring replacement.

Contact Us

Ready to strengthen your scaffolding systems with precision-engineered connections like Scaffold Connecting Sleeve? Our team provides tailored specifications based on your project drawings and load requirements. Contact us at sdxingruiqp@126.com for technical consultation and sample evaluation.
