8-Hole Disc Scaffolding: Premium Modular Support System for Industrial Construction

Shandong Xingrui Building Materials Co., Ltd. manufactures high-performance 8-Hole Disc Scaffolding systems engineered from Q235 premium steel with advanced manufacturing precision. Our system features eight evenly distributed connection holes on vertical standards, enabling multi-directional assembly at 500mm rosette intervals. With a factory area spanning 79,800 square meters and over 12 welding robots ensuring consistent quality, we deliver scaffolding solutions with vertical load-bearing capacity exceeding 40kN per standard. Our product undergoes hot-dip galvanization with zinc coating thickness exceeding 80 microns, providing 15-25 years of corrosion resistance. Backed by ISO 9001, ISO 14001, and CE certifications, our products serve construction projects across 100+ countries with reliable performance and dimensional accuracy within ±0.1mm tolerance.

What Makes Our 8-Hole Disc Scaffolding Different

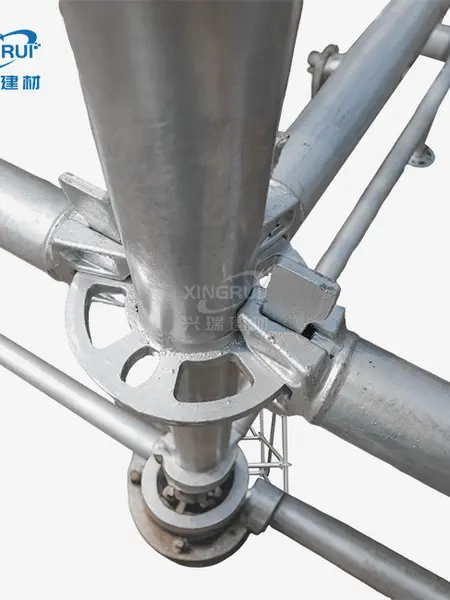

The core innovation lies in the rosette connector design. Unlike traditional 4-hole configurations, our eight-slot system includes four precision slots for perpendicular ledgers and four wider slots specifically engineered for diagonal bracing.

This configuration enables true 45-degree triangulation, critical for lateral stability in structures exceeding 20 meters. Your teams eliminate structural deformation risks common in lower-tier systems.

The gravity-fed wedge-lock mechanism operates without bolts or loose couplers. You achieve self-locking connections that reduce assembly labor costs by up to 50% compared to tube-and-coupler alternatives.

With 180 professional technicians overseeing production across six automatic welding lines, every rosette undergoes ultrasonic testing to verify weld integrity at the critical pipe connection point.

Technical Specifications

Industrial Application Scenarios

Heavy-Duty Civil Engineering Projects

Your bridge shoring and tunnel formwork operations require systems that handle extreme axial loads. Our 8-Hole Disc Scaffolding provides the structural rigidity necessary for load-bearing applications where safety margins cannot be compromised.

The multi-directional connectivity allows geometric flexibility for irregular structural designs while maintaining frame stability.

Petrochemical & Refinery Maintenance

Complex circular tanks and intricate pipe racks demand scaffolding that adapts to confined spaces. The bolt-free design eliminates loose component risks in high-temperature environments.

Fire safety protocols benefit from the self-locking mechanism that prevents accidental disassembly during operations.

High-Rise Facade Construction

Perimeter scaffolding in extreme wind environments requires diagonal bracing that stays rigid. The eight-hole locking system prevents parallelogram deformation that compromises worker safety.

Your suspended scaffold installations gain stability from the superior weight-to-load ratio our manufacturing process delivers.

Quality Assurance Process

You receive scaffolding components that pass six critical inspection stages before shipment. Our quality control protocol includes spectrochemical analysis to verify Q235 steel composition.

Destructive loading tests confirm wedge-head shear strength and standard buckling resistance under simulated field conditions.

Copper sulfate Preece testing validates zinc layer adhesion meets ISO 1461 requirements. Every batch undergoes magnetic thickness gauge verification to ensure galvanization consistency.

With our 40,000-square-meter standardized workshop equipped with four cold roll forming machines, dimensional precision stays within ±0.1mm for outer diameter and wall thickness measurements.

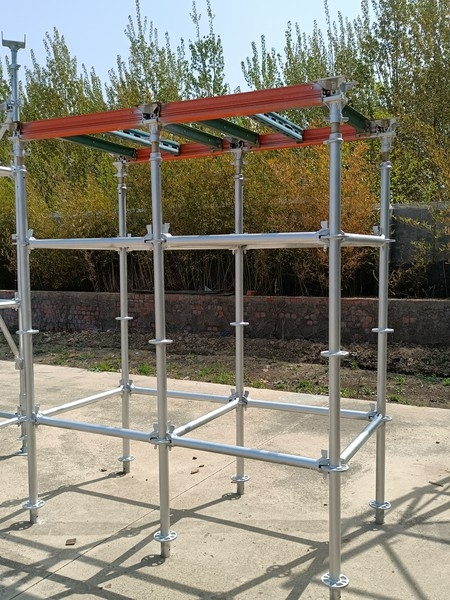

Installation Advantages You'll Notice

The rosette-and-wedge connection reduces assembly time by eliminating threaded couplers and alignment struggles. Your crews can erect scaffolding structures 50% faster than traditional systems.

Component interchangeability means you maintain smaller inventory volumes while serving diverse project requirements. The system's compatibility with standard accessories maximizes your existing equipment investment.

Disassembly proceeds equally fast—the wedge mechanism releases with simple hammer taps, reducing labor hours during project completion phases.

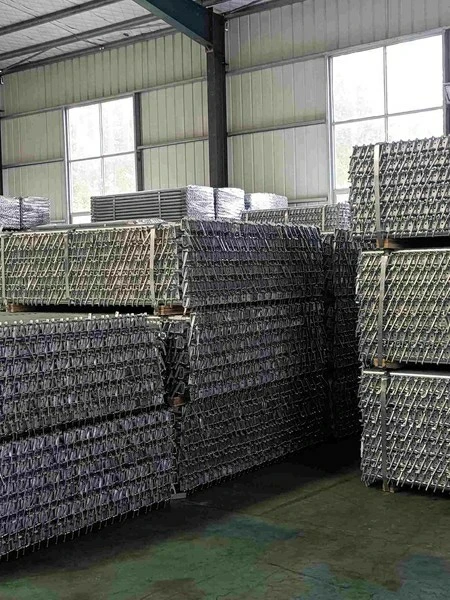

Packaging & Delivery

We utilize steel pallets with waterproof wrapping for ocean freight. Components are bundled by type to simplify inventory management upon arrival.

Our Rizhao location provides direct access to international seaport facilities, reducing inland transportation costs. You benefit from integrated logistics supporting container loading and customs documentation.

FAQ

Q：Why does the 8-hole configuration outperform 4-hole versions?

A：Four additional slots enable precise 45-degree diagonal placement. This triangulation is structurally essential for lateral stability in scaffolding exceeding 20 meters, where wind loads become significant factors.

Q：Can I mix components from different suppliers?

A：While many manufacturers follow the Layher standard, rosette thickness variations of 0.5mm-1mm exist. We recommend compatibility testing before mixing brands to verify wedge angles align properly and load ratings remain valid.

Q：What maintenance schedule should I follow?

A：Hot-dip galvanized components require minimal maintenance beyond visual inspections. Check for mechanical damage after each project and verify wedge integrity. Proper storage extends the 15-25 year service life.

Q：Does extreme weather affect performance?

A：Q235 steel maintains structural integrity from -20°C to +200°C. However, load calculations should account for thermal expansion in extreme heat conditions above 150°C sustained temperatures.

Q：Is specialized training necessary?

A：Yes. While the wedge-lock is intuitive, certified scaffolding competent person training ensures correct bracing sequences and ledger placement. Proper assembly technique directly impacts structural safety and load distribution.

Contact Us

Our six automatic welding lines and 12 welding robots ensure every 8-Hole Disc Scaffolding component meets the structural integrity your projects demand.Contact our export team at sdxingruiqp@126.com to discuss your project requirements and receive customized solutions that match your construction timeline and budget parameters.
