Crab 60series Scaffolding: Heavy-Duty Modular Support System for High-Load Construction

Shandong Xingrui Building Materials Co., Ltd. presents its professional-grade Crab 60series Scaffolding, a heavy-duty modular shoring system engineered for extreme load-bearing requirements. Manufactured from Q235 premium steel with 60.3mm outer diameter uprights and 3.2mm wall thickness, this system delivers superior structural integrity for high-rise and large-span construction projects. Our eight-hole rosette design enables multi-directional connections with 1.5m step distance and 1.2m standard span configuration. With ISO 9001, ISO 14001, and ISO 45001 certifications, this hot-dip galvanized solution offers 20+ years of corrosion resistance. Backed by our 79,800-square-meter production facility and 180 professional technicians, we provide customizable sizing and reusable components for cost-effective construction support.

Technical Specifications of Crab 60series Scaffolding

Our engineering team has designed the product to meet rigorous international construction standards. The precision-manufactured components ensure reliable performance across diverse project requirements.

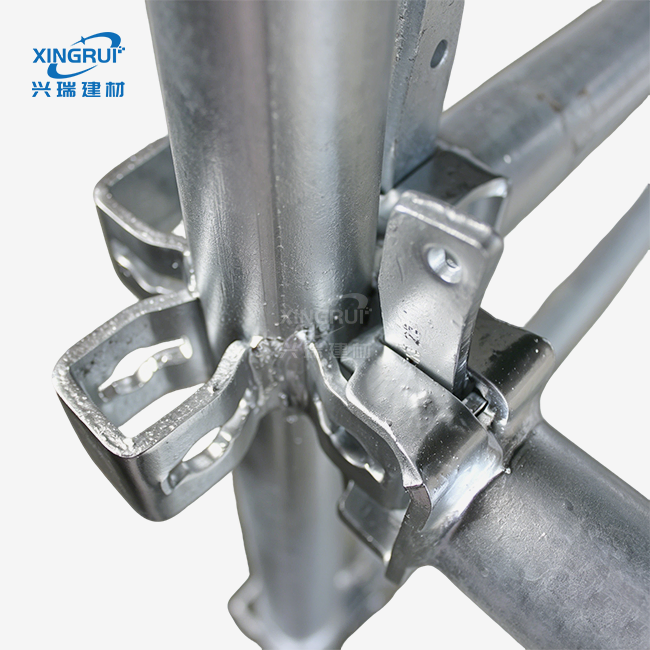

Superior Load-Bearing Performance

Your construction projects demand scaffolding that won't compromise under pressure. The Crab 60series Scaffolding system addresses this challenge with its robust 60mm diameter framework.

Each vertical standard supports between 6 and 8 metric tons, depending on ledger spacing. This capacity significantly exceeds conventional 48.3mm systems, making it ideal for ultra-high formwork support applications.

The wedge-lock connection mechanism provides self-tightening functionality. As loads increase or vibrations occur, the wedge seats deeper into the rosette, enhancing structural rigidity without additional fasteners.

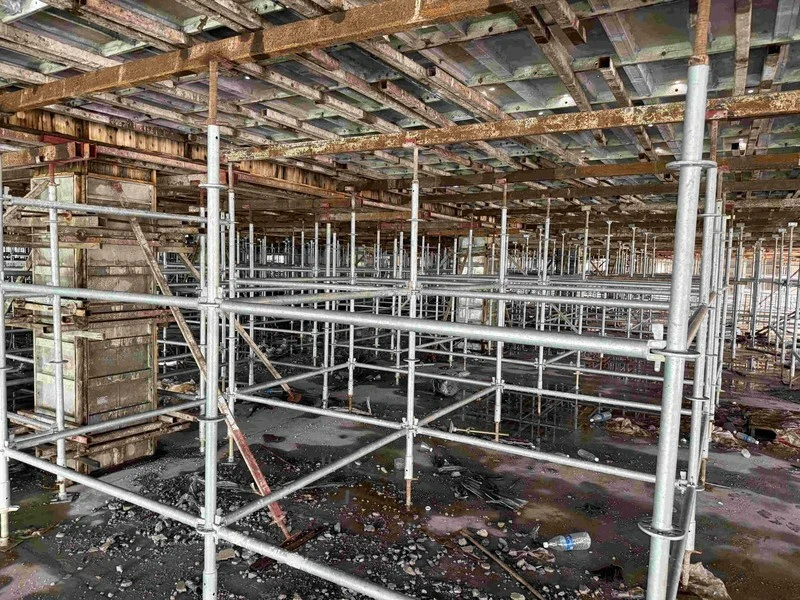

Versatile Application Scenarios

Bridge and viaduct construction projects benefit from the system's high-clearance support capabilities. The framework serves as primary shoring for cast-in-situ concrete bridge decks where vertical loads are extreme.

Industrial plant infrastructure requires scaffolding that withstands heavy equipment installation demands. Power plants and refineries utilize this system for maintenance scaffolding where floor loads are substantial and spatial constraints require high-density modular configurations.

Large-scale public works such as stadiums and metro stations need minimal deflection under significant dead loads. The 60mm profile ensures complex roof structures and heavy formwork remain stable throughout construction phases.

Corrosion Resistance and Longevity

Coastal and industrial environments present unique challenges for scaffolding durability. Our hot-dip galvanization process applies 60-80 microns of protective coating to all components.

This treatment ensures your Crab 60series Scaffolding maintains structural integrity for over 15-20 years, even in high-salinity areas. The uniform zinc layer prevents premature oxidation and reduces replacement costs.

Reusable components provide long-term value for your construction operations. Custom sizing options allow you to configure the system precisely for your project specifications.

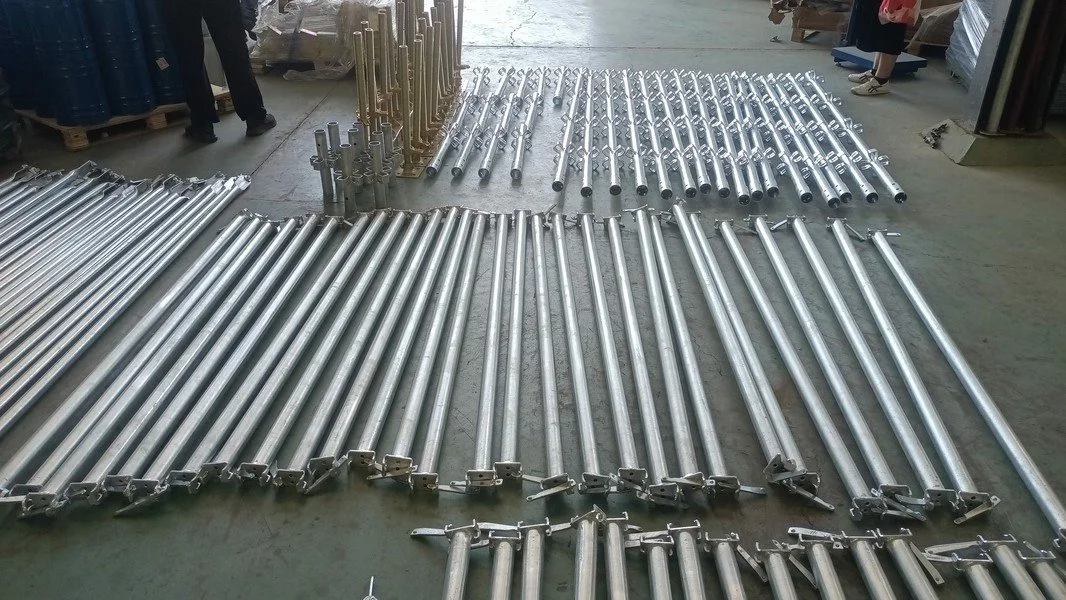

Quality Control Standards

Shandong Xingrui implements comprehensive inspection protocols at every production stage. Our 40,000-square-meter standardized workshops utilize 12 welding robots and 6 automatic welding lines to ensure consistency.

Raw material verification includes spectroscopic analysis to confirm steel composition. Ultrasonic testing of rosette-to-tube welds prevents failure under shear stress.

Dimensional tolerance checks guarantee zero-play connections at wedge-lock interfaces. Compression testing of assembled towers verifies rated load capacity against theoretical calculations before shipment.

Magnetic thickness gauge testing confirms complete galvanization coverage. This rigorous approach delivers the reliability you need for safety-critical construction support.

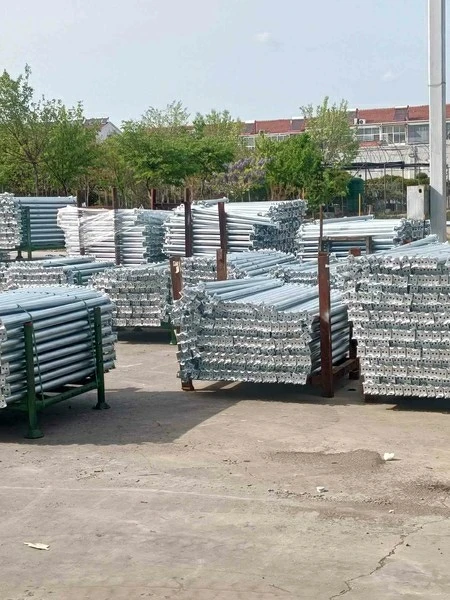

Global Supply Capability

With products exported to over 100 countries across Asia, Europe, Americas, Oceania, and Africa, we understand international project demands. Our Rizhao location provides integrated logistics through international seaport, airport, and high-speed rail connections.

Large-scale order production capacity ensures stable supply for your project timelines. Our 920-employee workforce operates a dozen specialized workshops to maintain delivery commitments.

FAQ

Q：Can this system integrate with existing equipment?

A：Specialized transition couplers allow integration with standard 48.3mm ledgers and tubes for non-load-bearing access sections. This flexibility reduces equipment replacement costs.

Q：How does vibration affect connection stability?

A：The gravity-locked wedge design is self-tightening. Increased loads or vibrations cause the wedge to seat deeper, enhancing rather than compromising connection rigidity.

Q：Is the system suitable for suspended structures?

A：High-tensile joint strength makes it appropriate for cantilevered or suspended platforms when designed with tension-rated components. Engineering support is available for complex configurations.

Q：What maintenance schedule do you recommend?

A：Annual inspections focusing on connection points and galvanization integrity extend service life. Our technical team provides guidance tailored to your environmental conditions.

Q：Do you offer technical support for project planning?

A：Samples and technical guidance are available to assist with system configuration and load calculations. Our 180 professional technicians support your engineering requirements.
