Gate Frame Scaffolding

Gate Frame Scaffolding - Professional Modular Access Solution

Shandong Xingrui Building Materials Co., Ltd. delivers industrial-grade Gate Frame Scaffolding manufactured from Q235 Φ42mm welded steel tube with enhanced structural rigidity. Our upgraded door-type frame design achieves load-bearing capacity exceeding 2,500 lbs per unit and supports multi-layer stacking for high-rise applications. Standard configurations feature 1.7m and 1.93m heights with 914mm width, finished with hot-dip galvanized coating providing 60-80 microns zinc protection for over 10 years of corrosion resistance. Our system is ISO 9001 certified and manufactured in standardised factories of 40,000㎡ with 12 welding robots and 6 robotic welding lines. Dimensional tolerance of ±1.5mm guarantees secure vertical alignment in tough construction conditions.

Why Choose Walk-Through Frame Scaffolding for Modern Construction

Traditional scaffolding limits movement on site and can delay projects. The device clears these bottlenecks with its characteristic wide-portal design. The 1.93m (6'4") walk-through clearance permits the passage of workers and equipment at ground level.

Your construction teams gain continuous workflow without climbing obstacles. Material handling becomes safer and faster across horizontal spans. This modular system adapts to complex site conditions through adjustable screw jacks and standardized lock pin spacing at 4-foot or 2-foot intervals.

The unified specifications ensure strong interchangeability across all components. You can reconfigure layouts quickly as project phases evolve. Multi-layer stacking capability extends vertical reach up to 38 meters without structural compromise when properly tied to buildings.

Technical Specifications of Gate Frame Scaffolding

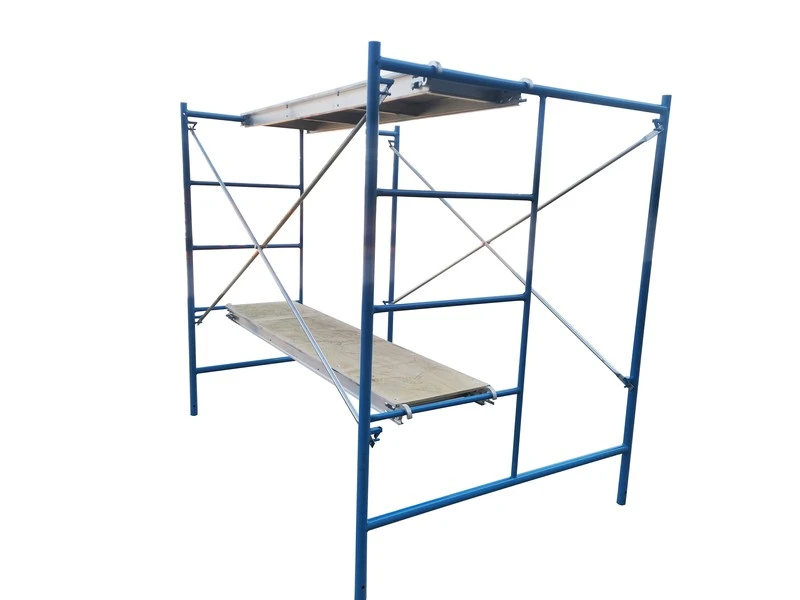

Advanced Manufacturing Process

Xingrui's 79,800㎡ production base integrates specialized workshops for complete quality control. Your scaffolding passes through cold bending, robotic welding, and electrostatic spraying facilities operated by 180 professional technicians.

Our 12 welding robots perform CO2 shielded welding with ultrasonic testing verification. This eliminates porosity and slag inclusions at every joint. The 4 cold roll forming equipment sets maintain consistent tube profiles within micron-level precision.

Hot-dip galvanization occurs after full frame assembly. This critical sequence ensures weld seams receive complete zinc coverage—a vulnerability in pre-galvanized alternatives. Digital coating thickness gauges verify the 60-80 micron specification before shipment.

Each batch undergoes destructive load testing where samples are stressed to failure point. This confirms the 4:1 safety factor required by international regulations. Mill Test Reports accompany every order to document steel chemical composition and yield strength.

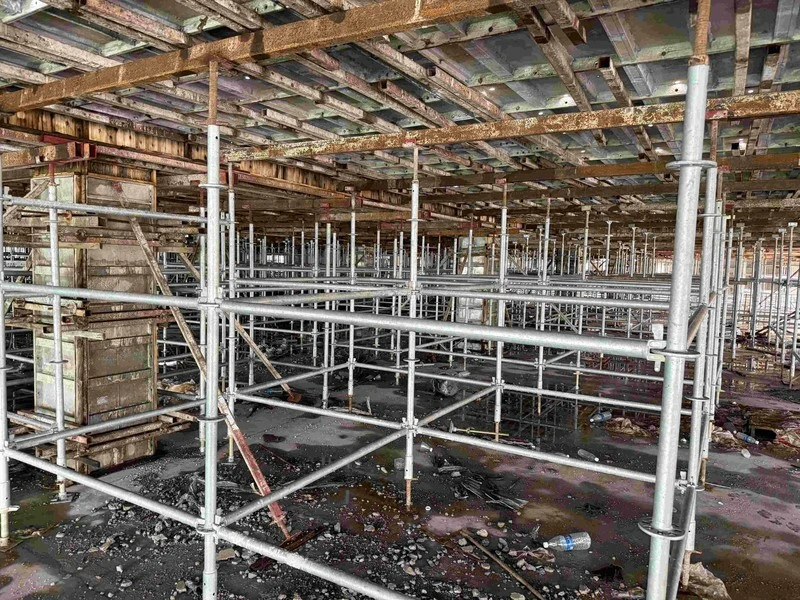

Versatile Application Scenarios

High-Rise Exterior Wall Construction: Your masonry and cladding teams move materials horizontally across scaffold levels without constant climbing. The gate design reduces worker fatigue by 40% compared to traditional narrow-frame systems.

Industrial Maintenance Platforms: Factories and power plants benefit from overhead working platforms while floor-level machinery remains operational. Equipment access stays unobstructed beneath the scaffolding structure.

Bridge Infrastructure Support: Civil engineering projects utilize Gate Frame Scaffolding as heavy-duty shoring towers. Engineers access foundation inspection points through the base portal while the system supports formwork loads above.

Temporary Event Structures: The modular nature adapts to uneven terrain for stage construction and large-scale public installations. Quick assembly and disassembly reduce labor costs by 30% versus tube-and-coupler alternatives.

Quality Assurance & Global Standards

Xingrui maintains full-process quality traceability from raw material inspection to finished product testing. Our ISO 14001 environmental management certification ensures sustainable manufacturing practices throughout production.

CE certification validates compliance with European safety directives for international markets. Real-time tracking systems monitor each production batch through welding, coating, and packaging stages.

Dimensional verification equipment checks spigot alignment and verticality tolerances. Magnetic particle inspection detects microscopic weld defects invisible to standard visual checks. Your projects receive scaffolding proven through rigorous technical validation.

The reusable design minimizes material waste across multiple project cycles. Proper maintenance extends component lifespan beyond 10 years, delivering superior ROI compared to disposable systems.

FAQ

Q：What maximum height can this system reach safely?

A：Standard configurations support vertical stacking to 38 meters when tied to structures per OSHA guidelines. Projects exceeding this height require engineer-certified calculations based on site-specific load conditions.

Q：How does hot-dip galvanization improve durability?

A：HDG applies zinc coating after welding, protecting vulnerable weld seams from corrosion. Pre-galvanized tubes leave welded joints exposed to rust, shortening service life significantly in humid environments.

Q：Can I mix components from different manufacturers?

A：Lock pin spacing and tube diameters vary by millimeters between brands. Cross-compatibility should only occur after dimensional matching tests verify safe connections. Using mismatched components risks structural failure.

Q：What inspection frequency do regulations require?

A：A competent person must inspect the product daily before each shift. Additional checks are mandatory after environmental events like high winds or seismic activity to verify stability.

Q：Do you provide custom dimensions for special projects?

A：Yes. Our engineering team produces tailored configurations based on your drawings and site requirements. The 40,000㎡ workshop handles specialized orders with the same quality standards as stock items.
