H-Type Scaffolding

H-Type Scaffolding – High-Strength Modular Scaffolding Solution

Shandong Xingrui Building Materials Co., Ltd. manufactures premium H-Type Scaffolding engineered from Q235 high-grade steel, delivering symmetrical stress distribution and superior structural stability. The H-frame has a standard width of 1219 mm, suitable for limited spaces and heavy-duty applications such as electromechanical installation platforms. With a huge 79,800-square-meter manufacturing facility equipped with 12 welding robots and 6 automated welding lines, we assure constant quality supported by ISO 9001, ISO 14001, and CE certifications.  Each frame is load tested to comply with worldwide EN 12810 and BS 1139 standards providing load bearing capability exceeding that of traditional door frames by up to 40%.

What Is H-Type Scaffolding?

The device is a modular access system based around sturdy vertical frames formed like the letter "H."  Two vertical tubes link via many horizontal members, providing a sturdy portal unit.

This design solves critical challenges in modern construction.  You obtain quick assembly speed compared to typical tube-and-clamp methods, decreasing installation time by about 60%.  The generous walk-through clearance enhances site operations by enabling personnel and supplies to flow through simultaneously.

When you're handling mid-to-high-rise projects, this scaffolding type offers structural integrity under strong masonry and concrete loads.  Symmetrical geometry helps to balance out the stresses equally and avoid places where things might break during intense building stages.

Technical Specifications

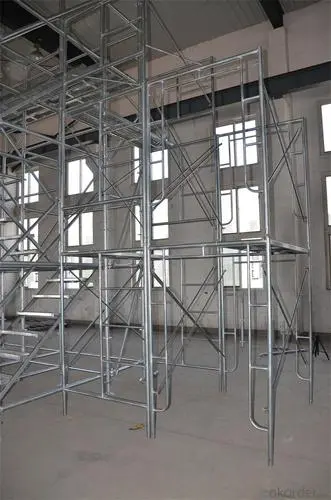

Core Advantages of Our H-Frame System

Enhanced Load Capacity

Our widened double-upright structure achieves significantly higher load tolerance than standard door frames. You can confidently support heavy electromechanical equipment and large-scale maintenance platforms without compromising safety margins.

The lateral stiffness eliminates platform shaking during operation. Workers experience greater stability when handling power tools or moving bulky materials at height.

Compact Design for Restricted Spaces

When you're working in confined indoor environments or narrow alleyways, the H-Type Scaffolding's compact footprint becomes essential. The frame maintains structural integrity while occupying minimal ground space.

This efficiency proves invaluable during renovation projects where existing structures limit access. You complete local construction tasks without disrupting adjacent areas or requiring extensive site preparation.

Reusable and Cost-Effective

Every frame withstands repeated assembly cycles across multiple projects. The robust steel construction and corrosion-resistant coatings ensure long-term durability.

You reduce per-project costs through equipment reuse rather than continuous replacement. Our made-to-order service accommodates specific dimensional requirements, preventing material waste from standardized products that don't fit unique site conditions.

Primary Application Scenarios

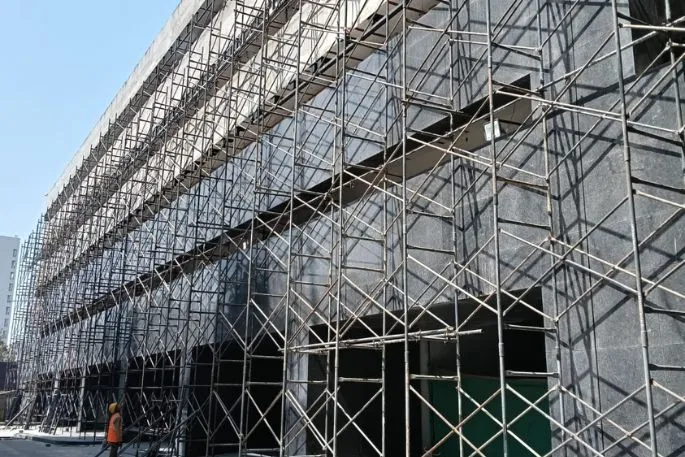

High-Rise Exterior Work

For facade masonry and cladding installation, the modular nature enables quick vertical stacking. You anchor frames securely to building structures, maintaining stability even in high-wind coastal zones where conventional scaffolding might require additional bracing.

Heavy-Duty Shoring Applications

Bridge construction teams rely on this scaffolding for soffit formwork support. The rigid H-geometry handles concentrated vertical loads from poured concrete, distributing weight across multiple contact points to prevent deformation.

Industrial Maintenance Platforms

Refineries and chemical facilities face distinct challenges—restricted areas mixed with severe safety regulations.  The walk-through design provides compliance working heights and guardrail protection while allowing personnel to walk around existing pipelines and equipment.

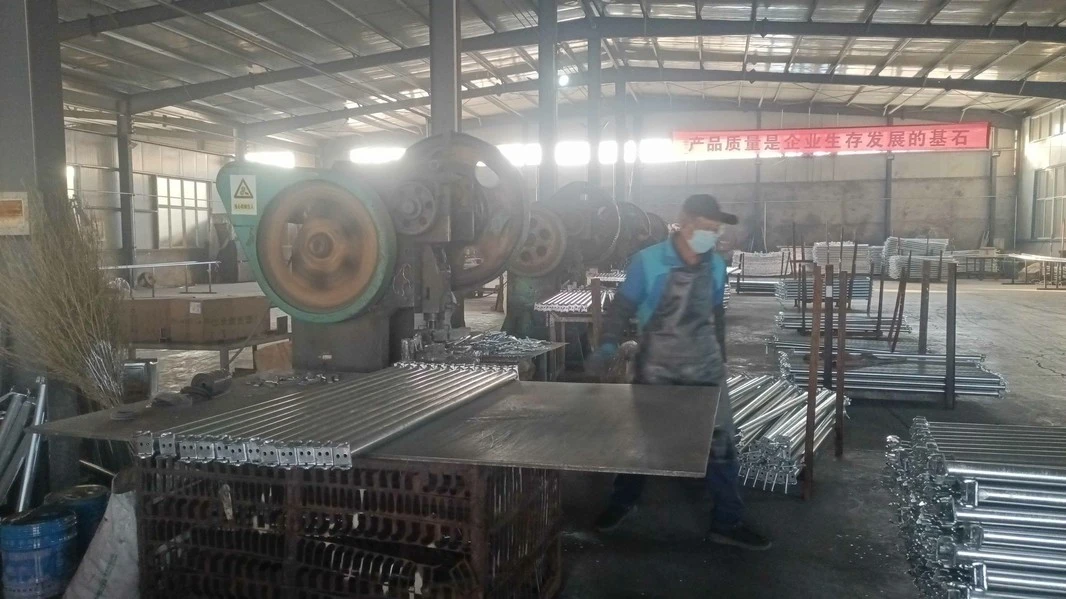

Quality Assurance Process

Our 180-member technical team implements multi-stage inspection protocols throughout production:

Weld Integrity Verification: We employ Ultrasonic Testing (UT) to confirm CO2 shielded welds meet rated stress thresholds. Every joint undergoes scrutiny before frames leave our workshop.

Dimensional Precision Checks: Automated measurement systems verify frame squareness and pinhole alignment within 0.5mm tolerance. This prevents cumulative vertical leaning when stacking multiple levels.

Coating Thickness Analysis: Electromagnetic gauges confirm hot-dip galvanization layers reach 60-80 microns minimum. You receive scaffolding resistant to premature oxidation in humid or marine environments.

Load Testing: Destructive compression tests on batch samples validate actual breaking points against theoretical safe working loads, providing documented safety factors for your project planning.

FAQ

Q: What maximum height can the product safely reach?

A: Standard configurations require engineered tie-ins every 4 meters vertically and 6 meters horizontally when exceeding a 3:1 height-to-base ratio, following OSHA and EN standards. Proper anchoring allows scalability for most mid-rise applications.

Q: Can I mix frames from different suppliers?

A: We strongly advise against this practice. Variations in pin placement and tube diameters between manufacturers compromise structural integrity. Using components from a single certified source maintains safety compliance.

Q: How does this compare to Ringlock systems?

A: The product excels in straight-run facades and standard rectangular structures, offering faster assembly and lower costs. Ringlock provides 360-degree connection flexibility better suited for complex curved geometries.

Q: What's the expected service life?

A: Hot-dip galvanized frames typically last 10-15 years with proper storage—keeping them dry and avoiding ground contact when not in use. Our Q235 steel maintains mechanical properties through hundreds of assembly cycles.

Q: Do your frames meet international standards?

A: Yes. We provide test certificates confirming compliance with BS 1139 and EN 12810-1 requirements for both steel composition and assembled frame mechanical properties.

Contact Us

Ready to enhance your project safety and efficiency with H-Type Scaffolding? Our engineering team provides technical support tailored to your specific site conditions. Request samples or discuss custom specifications by contacting us at sdxingruiqp@126.com today.
