Crab System Scaffolding: Heavy-Duty Modular Support for Demanding Construction Projects

Shandong Xingrui Building Materials Co., Ltd. presents its 60-series Crab System Scaffolding, a premium multi-directional support solution engineered for high-stakes infrastructure projects. Manufactured from Q235 steel with a robust 3.2mm wall thickness, this system features an eight-hole disc design that enables cross bars, diagonal bars, and tie bars to connect in any direction. With a load-bearing capacity of up to 200kN per tower, our product delivers exceptional stability for tunnels, bridges, and high formwork applications. Backed by ISO 9001, ISO 14001, and ISO 45001 certifications, it combines reusability with strict quality control from our 40,000-square-meter manufacturing facility.

What Makes This System Different

The modular framework utilizes a wedge-locking mechanism that eliminates loose fittings entirely. You get self-aligning structures that reduce assembly errors and speed up installation by approximately 50% compared to traditional tube-and-clamp methods.

Our eight-way connection points provide geometric flexibility for complex project geometries. The gravity-assisted wedge design remains secure even under vibration, meeting safety standards for high-impact construction zones.

Hot-dip galvanization per ISO 1461 ensures a 60-80μm zinc coating thickness. This treatment extends service life to 15 years while maintaining structural integrity across varied environmental conditions.

Technical Specifications of Crab System Scaffolding

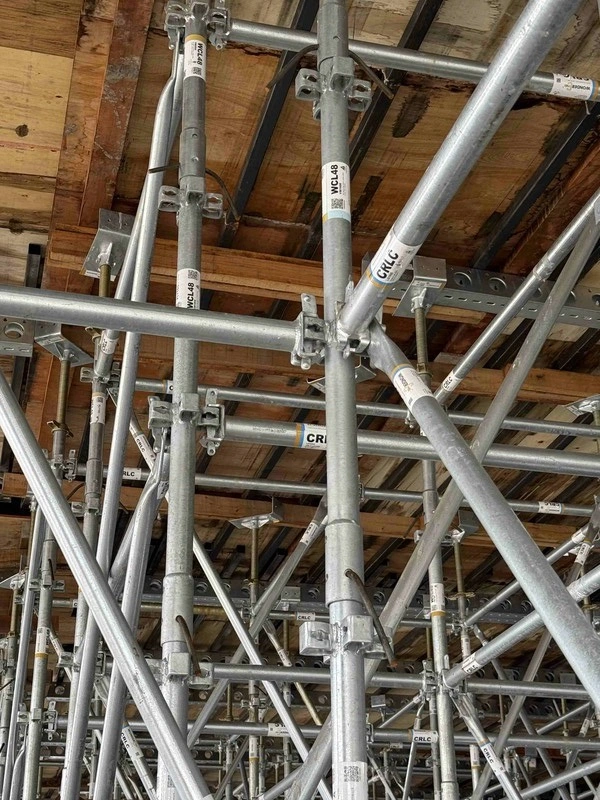

Superior Load-Bearing Performance

The 60-series heavy-duty configuration is specifically optimized for shoring rather than just access. Your vertical standards maintain stability under massive loads, making this system ideal for supporting cast-in-situ concrete beams.

Anti-overturning and deformation resistance are engineered into every component. The system handles lateral forces effectively through diagonal bracing that locks at precise angles, ensuring structural rigidity throughout the construction cycle.

When combined with heavy-duty screw jacks and U-head base jacks, you can achieve precise leveling on uneven terrain. This adaptability reduces site preparation time while maintaining safety margins.

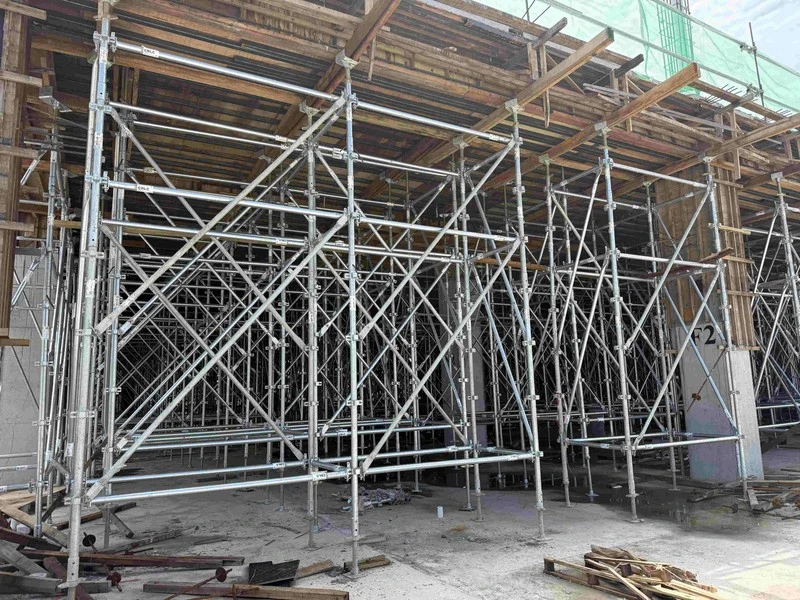

Key Applications for Demanding Projects

Bridge and Viaduct Construction

The superior vertical load capacity makes this the preferred choice for supporting heavy concrete spans. You can configure towers to precise heights while maintaining the structural stability required for large-scale bridge work.

Tunnel and Underground Infrastructure

Modularity allows you to create arched or irregular shoring frames that conform to confined geometries. The system maintains high safety factors essential for subterranean environments where space constraints challenge conventional scaffolding.

Industrial Facilities and Energy Plants

Refineries and power plants benefit from the rigid, footprint-efficient platforms this system provides. You can build stable access structures around complex piping and boiler configurations where traditional methods lack necessary rigidity.

High Formwork Support Systems

For multi-story buildings requiring temporary support during concrete curing, the Crab System Scaffolding delivers reliability. Its reusability across multiple projects improves your cost efficiency over time.

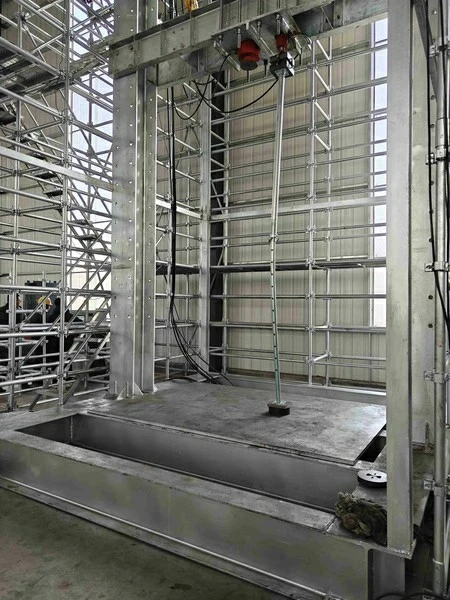

Quality Assurance and Testing

Our 180-member technical team conducts ultrasonic weld testing on every rosette-to-pipe connection. This ensures joints withstand extreme shear forces throughout the product lifecycle.

Loading capacity verification follows EN 12810/12811 standards through destructive testing protocols. Dimensional tolerance checks guarantee wedge-lock pins and discs fit with zero play, preventing structural swaying under load.

Zinc coating adhesion tests confirm the galvanized layer resists mechanical impact. Complete product traceability systems track materials from raw steel procurement through final inspection, giving you documentation for compliance audits.

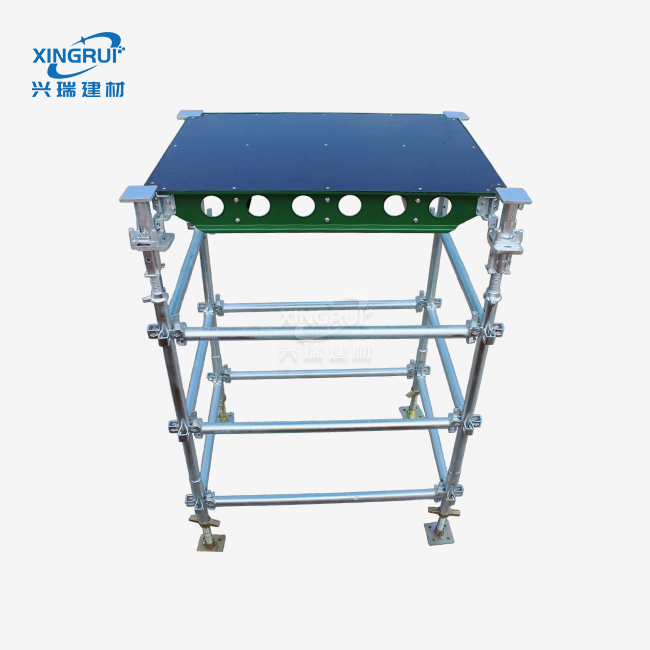

Manufacturing Excellence

Produced in our 79,800-square-meter facility, each component passes through specialized workshops equipped with 12 welding robots and 6 automatic welding lines. This automation ensures consistent weld quality and dimensional accuracy.

Our cold roll forming equipment creates uniform profiles across thousands of units. The electrostatic spraying workshop applies additional corrosion protection for components requiring enhanced weather resistance.

With 920 employees including experienced technicians, we maintain production capacity for large-volume orders while supporting custom specifications based on your project drawings.

FAQ

Q：How does this compare to standard Ringlock systems?

A：The 60mm heavy-duty standard is specifically engineered for shoring applications requiring higher load capacities. While Ringlock excels in access scaffolding, our product prioritizes vertical load performance for formwork support.

Q：Can your team provide technical assistance for project planning?

A：Yes, we offer technical support including load calculations and configuration recommendations. Our engineers review your project specifications to ensure optimal system design.

Q：What is the typical lead time for custom orders?

A：Standard configurations ship within 20-30 days. Custom specifications require 35-45 days depending on order volume and complexity. We coordinate with your project timeline to ensure timely delivery.

Q：Is training required for installation crews?

A：While the wedge-locking mechanism is intuitive, we recommend basic orientation on load-path design and proper pin engagement. This ensures your teams maximize assembly speed while maintaining safety protocols.

Q：What certifications accompany shipments?

A：Each order includes ISO certification documentation, material test reports, and load capacity verification data. For international projects, we provide CE certification and compliance documentation per EN 12811-1 standards.
