Tubular Scaffolding: Premium Modular Steel System for Heavy-Duty Construction

Shandong Xingrui Building Materials Co., Ltd. manufactures enterprise-grade Tubular Scaffolding engineered from Q235 premium steel with standardized 48mm diameter tubes. Our system has wall thicknesses from 3.2mm to 4.0mm and provides an excellent load-bearing capability for challenging building settings. Our scaffolding is manufactured in 40,000+ square meters of standardised workshops and assembled with 12 welding robots, 6 automated production lines. The Hot-Dip Galvanisation of 40-60 micron zinc coating for better corrosion resistance. Our modular tube combination frames are reusable, customisable and used in 100+ countries for projects such as temporary support structures and working platforms. We are ISO 9001, ISO 14001 and ISO 45001 certified.

What Makes Our System Different

Our product stands apart through precision engineering and flexible configuration capabilities. The 48-series welded round steel pipes connect seamlessly with specialized fasteners, allowing you to erect external wall protection frames, indoor formwork support systems, and temporary operation platforms.

Unlike rigid prefabricated frames, our system adapts to irregular facades and challenging industrial geometries. You gain complete geometric freedom while maintaining structural integrity. This flexibility proves invaluable when working around intricate piping networks or non-linear building surfaces.

The modular design enables simple assembly and disassembly without specialized tools. Your crew can configure structures quickly, reducing labor costs and project timelines significantly.

Technical Specifications of Tubular Scaffolding

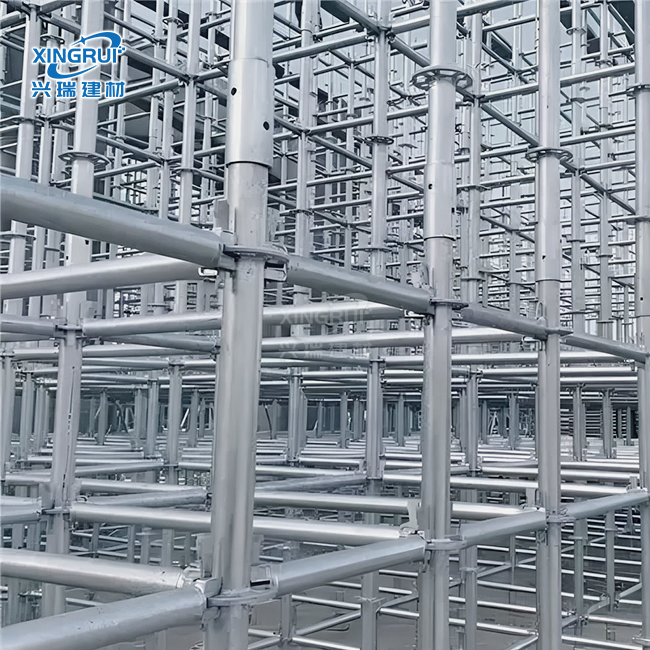

Superior Material Properties

The S235 carbon steel structure provides great torsional stiffness and an ideal strength-to-weight ratio. You get good structural performance without the extra baggage that makes it a pain to handle.

Once the tube is formed the process of Hot-Dip Galvanisation coats the interior and exterior surfaces. This gives complete protection, superior to pre-galvanized choices which leave weld seams exposed to environmental stress.

The zinc coating protects against corrosive environments and increases service life even in marine situations or chemical processing plants. Your investment is backed by decades of demanding field use for performance integrity.

The tubes are made of high-carbon steel, which allows them to resist the large axial stresses and shear forces exerted by the wind. This dependability is crucial in high-altitude missions when structural failure might be catastrophically dangerous.

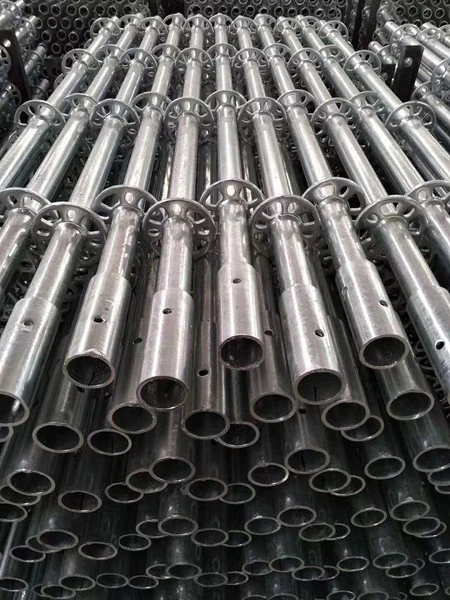

Quality Assurance Rigorous

Every piece is checked at several stages before leaving our 79,800 square metre manufacturing plant. We have 180 expert specialists that do dimensional tolerance checks to ensure the outer diameter, wall thickness and length meet tight criteria.

We perform destructive testing protocols including flattening tests for weld seam integrity and chemical composition analysis. Zinc coating thickness receives measurement through magnetic induction methods, ensuring compliance with international standards.

Coupler slip and failure load testing follows EN 74 protocols. Visual inspections identify pitting, cracks, or oxidation that could compromise structural safety. This zero-failure commitment protects your crew during high-elevation work.

Our quality traceability system tracks every batch from raw material intake through final shipment of Tubular Scaffolding. You receive documentation proving compliance with BS 1139 and EN 39 safety standards.

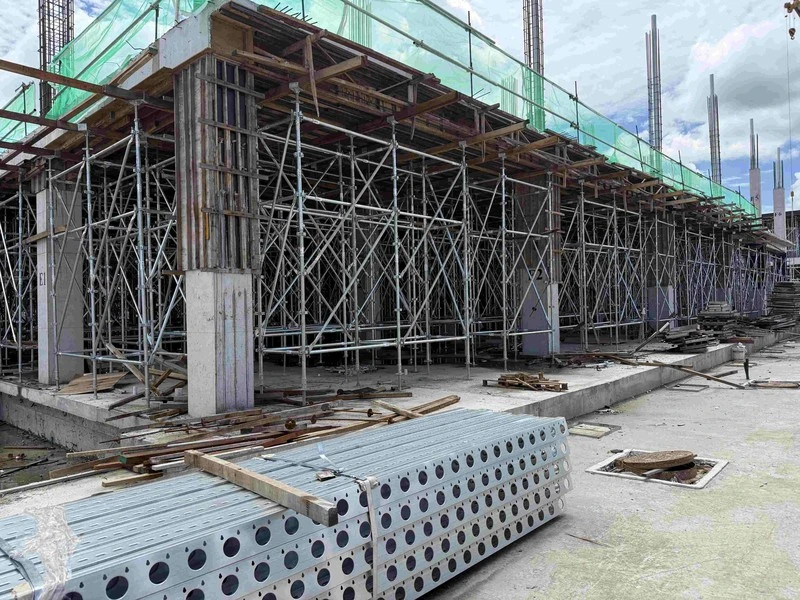

Versatile Application Scenarios

Petrochemical and Industrial Maintenance: The system excels in turnaround projects where you must navigate complex pipe networks and pressure vessels. Standard frames cannot match this configurability around intricate equipment layouts.

Heritage Building Restoration: When working with historical structures featuring delicate facades and decorative elements, our system cantilevers platforms without impacting architectural integrity. You achieve necessary access while preserving cultural assets.

Marine & Offshore Construction: Scaffolding for shipyards and offshore rigs must be able to endure the saltwater and harsh weather conditions. The galvanised finish and strong clamping force provide sturdy work platforms for hull repair and structural welding works.

Bridge Construction and Repair: The modular tubes are placed under the bridge decks and around the support columns to accommodate various geometries. Your team has safe access for inspection, repair and rehabilitation operations.

Cost-Effective Reusability

The modular design supports repeated assembly and disassembly across multiple projects. Standard components reduce inventory complexity—you maintain universal consumables rather than specialized parts for each application.

For smaller projects, tube cutting optimizes material utilization without compromising structural performance. This flexibility minimizes waste and controls costs while delivering necessary support capacity.

Proper maintenance extends reuse cycles beyond 50 iterations. The galvanized coating resists degradation, maintaining appearance and function through years of field service. Your total cost of ownership decreases substantially compared to disposable alternatives.

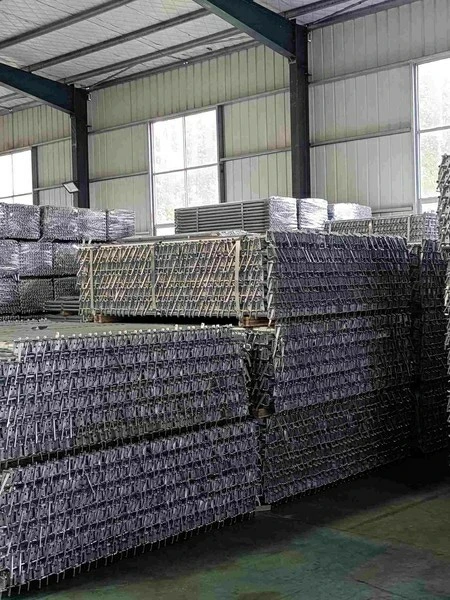

Packaging and Delivery

We bundle tubes and package fasteners to prevent damage during international shipping. Our location in Rizhao provides access to integrated seaport, airport, and high-speed rail logistics networks.

Large-volume orders receive priority scheduling across our automated production lines. We support custom packaging requirements based on your destination and handling equipment specifications.

FAQ

Q：What distinguishes hot-dip galvanized from pre-galvanized tubes?

A：Hot-dip galvanization occurs after tube formation, coating interior and exterior surfaces for maximum durability. Pre-galvanized tubes use already-coated strips, leaving weld seams more vulnerable to corrosion.

Q：Can I mix different wall thicknesses in one structure?

A：We do not recommend mixing 3.2mm and 4.0mm tubes, as thickness variations affect load calculations and coupler grip consistency. Uniform specifications ensure predictable structural performance.

Q：How frequently should structures be inspected?

A：Industry standards require inspection after initial installation, every seven days during use, and following adverse weather events. Regular assessment identifies potential issues before they compromise safety.

Q：What maximum height can the system achieve?

A：While structures can exceed 50 meters, configurations above 25 meters require structural engineer design. Professional calculations account for dead loads and wind pressure at extreme elevations.

Q：Are aluminum tubes compatible with steel couplers?

A：Yes, but you must verify coupler ratings match tube material. Proper selection prevents galvanic corrosion and ensures adequate friction grip for secure connections.

Contact Us

Shandong Xingrui Building Materials delivers Tubular Scaffolding solutions backed by 17 years of manufacturing expertise and global export experience. Contact us at sdxingruiqp@126.com to discuss your scaffolding needs and receive customized quotations for your construction applications.
