Cuplock Steel Tube Scaffolding

Cuplock Steel Tube Scaffolding - Professional Heavy-Duty Modular System

Shandong Xingrui Building Materials Co., Ltd., with over 17 years of manufacturing expertise since 2007, produces high-performance Cuplock Steel Tube Scaffolding engineered from Q235 premium steel. Our system features standardized Φ48mm welded pipe uprights with precision-engineered bowl buckle node spacing at 600mm intervals. Cross bars are available in 0.9m, 1.2m, and 1.5m specifications.

Manufactured across our 79,800㎡ production base equipped with 12 welding robots and 6 automatic welding lines, this system delivers superior anti-slip performance compared to traditional fastener frames. The self-locking bowl buckle connection ensures high strength and exceptional overall integrity, making it ideal for high-rise and large-scale building construction projects worldwide.

What Makes Our Cuplock System Different

The product represents a revolutionary approach to heavy-duty scaffolding through its unique circular node point connection technology. Unlike conventional tube-and-clamp systems, our design allows up to four horizontals to connect to a single standard in one locking action.

The system comprises vertical members (standards) with fixed bottom cups and sliding top cups, paired with horizontal members (ledgers) featuring forged blade ends. This rigid cup locking mechanism eliminates the pain points you face with traditional systems: slow assembly speeds, frequent loss of small fittings like bolts and wedges, and insufficient load-bearing capacity for complex shoring applications.

Our 180 professional technicians ensure every component meets strict dimensional tolerances. Cup spacing precision remains within ±1.5mm deviation, guaranteeing system verticality and structural reliability across your projects.

Technical Specifications & Material Excellence of Cuplock Steel Tube Scaffolding

Our Cuplock Steel Tube Scaffolding delivers unmatched technical performance through carefully selected materials and precision engineering.

The four-components-one-action node point provides exceptional lateral rigidity and superior strength-to-weight ratio. Our hot-dip galvanization process delivers 60-80 microns of zinc coating, ensuring excellent corrosion resistance in maritime or industrial environments.

Every batch undergoes CO2 gas shielded welding verification and periodic magnetic particle testing to prevent node failure. Material yield and tensile strength are confirmed through mill test certificates.

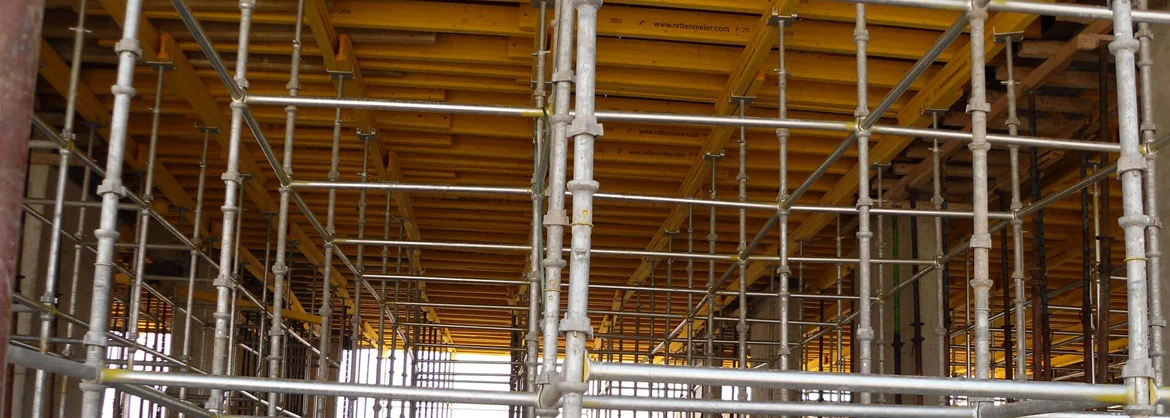

Primary Application Scenarios

Industrial Refineries and Offshore Platforms

Your maintenance schedules demand rapid assembly and zero loose parts. Our cuplock system eliminates dropped object risks in sensitive zones while reducing strike times by up to 40% compared to traditional scaffolding.

Heavy-Duty Shoring and Falsework

When supporting heavy concrete slabs in bridge and tunnel construction, you need reliable axial load capacity. The rigid node connections and Q235 uprights deliver the structural integrity your projects demand.

High-Rise Commercial Building Facade Access

The modular design adapts to complex building perimeters and curved geometries more efficiently than conventional systems. You maintain stability at extreme heights even under high wind loads, with neat frame forming that improves inspection pass rates.

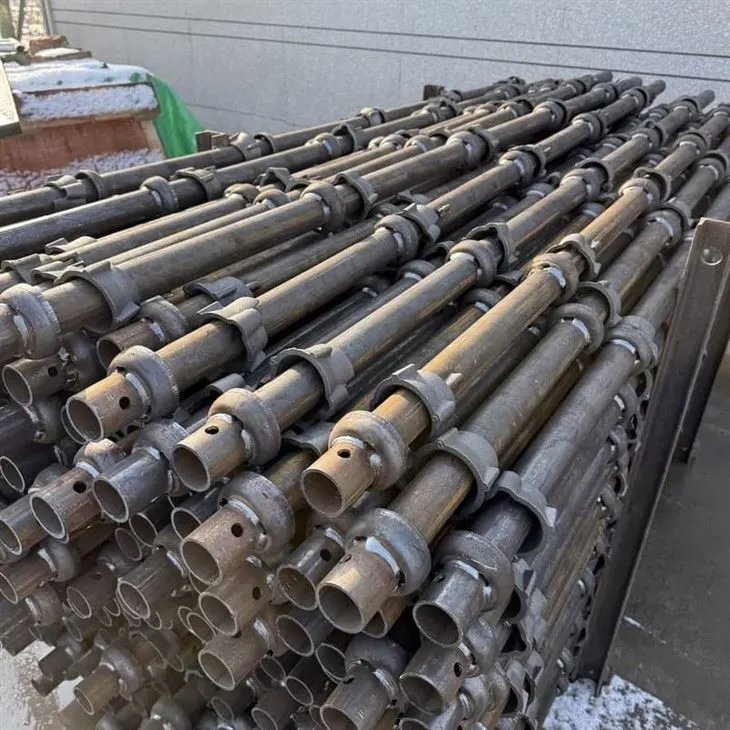

Quality Control & International Standards

We implement comprehensive quality inspection protocols at every production stage. Our 40,000㎡ standardized workshops operate under strict ISO9001, ISO14001, and CE certification requirements.

Critical quality checkpoints include weld integrity testing, dimensional tolerance verification within ±1.5mm, and digital gauge testing of galvanization layers. Load bearing tests validate cup-joint shear and moment capacities before shipment.

Our complete product quality traceability system tracks every component from raw material selection through final delivery. This rigorous approach ensures you receive scaffolding that meets BS EN 12811-1, ANSI/SSFI SC100-5/05, and AS/NZS 1576 international standards.

Why Choose Xingrui Building Materials

Advanced Manufacturing Capacity

Our 4 sets of cold roll forming equipment and 6 automatic welding lines ensure consistent quality across large-volume orders. The 920-member workforce, including 180 specialized technicians, brings decades of combined expertise to every project.

Global Export Experience

We've successfully delivered Cuplock Steel Tube Scaffolding to over 100 countries across Asia, Europe, Americas, Oceania, and Africa. This extensive experience means you benefit from proven logistics solutions and reliable supply chain management.

Customization Support

Every construction project has unique requirements. We offer tailored solutions based on your drawings and samples, with cross bar specifications and configurations adaptable to your specific needs.

Strategic Location Advantage

Based in Rizhao, Shandong Province, our integrated logistics network includes international seaport, airport, and high-speed rail connections. This infrastructure ensures efficient delivery schedules for your global construction sites.

FAQ

Q：How many ledgers connect to a single Cuplock node?

A：Up to four ledgers or transoms lock securely into one top cup in a single action, maintaining precise 90-degree alignment for structural integrity.

Q：What safety advantages does this system offer?

A：The gravity-fed top cup cannot be accidentally tapped out like traditional wedges. You get a visible, secure lock that resists vibration and provides reliable performance throughout your project duration.

Q：Can this system integrate with traditional tube systems?

A：Yes. Since we use standard 48.3mm OD tubing, you can add traditional swivel and right-angle couplers for specialized bracing or cantilever sections when needed.

Q：What maintenance do the movable cups require?

A：Minimal maintenance is necessary. We recommend periodic inspection for concrete buildup or physical deformation of cup rims to ensure free sliding for smooth locking and unlocking operations.

Q：How does reusability impact project costs?

A：Our product withstands multiple project cycles without performance degradation. The durable Q235 construction and corrosion-resistant galvanization reduce your long-term equipment replacement costs significantly.

Contact Us

Ready to enhance your construction efficiency with reliable Cuplock Steel Tube Scaffolding? Contact our technical team at sdxingruiqp@126.com for customized quotations, technical specifications, and sample supply. We provide comprehensive support from design consultation through delivery logistics.
