What is ringlock scaffolding compared to all-round scaffolding

Ringlock scaffolding and all-round scaffolding are both modular systems built on the same wedge-lock rosette principle — and in most markets, the two terms describe the same product category. The distinction lies in branding and regional usage: "ringlock" is the generic engineering term for the wedge-and-rosette connection mechanism, while "all-round scaffolding" is the commercial designation widely adopted across European and industrial markets. Both share the same multi-directional rosette connector, self-locking wedge head, and load-rated vertical standard, making them functionally identical for procurement purposes.

Introduction to Ringlock and All-Round Scaffolding

What Is Ringlock Scaffolding?

Ringlock scaffolding is a modular access system that is identified by its perforated rosette disk that is welded along vertical standards at set intervals. Up to eight ledger or diagonal links can be made at the same time to each rosette. This lets you use three-dimensional geometry without any loose fits. EN 12810 and EN 12811 say that the system has to meet certain levels of load and movement, which must be proven by testing in a separate lab. Because of this, it is the best choice for shutting down petroleum plants, shoring up bridges, and doing repairs on ships where the structure must be predictable.

What Is All-Round Scaffolding?

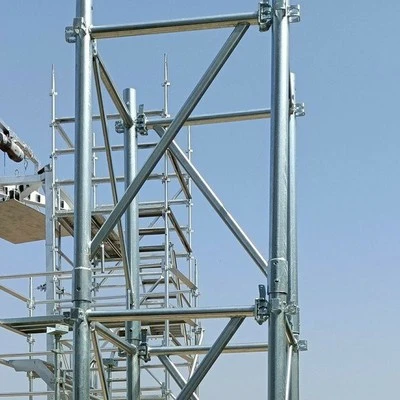

The ringlock system is used in construction in Europe and the Middle East. All-round scaffolding is the brand name for this system. The name "all-round" comes from the fact that the rosette node can join to anything in any direction. This system is made by Shandong Xingrui Building Materials Co., Ltd. from Q235 premium carbon steel and hot-dip galvanization applied at 60–80 microns per ISO 1461. It has a service life of 15–20 years in harsh site conditions like sea and chemical exposure.

How the Two Terms Relate in Practice

The practical lesson for B2B procurement managers is easy to understand: in a tender document, stating "ringlock" or "all-round scaffolding" draws from the same pool of products. Instead of focusing on names, suppliers should be qualified based on material approval, zinc coating thickness, load test paperwork, and CE marking. No matter what they call their method, a provider that can't make batch-traceable load reports isn't ready for industrial or European buying.

Systematic Comparison: Ringlock Scaffolding vs All-Round Scaffolding

Structural Design and Connectivity

The rosette node is the most important part of the structure. On a certified system, the rosette is fully penetration welded to meet the standards, and the spacing between the rosettes is kept within ±1 mm of the actual size. This controls the total amount of vertical error across tall shoring towers. By clipping diagonal bracing directly into the rosette, a rigid all-round scaffolding truss structure is created that can withstand lateral wind loads without the need for extra bracing hardware.

Material Quality and Surface Protection

When the materials come from a recognized manufacturer, they are the same for both methods. For normal scaffolding loads, Q235 carbon steel has enough yield strength, and Q355B is offered for heavy-duty shoring needs. According to ISO 1461, the best way to protect against corrosion over time is to hot-dip galvanize at 60–80 microns. The zinc layer reliably protects against oxidation for 15–20 years at these coating thicknesses. This is a big deal when figuring out the cost per use over a rental fleet.

Safety Compliance and Cost Factors

EN 12810 and EN 12811 set the European compliance baseline for façade scaffolding and shoring scaffolding, respectively. When a product has the CE stamp, it means that the maker has done the necessary conformity assessment, which includes third-party load testing with paperwork that can be tracked. When you spread the cost of a 15-year galvanized system out over 30 or more deployments, the cost per use is much lower than with tube-and-clamp options, even though the initial capital cost is higher.

Advantages of All-Round Scaffolding Over Traditional Alternatives

Faster Assembly Without Loose Fasteners

Tube-and-clamp systems need separate swivel couplers and right-angle clamps, but the wedge-lock device gets rid of those needs. A member of the crew places the wedge head into the rosette disk and hits it home with a hammer. This makes an automatic right-angle connection. Comparing to standard tube-and-clamp designs, independent time-motion studies show that all-round scaffolding this method cuts assembly time by about 50%. During a big industrial shutdown with hundreds of bays, that time difference cuts down on labor costs and shortens the time it takes to complete the critical path.

Here are the main structural and functional benefits of modular rosette systems that make them the best choice for difficult projects:

• Multi-directional connectivity: Each rosette accepts up to eight simultaneous connections, allowing the structure to follow curved surfaces, inclined planes, and irregular geometry found in ship hulls and spherical storage tanks without cutting or custom fabrication.
• Structural verticality control: The precision-welded rosette maintains ±1 mm spacing tolerance, keeping verticality error below 0.2% across the full stack height — critical for shoring towers exceeding 30 meters.
• Corrosion performance: A 60–80 micron HDG coating tested per ISO 1461 delivers documented protection in saltwater and chemical environments, directly relevant to refinery and shipyard maintenance contracts.

These features work together to fix the three most common problems with industrial scaffolding: taking a long time to set up because of complicated shapes, the structure moving around in tall setups, and early corrosion in harsh environments.

Load Capacity and Structural Reliability

There is a certified load capacity of up to 50 kN for each vertical standard in the Xingrui system. With the rigid truss effect created by diagonal bracing that is directly linked, the system can handle heavy loads during concrete pours and equipment lifts without the need for extra bracing. This ability to predict loads is very important for HSE engineers who need to give site owners structure calculations before the building starts.

Long-Term Cost Distribution

When a procurement manager spreads the cost of buying a hot-dip galvanized modular system out over its useful life, the cost per deployment is a lot less than the cost of buying new tube-and-clamp tools every so often. The system can be used again and again, and individual parts can be switched out without having to throw away whole bay sections. This makes the assets last even longer.

Procurement Insights for B2B Buyers

Supplier Qualification Criteria

Before placing large orders, procurement teams should make sure they have the following things: The paperwork for CE marking must include a standardized all-round scaffolding standard reference, load test reports that can be tracked by batch, magnetic induction test results that prove the thickness of the zinc coating, and records of the dimensions that are in line with the rosette spacing. In places like Europe and the Middle East, where client audits are common, a manufacturer who can't show these papers when asked is a compliance risk.

Customization and Lead Time

Shandong Xingrui can take orders for both 48 mm and 60 mm tube diameter series that are based on customer drawings and project requirements. The 79,800-square-meter building has 12 welding robots and six automatic production lines that make it possible to meet the delivery dates agreed upon in the frame deal. During the qualification stage, samples and technical help are available. This supports the standard sample-test-trial order procurement cycle in European business-to-business buying.

Buying vs. Renting Considerations

For builders who are working on multiple projects at the same time, having a certified modular fleet is more cost-effective per unit than renting at project rates over a period of several years. Properly coated parts have a service life of 15 to 20 years, which means the asset makes money over many contract cycles. Contractors who only need certain things for one project might find rental programs more cost-effective, especially if they don't need full EN-compliant stock.

How to Choose Between Ringlock and All-Round Scaffolding for Your Project

Match the System to the Site Geometry

Both methods work well for basic floor-to-ceiling shoring and normal rectilinear building facades. When working with curved shapes like ship decks, reactor tanks, and cooling towers, where a fixed-angle system would require expensive special work, the multi-directional rosette becomes a must. If any of these types of sites are in your project portfolio, selecting an eight-way rosette system is the best option.

Regulatory and Client Requirements

More and more, European public sector and industrial clients make documented EN compliance a contract condition, not just a desire. In many places, sending in a bid with scaffolding documentation that hasn't been checked or doesn't have the CE mark on it will automatically disqualify it. When you choose a company with ISO 9001, ISO 14001, and ISO 45001 standards, you can be sure that quality and safety management are in place for the whole production process, not just the product.

Total Lifecycle Value

The choice should take into account how often the asset is expected to be deployed, how much it will cost to store and move, and how much it will be worth at the end of the contract. Individual standards, ledgers, and rosette disks can be used again and again in a well-kept HDG modular system, so the system's salvage value stays high. This level of detail about the assets is an advantage that traditional welded-frame systems don't have.

Conclusion

All-round scaffolding and ringlock scaffolding are basically the same modular design. The main difference is the language used in different regions. When industrial contractors and maintenance service providers work in markets with a lot of rules, they don't choose based on the name of the product on the quote, but on things like material certification, zinc coating thickness, load test tracking, and source audit ready. A properly certified, hot-dip galvanized modular scaffolding system from a known manufacturer is faster to put together, more reliable, and more evenly spread out over time compared to traditional options.

FAQ

Can components from different manufacturers be mixed on the same structure?

Mixing is generally not recommended unless dimensional compatibility has been verified through load testing. While many manufacturers follow the 48.3 mm outer diameter standard, rosette geometry and wedge thickness vary between product lines. Structural calculations submitted for site approval must reflect the actual component combination in use.

What maintenance does the system require between deployments?

Post-project maintenance involves removing concrete debris from rosette perforations, inspecting wedge heads for deformation, and checking for mechanical damage to the galvanized surface. Localized zinc damage should be treated promptly with cold galvanizing compound to prevent base metal oxidation.

What is the maximum tower height for a freestanding configuration?

Standalone towers typically reach 50 meters or more when properly tied to a permanent structure at specified intervals. Height limits depend on ground bearing capacity, wind exposure class, and the structural calculation approved for the specific site.

Does Xingrui provide technical documentation in English?

Yes. Shandong Xingrui Building Materials Co., Ltd. provides full technical documentation, load test reports, and safety data sheets in English to support European and Middle Eastern procurement and site approval processes.

Partner With GREEN FORMWORK for Your Next All-Round Scaffolding Order

GREEN FORMWORK, which is backed by Shandong Xingrui Building Materials Co., Ltd., sells all-around scaffolding made from Q235 steel that is CE-certified and has ISO 9001, ISO 14001, and ISO 45001 management system approval. We offer batch-traceable documentation, factory audit access, and English-language technical support from the time you ask for a quote until the scaffolding is delivered, whether you are looking for an all-around scaffolding supplier or placing an order under a frame agreement. You can email us at sdxingruiqp@126.com or go to sdxingrui.com to ask for examples and details.

References

1. European Committee for Standardization. EN 12810-1: Façade Scaffolds Made of Prefabricated Components — Part 1: Products Specifications. CEN, 2003.

2. European Committee for Standardization. EN 12811-1: Temporary Works Equipment — Part 1: Scaffolds — Performance Requirements and General Design. CEN, 2003.

3. International Organization for Standardization. ISO 1461: Hot Dip Galvanized Coatings on Fabricated Iron and Steel Articles — Specifications and Test Methods. ISO, 2009.

4. International Organization for Standardization. ISO 9001: Quality Management Systems — Requirements. ISO, 2015.

5. Construction Industry Research and Information Association. CIRIA C703: Scaffold and Access Equipment in the Construction Industry. CIRIA, 2015.

6. Health and Safety Executive. HSG150: Health and Safety in Construction. HSE Books, 2006.
