Steel Building Formwork System – High-Precision Modular Concrete Forming Solution

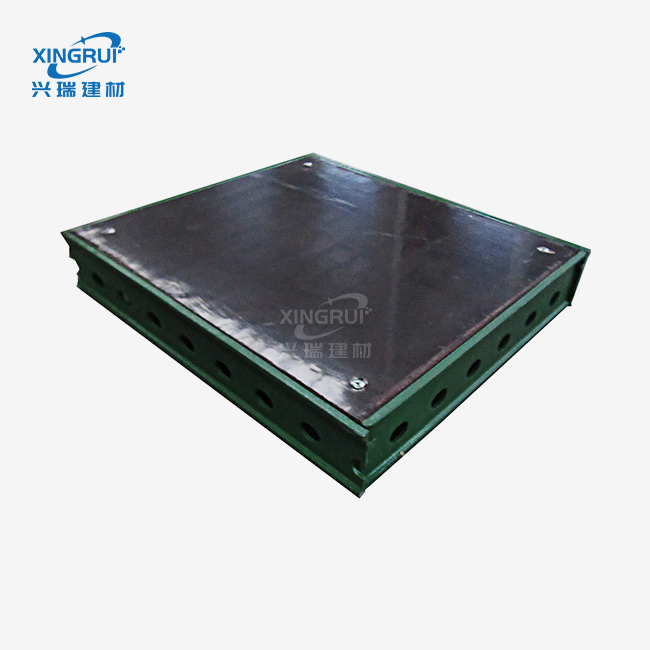

Shandong Xingrui Building Materials Co., Ltd. delivers an industrial-grade steel building formwork system engineered from Q235 hot-rolled steel plate with proven durability and precision. Our system features a 2.5mm panel thickness, 3mm reinforced ribs, and 55mm structural height, designed to withstand concrete pressures exceeding 60 kN/m² without deformation. With international modular sizing in 300-series and 200-series configurations and splicing holes spaced at 150mm intervals, this formwork achieves dimensional tolerances within ±2mm over 2-meter spans. Manufactured across 40,000+ square meters of standardized workshops using 12 welding robots and 6 automatic welding lines, our system supports 300+ turnover cycles—reducing your cost-per-use by over 70% compared to conventional timber alternatives.

What Makes Our System Different

The product from Xingrui combines rigidity with reusability. Unlike wooden forms that warp and degrade, our Q235 steel construction maintains structural integrity across hundreds of concrete pours.

You get tight joints and high-precision alignment. This eliminates post-pour correction work and drastically cuts plastering requirements. Our frame-and-rib integrated welding technology ensures consistent performance even in demanding high-rise and infrastructure projects.

The system is fully compatible with walls, columns, beams, and floor slabs. Whether you're constructing residential towers or industrial utility tunnels, you benefit from a versatile, one-stop forming solution.

Technical Specifications of steel building formwork system

Core Advantages for Professional Contractors

Our steel building formwork system is built for high-demand construction environments. You gain superior load-bearing capacity through robotically welded frames that distribute lateral concrete pressure evenly.

The modular design accelerates on-site assembly. Your crew can configure panels quickly without specialized tools, reducing labor hours and project timelines. Free assembly capabilities mean you adapt the system to diverse architectural requirements without compromising structural safety.

Durability translates directly to cost savings. With proper maintenance—cleaning residual concrete and applying protective coatings—you achieve 300 to 500 pours from a single set. This lifespan far exceeds timber's typical 5-10 uses, delivering measurable ROI for large-scale projects.

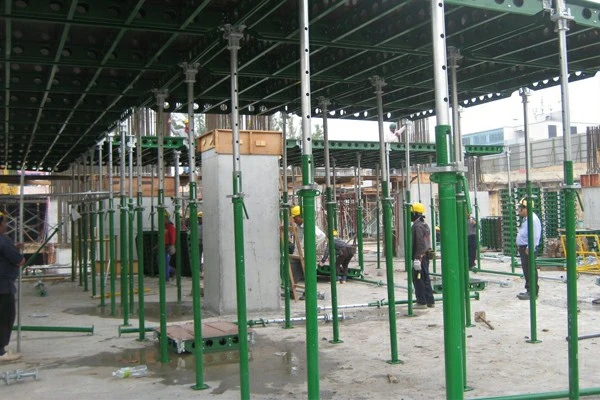

Applications Across Construction Segments

High-rise core walls benefit from the system's zero-tolerance verticality. Elevator shafts and shear walls demand precision that only rigid steel forming can guarantee. Cumulative alignment errors are eliminated, ensuring structural compliance with stringent safety codes.

Infrastructure projects rely on our formwork for bridge piers and abutments. The steel's moisture resistance and impact tolerance make it ideal for hydrological environments where wooden forms fail. Rapid mechanical stripping supports tight construction schedules without sacrificing concrete quality.

Industrial utility tunnels and repetitive underground structures see productivity gains through the system's modular cycling. In confined, high-humidity spaces, our steel panels maintain dimensional stability where timber would warp. Climbing and sliding configurations enable continuous vertical construction with minimal downtime.

Quality Assurance You Can Trust

Xingrui operates under ISO 9001 and ISO 14001 management systems. Every panel undergoes rigorous flatness checks, with tolerances held to ±2mm over 2-meter spans. Diagonal squareness is verified within ±1mm to ensure perfect alignment during assembly.

Welding integrity is validated through ultrasonic testing. Our 12 welding robots deliver consistent full-penetration welds that withstand hydrostatic concrete pressure without failure. Surface treatments include protective coatings that resist alkaline concrete environments, extending formwork life.

We manufacture using 4 cold roll forming equipment sets and 1 dedicated formwork profile forming line. This automation guarantees repeatability and quality across all 80+ product specifications. Your orders benefit from stable supply capacity and on-time delivery, backed by our 920-person workforce and 180 professional technicians.

Partner With a Proven Manufacturer

Shandong Xingrui Building Materials exports steel building formwork system solutions to over 100 countries across Asia, Europe, the Americas, Oceania, and Africa. Our 79,800-square-meter factory in Rizhao City provides integrated logistics through international seaport, airport, and high-speed rail connections.

We support custom processing based on your drawings and samples. Whether you need standard configurations or specialized engineering, our technical team delivers tailored solutions that meet your project specifications. Samples and technical assistance are available to help you evaluate system performance before full-scale deployment.

FAQ

Q：How does the initial cost compare to timber?

A：While upfront investment is 3-4 times higher, cost-per-use drops over 70% due to the 300+ turnover capability. You recoup investment quickly on medium to large projects.

Q：Can you customize for irregular architectural shapes?

A：Yes. Standard modular panels cover most applications, but we routinely engineer CNC-cut custom forms for complex geometries like radial walls or parabolic arches.

Q：How do you prevent concrete adhesion to steel surfaces?

A：We polish panels to a specific roughness coefficient and recommend high-grade chemical release agents. This combination ensures easy stripping and extends panel life.

Q：Is the system compatible with extreme weather?

A：Absolutely. Steel does not absorb water or swell, making it superior in both monsoon and arid climates. Thermal expansion joints are calculated for extreme heat conditions.

Q：What maintenance is required between pours?

A：Clean residual concrete with a plastic scraper, verify panel flatness, and reapply anti-rust oil or release agent. This simple routine maintains optimal performance throughout the formwork's lifecycle.
