Aluminum Building Formwork

Aluminum Building Formwork: High-Performance Modular Concrete Forming System

Shandong Xingrui Building Materials Co., Ltd. manufactures premium Aluminum Building Formwork using 6061-T6 aviation-grade aluminum alloy, designed for monolithic concrete construction. Our system is designed with integrated extruded panels in standard sizes of 100/200/300/400mm wide and 2400/2700/3000mm long with dimensional accuracy of ±1mm. This formwork has a maximum load capacity of 60kN/m² and can be flipped over more than 300 times, yet each panel weighs just 20-25kg/m² – allowing for human manipulation without the need of heavy gear.

Surface treatment with anodisation to provide rust-proof performance and no further plastering is needed. Our product is produced in our own 40,000 square metre factory with 12 welding robots and 6 robotic production lines. 3 times quicker for installation than standard steel systems and yet providing outstanding concrete surface quality.

Technical Specifications of Aluminum Building Formwork

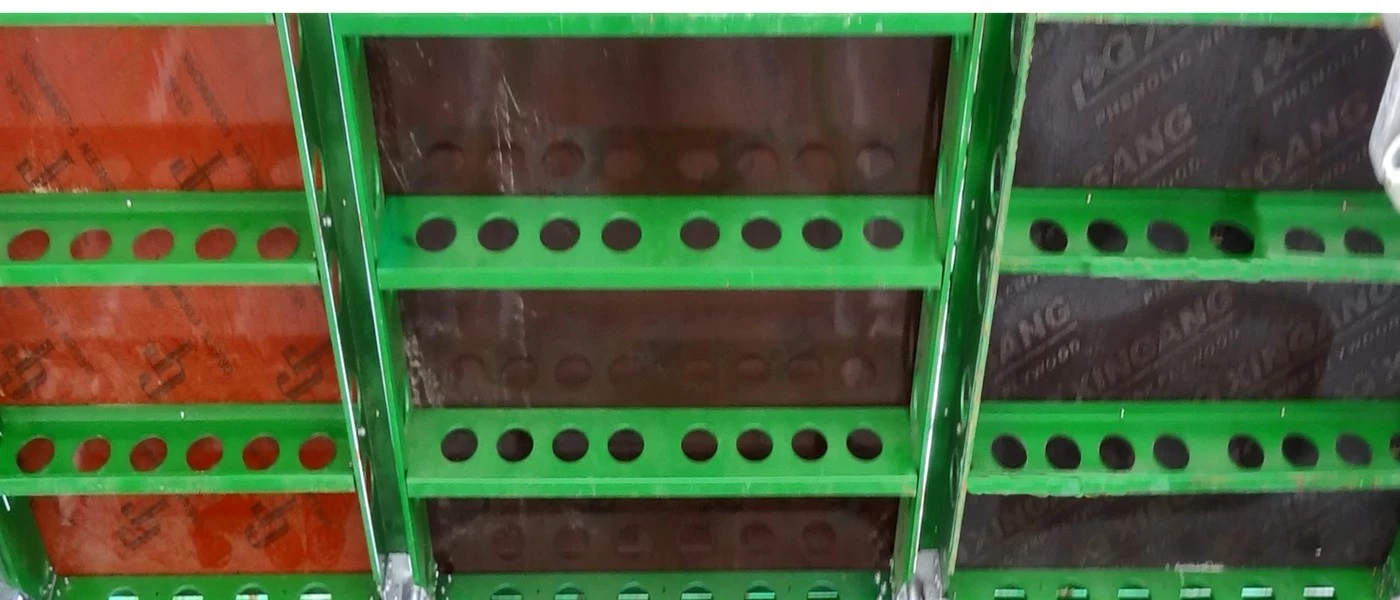

Why Choose Our Aluminum Formwork System

In your building projects, speed is important without sacrificing quality. Our formwork technology tackles major pain areas in the industry via technical excellence.

The one-piece extrusion procedure produces tight panel seams that will not leak slurry during concrete pouring. You get plaster free finishes right out of stripping the formwork saving a tonne of labour cost and project time.

The high strength-to-weight ratio changes the site logistics. No crane is required to place the panels, so your staff can do it by hand—saving you the price of crane hire. The system is very light, although it is structurally robust under significant lateral pressure.

Corrosion protection by surface anodisation ensures a longer service life in wet conditions where steel formwork would corrode. This robustness safeguards your investment via hundreds of pour cycles.

Core Performance Advantages

Speed and Efficiency

You can implement a 4-day construction cycle per floor in high-rise projects. The Early Stripping System allows slab and beam panel removal within 36-48 hours post-pour while vertical supports remain in place. This rapid turnover accelerates project completion and improves cash flow.

Precision Engineering

Dimensional accuracy within ±1mm ensures consistent concrete quality across all structural elements. Walls, columns, beams, and slabs align perfectly without correction work. This precision is critical for curtain wall installations and mechanical system integrations.

Labor Optimization

The modular design reduces skilled labor requirements by 40% compared to traditional timber formwork. Quick-lock connection systems enable fast assembly without specialized training. Fewer workers complete more work in less time.

Cost-Effectiveness Over Lifecycle

While initial investment exceeds timber alternatives, cost per use drops dramatically across 300+ cycles. Eliminate plastering materials and labor. Reduce construction waste to near zero. Your total project cost decreases substantially.

Application Scenarios

High-Rise Residential and Commercial Buildings

For projects exceeding 20 floors with repetitive layouts, our Aluminum Building Formwork maximizes return on investment. The monolithic pouring capability creates seamless structural integration. Contractors achieve consistent quality across hundreds of identical units.

Large-Scale Affordable Housing Projects

Government-backed housing initiatives benefit from standardization and reusability. You'll deliver uniform quality at lower cost per unit. The system adapts to local building codes while maintaining production efficiency.

Infrastructure and Underground Construction

Utility tunnels, subway stations, basement constructions need water-tight concrete under high humidity. The robust aluminium panels prevent the formwork from deforming under the soil pressure. Your constructions fulfil demanding water-tightness criteria without any corrective work.

Advanced Architectural Geometries

Specially designed panels for curving walls, cantilevered slabs, and unusual angles. The incorporation of BIM allows the precise pre-fabrication of complex components. You'll be doing complex designs with zero-tolerance fitting in seismic zones.

Excellence in Quality Assurance & Manufacturing

Our manufacturing plant in Rizhao, 79,800 square meters, is equipped with modern automation and strict quality control. Four sets of cold roll-forming equipment and one special line for the formation of formwork profiles maintain the uniform specifications of the panels.

Each component is quality tracked in real time from raw material inspection through final testing. ISO 9001 and ISO 14001 certifications are proof of our systematic quality management. CE certification is a sign that the product meets international safety standards.

The 180-strong technical team brings deep expertise in formwork engineering. They provide custom solutions based on your architectural drawings and site conditions. You receive technical support throughout project execution.

FAQ

Q：How does aluminum formwork reduce overall construction costs despite higher upfront investment?

A：The system pays for itself through multiple cost reductions. Elimination of plastering saves 15-20% on finishing costs. Reusability across 300+ cycles lowers cost per use to a fraction of disposable timber. Faster construction cycles reduce financing costs and overhead expenses.

Q：Can the formwork adapt to different floor plans within the same project?

A：Yes. The modular design allows reconfiguration using supplementary panels. You can adjust wall positions and room dimensions between floors. Our technical team assists with transition planning to minimize additional component requirements.

Q：What maintenance extends formwork service life?

A：Clean panels with water immediately after stripping. Remove concrete residue before storage. Apply quality release agents before each use. Store panels in dry conditions away from corrosive chemicals. Proper maintenance achieves 300+ turnover cycles.

Q：How does the system perform in extreme weather conditions?

A：Aluminum maintains dimensional stability from -40°C to +60°C. Unlike timber that warps in humidity, our panels retain accuracy regardless of weather. The material doesn't absorb moisture or expand, ensuring consistent concrete dimensions year-round.

Q：Is specialized equipment required for installation?

A：No heavy machinery needed. The 20-25kg/m² panel weight allows two-person manual handling. Quick-lock connections require only standard hand tools. Your crew becomes proficient after one complete floor cycle. This accessibility reduces equipment rental costs significantly.

Contact Us

Ready to accelerate your construction timeline and reduce costs with Aluminum Building Formwork? Our engineering team will design a formwork solution tailored to your project specifications. Contact us at sdxingruiqp@126.com for technical consultation and quotation.
