Modular Steel Formwork: Heavy-Duty Construction Solution for High-Load Projects

Shandong Xingrui Building Materials Co., Ltd. manufactures premium modular steel formwork engineered from Q235 high-grade structural steel, designed specifically for large-scale buildings, bridges, tunnels, and high-rise heavy-load construction. The system is constructed from 3.0mm thick panels and 5mm reinforcing ribs, with a single-piece load-bearing capability of more than 60kN and resistance to lateral pressure of 60-80 kN/m².

We have 40,000 square meters of standardised manufacturing facilities with 12 welding robots and 6 robotic welding lines, to provide constant quality for 300-500 reuse cycles. The system complies with ISO 9001, ISO 14001 and ISO 45001 management requirements and provides dependable performance for challenging construction situations.

Why Choose Steel Over Traditional Formwork Systems

Traditional lumber and plywood formwork provide serious operating issues. You are working with too much waste material, fluctuating dimensional accuracy and low turnover rates that increase project expenses.

Our steel formwork technology avoids such inefficiencies. The interconnecting panels are standardised and need very little cutting or hand fitting, so you may save a lot on labour costs. The non-porous steel surface gives fair faced concrete surfaces and frequently renders further plastering work at high expense unnecessary.

The tolerance of dimension can be ±1.0mm, which can be ensured by the precision design. This precision is crucial when you are dealing with structural components that need precise specifications for safety and regulatory compliance.

Technical Specifications & Performance Parameters of modular steel formwork

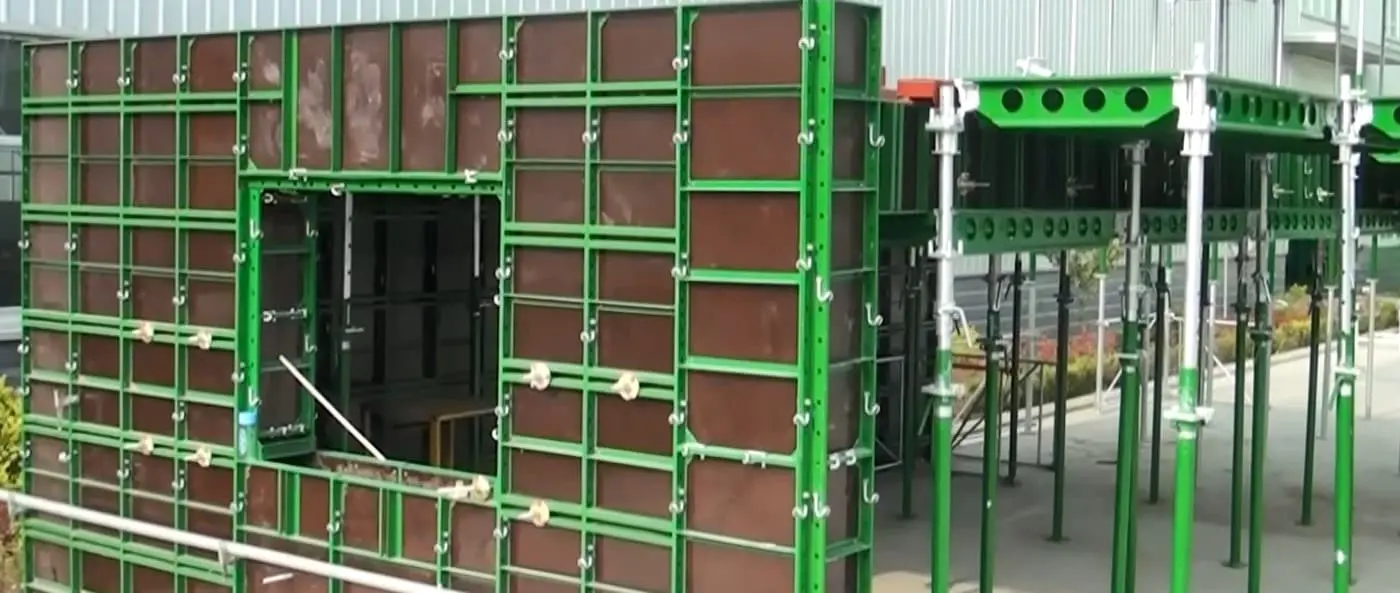

High-Rise Construction Projects

You can achieve 4-5 day floor cycles with our modular steel formwork system on residential and commercial towers. The rigid steel panels maintain verticality in shear walls and lift shafts where precision is non-negotiable.

Bridge & Tunnel Infrastructure

When constructing bridge piers, pylons, or tunnel linings, you need formwork that withstands immense hydrostatic pressure. Our thickened panels resist expansion deformation even under extreme pouring conditions in remote locations.

Industrial & Foundation Works

Complex foundation casting and water treatment tanks demand seamless joints and water-tightness. The interlocking design provides superior performance in geometric configurations that would challenge traditional systems.

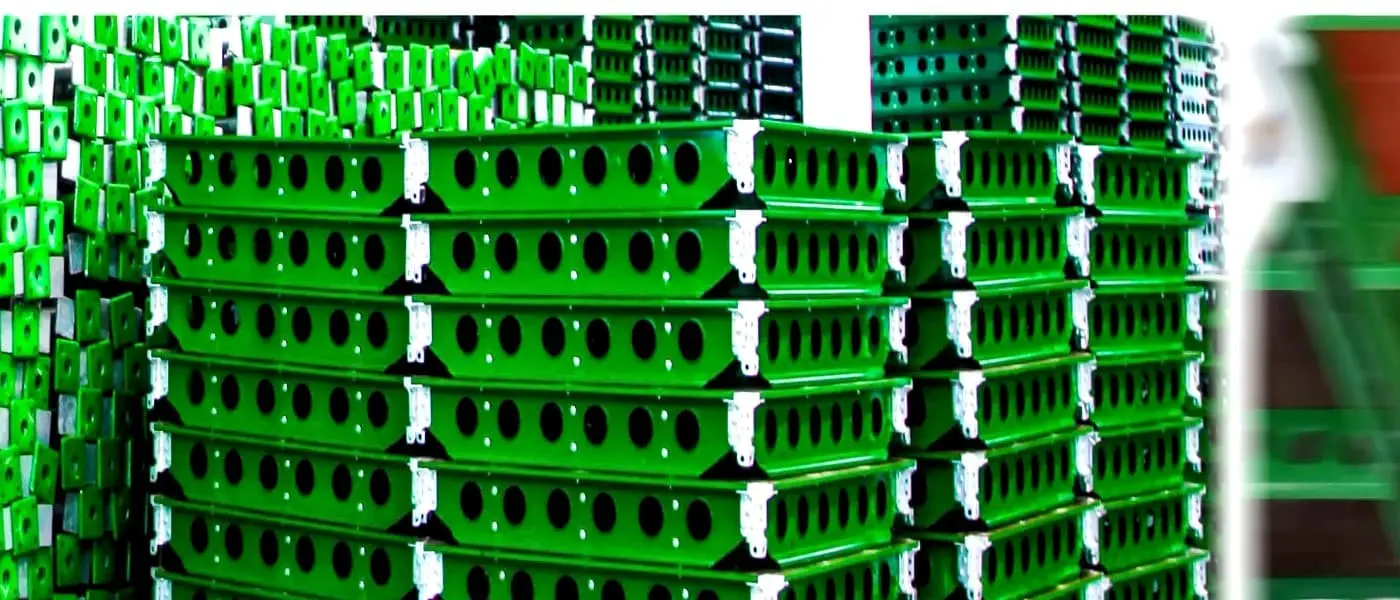

Manufacturing Excellence Behind Every Panel

Our 79,800-square-meter production base in Rizhao operates specialized workshops including cold bending, welding, steel casting, and electrostatic spraying facilities. This integrated approach ensures quality control at every manufacturing stage.

Four cold roll forming equipment sets and automated welding lines produce panels with consistent thickness and weld integrity. Every batch undergoes ultrasonic testing to verify 100% weld penetration before shipment.

The 180 professional technicians on our team bring deep expertise in construction formwork engineering. They've supported projects across 100+ countries, understanding the real-world demands you face on job sites.

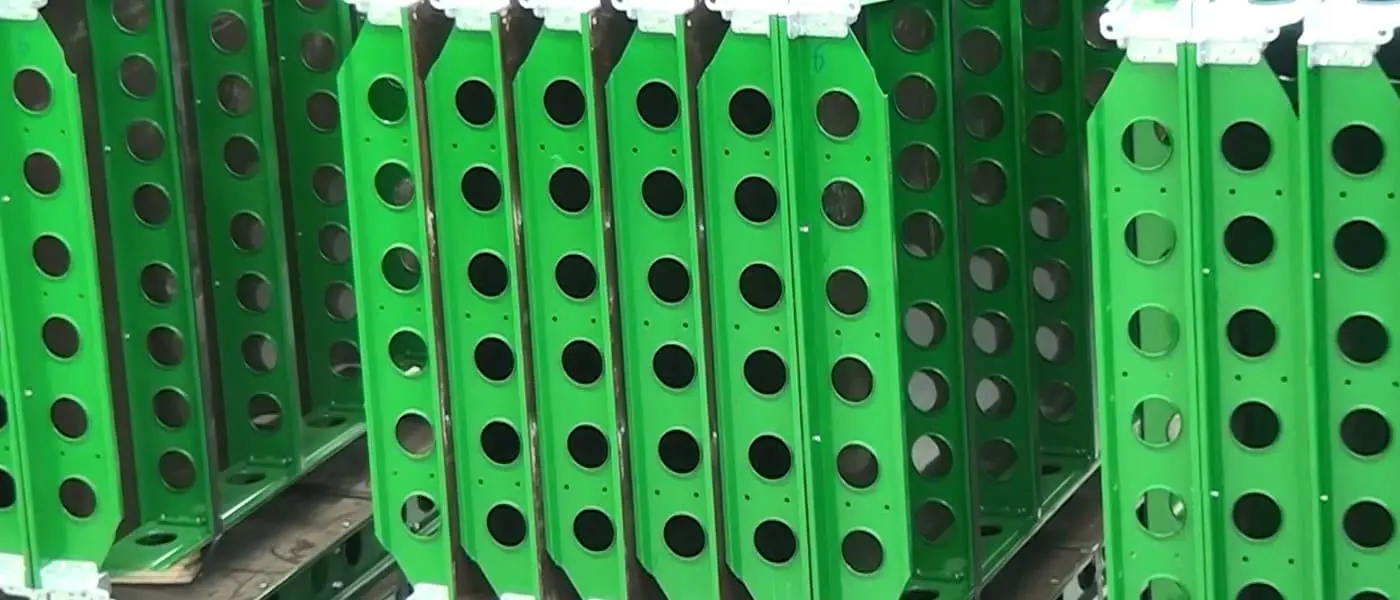

Quality Assurance You Can Verify

Dimensional Precision: Laser measurement confirms panel flatness within ±1.0mm tolerance and perfect diagonal symmetry.

Surface Durability: Cross-cut adhesion testing and magnetic induction thickness measurement guarantee coating performance. The anti-corrosion treatment protects against concrete's alkaline environment throughout hundreds of reuse cycles.

Load Testing Protocol: We conduct prototype stress testing to determine maximum pour rates without permanent deformation. This data helps you optimize your concrete placement schedules safely.

Field Compatibility: Random batch trial assemblies ensure interlocking components align perfectly under actual construction conditions.

Cost Analysis: Understanding Your Investment Return

The initial investment in modular steel formwork is higher than disposable alternatives. However, your return on investment typically occurs after 50-70 uses through multiple value drivers.

You eliminate material waste entirely since panels are fully reusable. Labor hours decrease dramatically with the simple assembly process—no skilled carpentry required. The rapid cycle times accelerate your project schedule, reducing financing costs and allowing earlier revenue generation.

With proper maintenance involving high-pressure cleaning and form release agent application, panels routinely exceed 300 reuses. This translates to substantially lower cost-per-pour compared to any organic material system.

FAQ

Q：How do I maintain the formwork between projects?

A：Clean panels immediately after stripping using high-pressure water to remove concrete residue. Apply a thin layer of form release agent or industrial oil before storage to prevent rust. This simple routine extends service life significantly.

Q：Can your system integrate with existing scaffolding?

A：Yes, our panels feature universal slot and pin configurations compatible with ringlock, cuplock, and frame scaffolding systems. This flexibility allows you to leverage existing equipment investments.

Q：What panel sizes do you stock for immediate delivery?

A：We maintain inventory of 1500×300mm and 1800×300mm panels suited for most heavy-load applications. Custom sizes are available based on your engineering drawings with lead times depending on order volume.

Q：Do you provide technical support during installation?

A：Our technical team offers guidance on assembly sequences, pour rates, and optimal bracing configurations. We can review your project specifications to recommend the most efficient formwork layout.

Q：How does shipping work for international orders?

A：Our Rizhao location provides direct access to international seaports, streamlining export logistics. We manage documentation, container loading, and coordinate with freight forwarders to ensure on-time delivery to your project site.

Contact Us

Request technical specifications, samples, or project consultation by contacting our export team at sdxingruiqp@126.com. Let's discuss how our modular steel formwork can improve your construction efficiency and concrete quality.
