Combined Steel Formwork

Combined Steel Formwork - Professional Modular Formwork System

Shandong Xingrui Building Materials Co., Ltd. delivers high-performance Combined Steel Formwork manufactured across over 40,000 square meters of standardized production facilities. Our modular system features Q235 carbon steel panels with thickness ranging from 2.5mm to 3.0mm, offering load-bearing capacity up to 60-80 KN/m². With national standard modulus design available in widths of 100/150/200/250/300mm and lengths of 900/1200/1500/1800mm, our formwork achieves 200-300+ reuse cycles. Backed by 180 professional technicians and advanced cold roll forming equipment, we ensure dimensional accuracy within ±0.5mm tolerance. Your construction projects benefit from our ISO9001-certified quality management system and extensive export experience to over 100 countries.

What Makes Our Combined Steel Formwork Different

Traditional formwork systems create excessive waste and require constant replacement. Our solution changes that entirely.

You get standardized modular components that assemble freely into any configuration you need. The peripheral flange design with standard P-hole spacing ensures seamless compatibility across all elements.

Each panel undergoes industrial-grade pickling and phosphating followed by high-temperature baking. This treatment delivers superior corrosion resistance with salt spray test ratings exceeding Grade 8.

Our 12 welding robots and 6 automatic welding lines guarantee consistent weld integrity. Every joint withstands vibration during concrete consolidation without compromise.

Technical Specifications

Superior Quality Control Standards

Quality assurance begins at raw material selection and continues through final delivery.

Dimensional Verification Process:

Your panels arrive with length, width, and diagonal deviation measured within ±0.5mm. This prevents cumulative errors when you scale assemblies across large construction areas.

Weld Integrity Testing:

Our CO2 shielded welding zones undergo non-destructive testing (NDT). You can trust every connection point to maintain structural integrity under heavy concrete loads.

Surface Planarity Inspection:

We measure each panel using 2-meter leveling tools. This ensures your concrete surfaces require minimal secondary plastering, saving you time and labor costs.

Coating Adhesion Standards:

Cross-cut testing confirms protective layers remain intact under abrasive concrete action. Your formwork resists rust contamination that could compromise concrete appearance.

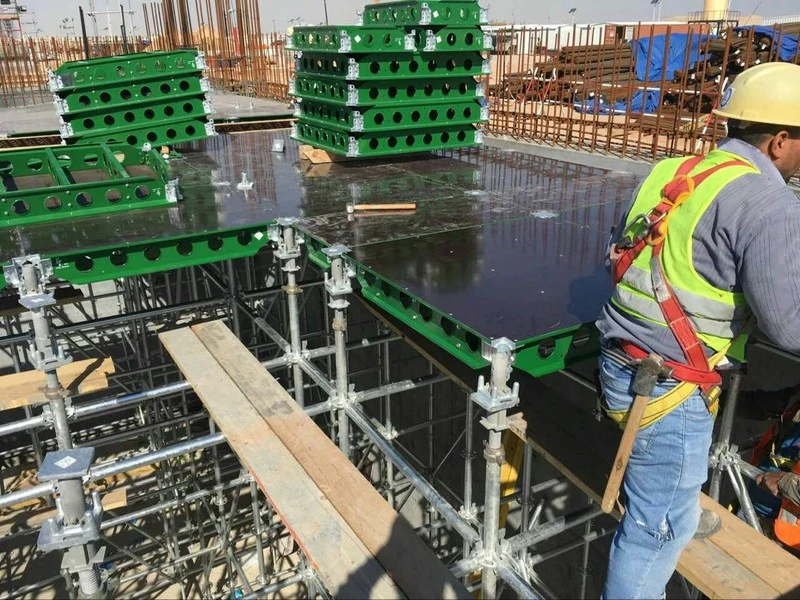

Versatile Application Scenarios

High-Rise Shear Wall Construction:

You need rigidity to maintain verticality across multi-story pours. Our system prevents bulging common in flexible alternatives, ensuring consistent wall thickness from foundation to roof.

Infrastructure and Bridge Projects:

Large-volume elements like bridge piers demand high pouring speeds. The robust design handles these requirements while delivering fair-faced concrete finishes that meet stringent infrastructure standards.

Tunnel and Underground Work:

Configure the system with specialized corner modules for complex internal geometries. Tight joint sealing maintains structural waterproofing even in high-humidity underground environments.

Irregular Structure Forming:

Your project features unique architectural elements. Our modular approach with Combined Steel Formwork​ adapts to special-shaped structures while maintaining the precision required for modern construction standards.

Key Performance Advantages

You benefit from factory-manufactured precision combined with onsite assembly flexibility.

Cost Efficiency:

With proper maintenance and quality release agents, your investment returns value across 200-300 reuse cycles. This dramatically reduces per-use costs compared to disposable alternatives.

Rapid Assembly System:

Fastened with U-clips and pins, installation requires minimal specialized training. Your crews complete assembly and disassembly quickly, accelerating project timelines without sacrificing quality.

Leak-Proof Joint Design:

High-precision U-shaped edges work with specialized sealing strips to prevent concrete leakage. This eliminates costly repairs and maintains surface finish quality.

System Compatibility:

Standardized hole patterns integrate seamlessly with existing scaffolding systems. You can combine our panels with traditional timber fillers where non-standard geometries require custom solutions.

Wide Project Adaptability:

Interchangeable accessories provide configuration options for diverse construction requirements. From residential buildings to commercial complexes, the system adapts to your specific needs.

FAQ

Q：How many times can I reuse the formwork panels?

A：With proper handling and quality release agents, you'll achieve 200-300 reuses. Some customers report even higher turnover rates with excellent maintenance protocols.

Q：What prevents concrete from leaking at joints?

A：We engineer high-precision U-shaped edges that mate perfectly. Combined with specialized P-clips and sealing strips, joints remain tight even under significant hydraulic pressure.

Q：Can your system work with our existing equipment?

A：Yes. Standard hole patterns ensure compatibility with common scaffolding systems. You can integrate our panels without replacing your current support infrastructure.

Q：How do you handle rust prevention for outdoor storage?

A：Industrial-grade surface treatment includes pickling, phosphating, and high-temperature baking. Your panels withstand extended outdoor storage without degradation.

Q：Do you offer custom configurations for unique projects?

A：Absolutely. Provide your CAD structural drawings and we'll manufacture custom corner modules, fillers, and circular elements that match your architectural requirements precisely.

Contact Us

Ready to improve your construction efficiency with reliable modular formwork like Combined Steel Formwork? Our technical team stands ready to discuss your specific project requirements.
