48 Series Ringlock Scaffolding

48 Series Ringlock Scaffolding - Professional Modular Support Solution

Shandong Xingrui Building Materials Co., Ltd. manufactures 48 Series Ringlock Scaffolding engineered with Q235 premium steel and 48.3mm outer diameter vertical standards. Our system delivers a rated single upright load-bearing capacity of 60kN, with standard 3.2mm wall thickness and 500mm disc spacing for optimal stability. Manufactured across our 79,800-square-meter production facility equipped with 12 welding robots and 6 automatic welding lines, this modular scaffolding enables rapid assembly for ordinary high-rise residential and civil building construction. Backed by ISO 9001, ISO 14001, and CE certifications, our product combines lightweight design with durability through repeated use, serving construction projects across more than 100 countries worldwide.

Technical Specifications of 48 Series Ringlock Scaffolding

Why Choose This Modular System

You need a scaffolding solution that balances strength, speed, and cost efficiency. Our system replaces traditional tube-and-clamp methods with fixed rosette-style connectors that eliminate loose fittings and reduce assembly time by up to 40%.

The 48.3mm tube diameter matches global accessory standards. This compatibility ensures you can source replacement parts easily and integrate the system into existing equipment fleets without costly modifications.

With cross bar modules designed to match conventional bay spacing, you achieve safe and stable erection for multi-story structures. The 60kN load capacity per upright provides sufficient margin for formwork support in residential towers while maintaining moderate weight for manual handling.

Core Performance Advantages

Rapid Assembly and Labor Savings

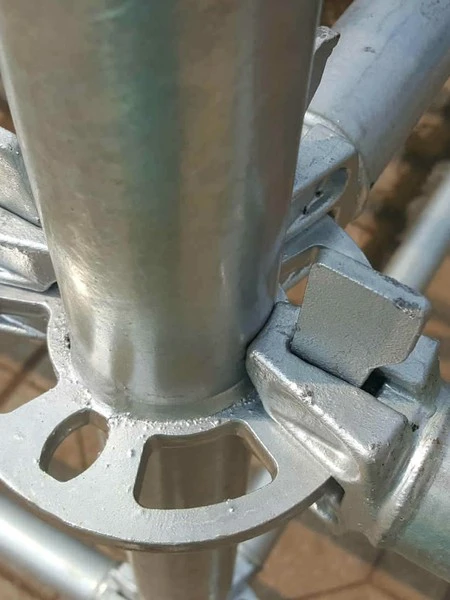

The self-locking wedge mechanism requires no loose bolts or additional tools. Your crews simply insert ledgers into rosette openings and hammer the wedge into place. This design minimizes human error and accelerates installation on tight construction schedules.

Structural Integrity Under Load

Each rosette provides eight connection points, distributing forces evenly across the structure. The 3.2mm wall thickness optimizes the strength-to-weight ratio, delivering torsional rigidity and shear resistance that meet EN 12810-1 standards.

Extended Service Life

Our hot-dip galvanization process applies a protective zinc coating of ≥80 microns to 48 Series Ringlock Scaffolding. This finish shields the steel from corrosion in humid coastal climates and industrial environments, ensuring reusability across multiple projects for over 15 years.

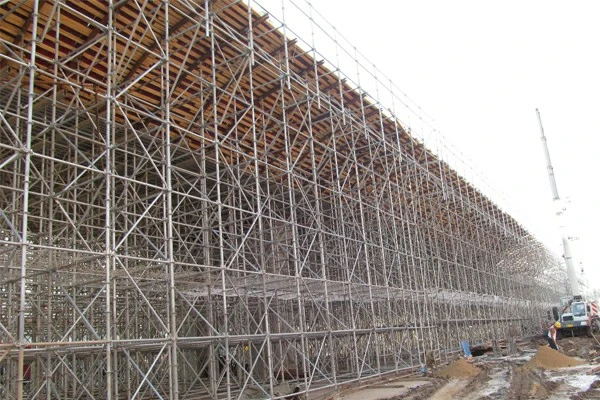

Practical Applications

High-Rise Residential Construction: The 500mm rosette spacing and modular cross bars adapt to varying floor heights and facade layouts. You can configure the system for both perimeter access and internal shoring.

Bridge and Infrastructure Shoring: The 60kN axial load capacity supports heavy concrete formwork in viaduct construction. The system's vertical standards maintain alignment under concentrated loads, preventing lateral deflection during pours.

Industrial Maintenance Access: The 360-degree connection flexibility allows you to navigate around complex pipe networks and equipment installations. The standardized components enable quick reconfiguration as maintenance zones shift.

Quality Control Protocol

We implement full-process quality management across our 180-person technical team. Raw material analysis using spectrometers verifies chemical composition before production. Ultrasonic weld testing confirms rosette-to-standard joint integrity.

Dimensional tolerance checks ensure verticality within ±1mm. Salt spray testing validates galvanization layer thickness and adhesion. Load capacity testing of complete assemblies confirms compliance with rated safety factors before shipment.

Our ISO 9001-certified traceability system tracks every batch from cold roll forming through electrostatic spraying, providing documented quality assurance for your procurement records.

Packaging and Custom Services

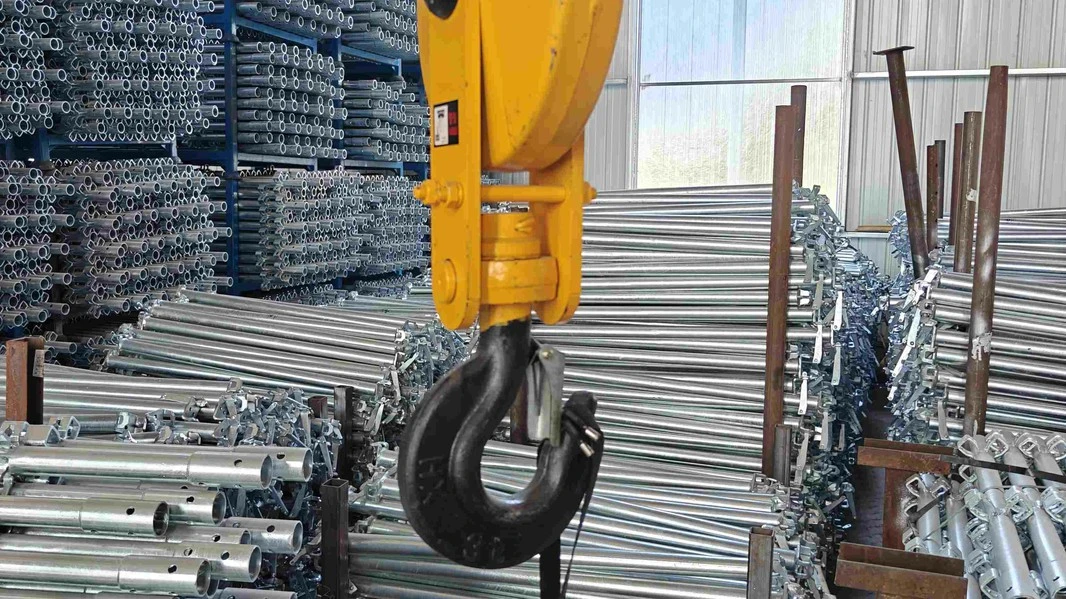

We pack vertical standards in bundles secured with steel strapping. Cross bars and accessories ship in wooden crates or according to your specified export packaging standards. Custom production based on your drawings and samples is available through our 5 semi-automatic forging lines and cold bending workshops.

FAQ

Q：What distinguishes the 48 series from heavier-duty systems?

A：The 48 series prioritizes facade access and medium shoring applications with a balance of load capacity and portability. Heavier 60mm tube systems serve massive civil engineering projects requiring higher load ratings.

Q：Can this system perform in extreme weather conditions?

A：Yes. The Q235 steel maintains structural integrity in temperatures from -20°C to +50°C. For sub-zero mining or high-altitude projects, we offer impact-tested Q355D grade upon request.

Q：How do you ensure compatibility with existing equipment?

A：While our 48.3mm tube follows industry-standard dimensions, rosette thickness and wedge angles vary between manufacturers. We recommend fit-testing before integrating components from different suppliers.

Q：What inspection intervals do you recommend?

A：Inspect wedge pins for deformation after each project cycle. Check galvanization for scratches or thin spots every six months. Replace any components showing wear that could compromise locking function or load transfer.

Q：What maximum height can these towers achieve safely?

A：With proper base-to-height ratios, adequate tying to permanent structures, and engineering approval, the product configurations regularly exceed 50 meters on commercial high-rise projects.

Contact Us

Our team responds within 24 hours to technical inquiries regarding 48 Series Ringlock Scaffolding. Reach us at sdxingruiqp@126.com to request specifications, load charts, or quotations tailored to your construction timeline.
