60 Series Heavy-duty Ringlock Support

60 Series Heavy-duty Ringlock Support | Heavy-Load Scaffolding System

Shandong Xingrui Building Materials Co., Ltd. manufactures the 60 Series Heavy-duty Ringlock Support using premium Q235 steel with 60.3×3.2mm thickened welded pipes. This modular scaffolding system features an eight-hole chrysanthemum disc design engineered for extreme load-bearing performance. Each single upright delivers a load capacity of 120kN, with a maximum step distance of 1.5m, making it ideal for ultra-high and long-span formwork engineering. With over 40,000 square meters of standardized workshops and 12 welding robots, our facility ensures precision manufacturing. The system is certified under ISO 9001, ISO 14001, and ISO 45001 management systems, guaranteeing reliability for large-span bridges, heavy-load floor slabs, and tunnel support construction.

What Makes Our Heavy-Duty Ringlock System Stand Out

The product solves critical challenges in high-load civil engineering projects. Traditional scaffolding often fails under extreme pressure during mass concrete pouring. Our system addresses this with a gravity-based self-locking rosette mechanism.

The 60mm outer diameter provides 50-70% higher vertical load capacity compared to standard 48mm systems. This superior moment of inertia ensures stability in bridge construction and deep foundation shoring. Your project benefits from reduced labor costs and faster assembly times.

Our eight-connection node design creates rigid, multi-directional joints that maintain geometric integrity under pressure. The thickened uprights and reinforced discs double the single upright load capacity. This engineering precision meets international standards including EN 12810/12811 and AS/NZS 1576.

Technical Specifications of 60 Series Heavy-duty Ringlock Support

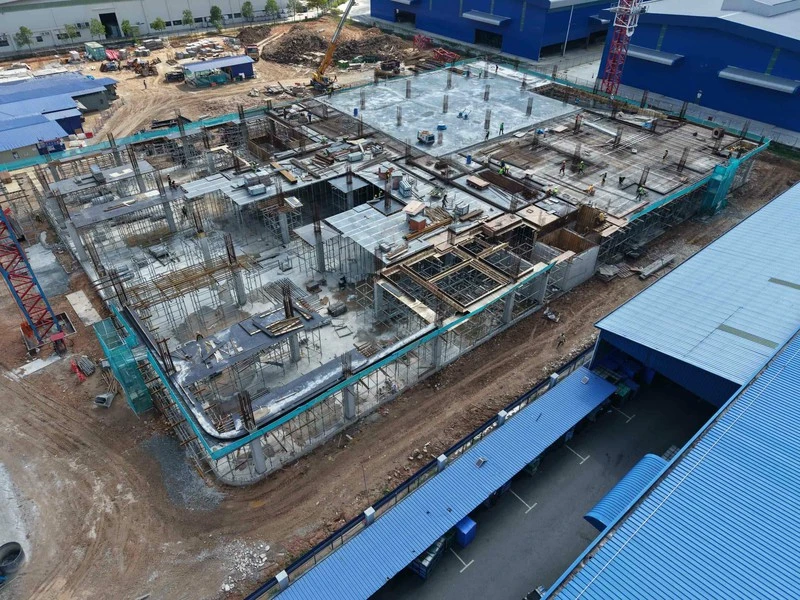

Key Applications in Construction Projects

The 60 Series Heavy-duty Ringlock Support excels in three primary scenarios requiring exceptional structural safety.

Large-Span Bridge Construction: Your project gains primary shoring for heavy box girder formwork. The system handles concentrated wet concrete weight with superior stability. Engineers trust this solution for spans exceeding 30 meters where failure is not an option.

Industrial Power Plants & Hangars: You can achieve ultra-high clearance support for heavy roof structures. The system's slenderness ratio resistance makes it perfect for projects requiring vertical heights above 30 meters. This eliminates the need for complex timber formwork.

Subway Stations & Deep Foundations: Your underground projects benefit from robust lateral and vertical support frames. Rapid assembly and disassembly accelerate project timelines. The system maintains safety in humid environments where corrosion threatens conventional scaffolding.

Superior Material Engineering & Quality Control

Our manufacturing process ensures consistent performance across every component. We source Q235 steel that undergoes tensile and yield strength testing before production. This raw material verification guarantees structural integrity.

Full-penetration automatic welding creates bonds between rosettes and tubes. Our quality team performs ultrasonic testing to verify weld strength. This process eliminates weak points that could compromise your site safety.

Hot-dip galvanization applies a protective zinc coating of 65-80 microns thickness. Salt spray testing and magnetic thickness gauging verify corrosion resistance. Your investment lasts over 20 years, even in coastal or industrial environments.

Dimensional tolerance monitoring ensures seamless component compatibility. Destructive vertical compression tests validate theoretical safety factors of 2:1 or higher. You receive equipment that meets real-world pressure demands.

Installation Advantages & Operational Efficiency

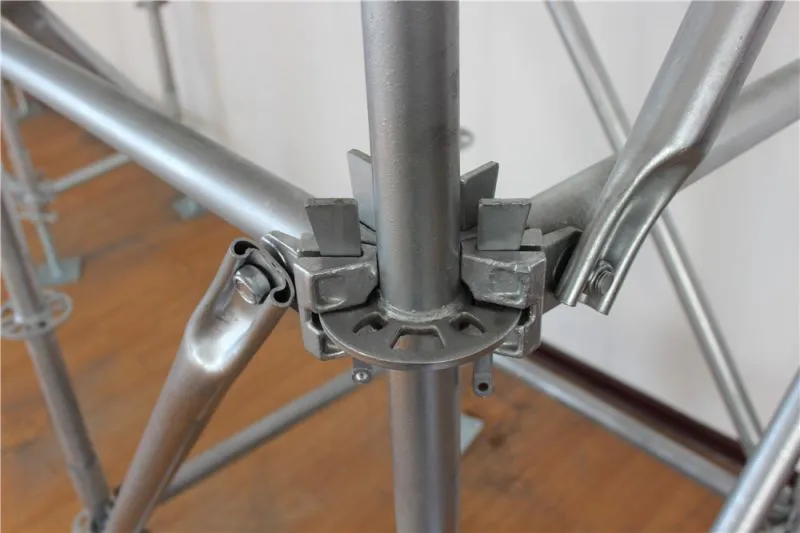

The gravity-based self-locking rosette system allows eight connections at a single node. You simply position the wedge and secure it with a light hammer strike. This creates a friction-locked, zero-play joint in seconds.

Traditional tube-and-clamp systems require multiple workers and extended setup times. Our 60 Series Heavy-duty Ringlock Support reduces labor costs through rapid assembly. Your crews complete installations faster without sacrificing safety.

The 1.5m maximum step distance provides flexibility in vertical spacing. You can adapt the configuration to specific formwork requirements. Custom sizing options accommodate unique project specifications while maintaining reusability across multiple sites.

Packaging & Delivery

We package components in steel bundles with protective wrapping to prevent transit damage. Standard containers accommodate efficient loading for international shipment. Our location in Rizhao provides direct access to international seaport facilities.

Bulk orders receive customized packaging solutions that optimize container space. You benefit from reduced shipping costs and faster delivery times. Our logistics team coordinates with your project schedule to ensure timely arrival.

FAQ

Q: What load capacity advantage does the 60 series offer over 48mm systems?

A：The 60 series provides 50-70% higher vertical load capacity due to its larger moment of inertia. This makes it suitable for heavy-load applications where standard scaffolding fails.

Q: Can I use 60 series standards with 48mm series components?

A：Generally no. Rosette dimensions and wedge sizes are optimized for the 60mm diameter. Some hybrid adapters exist for non-load-bearing components, but we recommend complete system compatibility.

Q: How does galvanization extend the system's lifespan?

A：Hot-dip galvanizing prevents internal and external oxidation. This extends service life beyond 15 years, even in harsh coastal or industrial environments where moisture accelerates corrosion.

Q: What safety standards does your system meet for international projects?

A：Our product adheres to European EN 12810/12811 and American ANSI/SSFI SC100 standards. Independent third-party test reports from SGS and TUV support compliance verification.

Q: Is special training required for installation teams?

A：The wedge-lock mechanism is intuitive. Basic training covers proper wedge placement and hammer striking techniques. Your crews achieve proficiency quickly, reducing onboarding time compared to complex systems.
