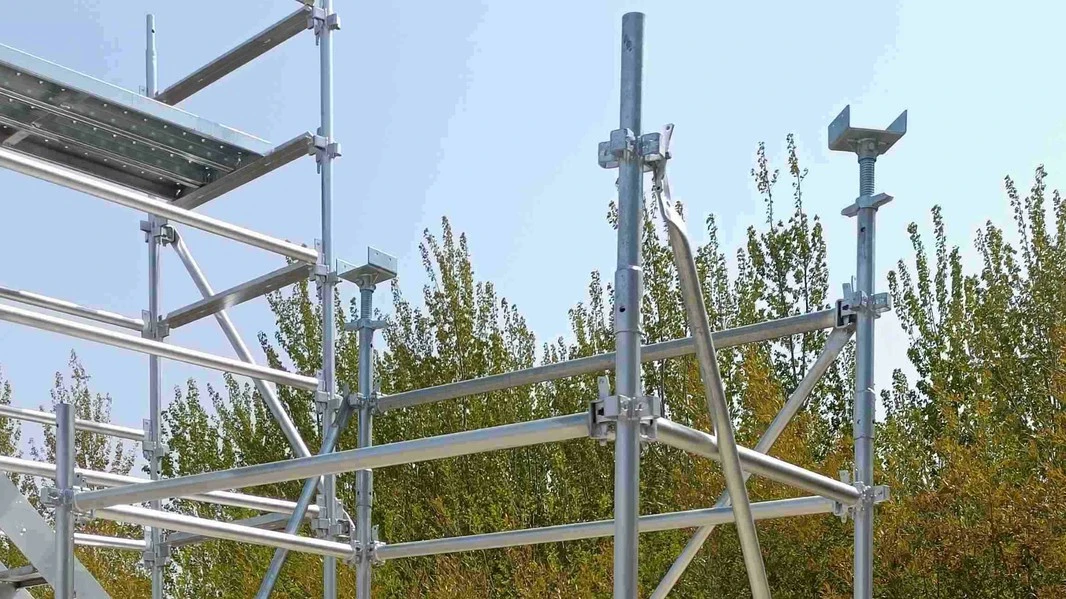

Cup Lock Scaffold System: Professional Heavy-Duty Shoring Solution

Shandong Xingrui Building Materials Co., Ltd. brings you an industrial-grade cup lock scaffold system engineered for demanding construction environments. This modular steel scaffold system is made of Q235 premium steel and incorporates cup-lock connection technology, fabricated in our 79,800-square-meter factory with 12 welding robots and 6 automated welding lines. Our system offers a good loading capacity between 40 and 60 kN per standard, depending on the spacing of the bracing and the thickness of the pipe (3.2 mm). We have 180 professional technicians and more than 920 skilled workers. All parts are strictly tested according to international standards such as ISO9001, ISO14001, CE and so on. We provide you with reliable scaffolding for the complicated construction projects.

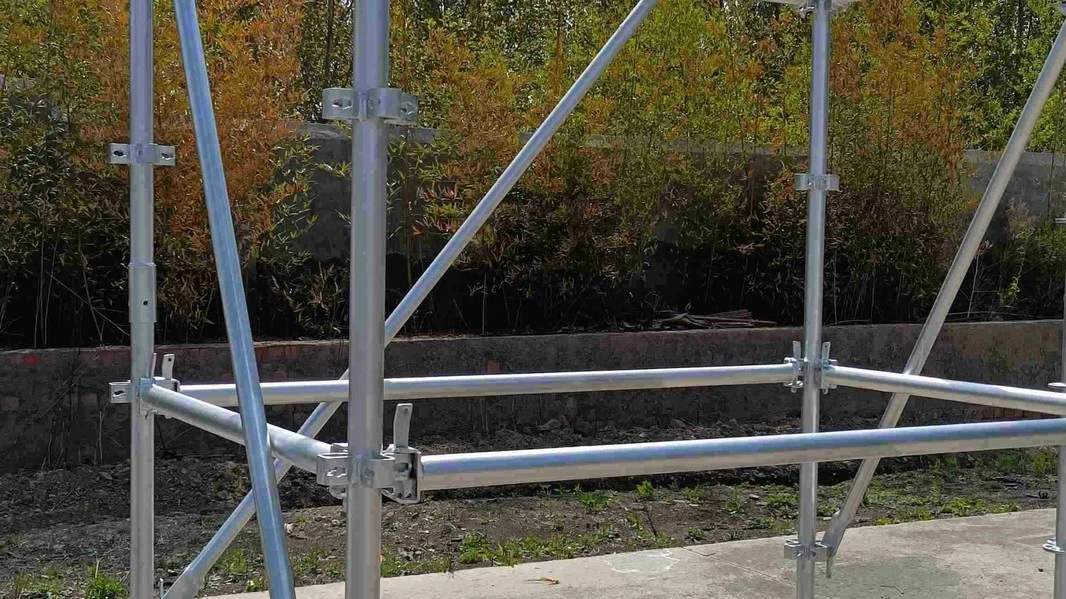

Advanced Connection Technology for Maximum Stability

The product utilizes a unique circular node point where fixed lower cups are welded onto uprights at precise 500mm intervals. The movable upper cup mechanism allows you to connect up to four horizontals to one vertical standard in a single locking action.

This integrated design eliminates loose fasteners that typically cause delays and safety concerns on construction sites. The upper and lower cup locking structure creates firm bar connections that prevent displacement during operation.

Your construction teams benefit from anti-detachment and anti-loosening features that significantly reduce inspection workload. The system maintains structural integrity even under heavy concrete pressure and cantilevered loads.

Technical Specifications of cup lock scaffold system

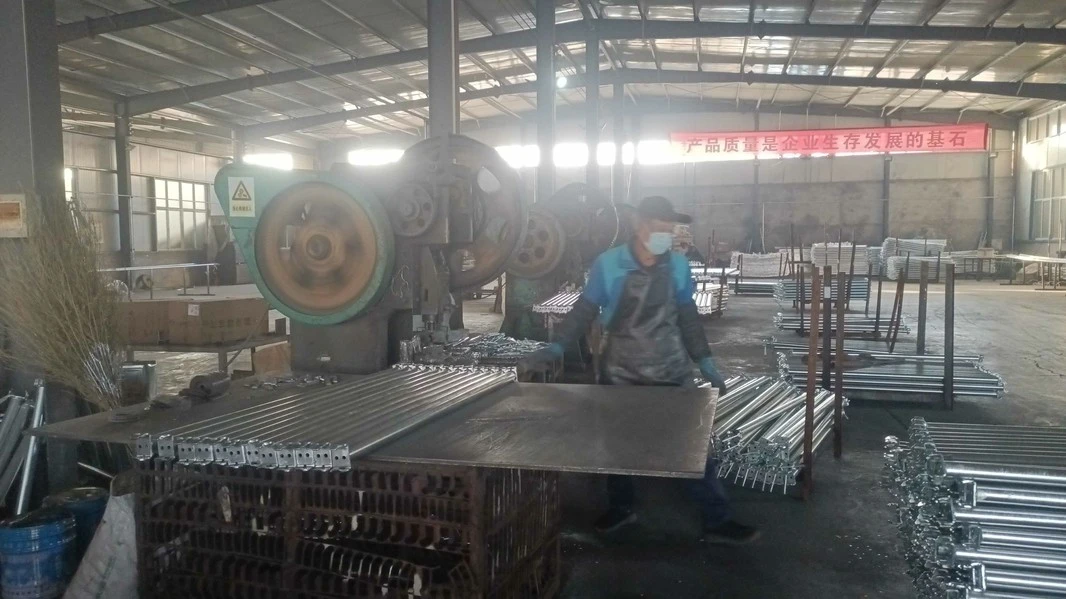

Manufacturing Excellence Behind Every Component

Our specialized cold bending and stamping workshop produces dimensionally accurate components with precise tolerance testing. The ledger blade fits the cup curvature perfectly to eliminate structural sway.

We employ 360-degree CO2 robotic welding technology to ensure flawless integration between cups and standards. Each welded joint undergoes rigorous inspection to prevent structural failure under operational loads.

Our electrostatic spraying workshop applies protective coatings that pass minimum 500-hour salt spray testing. This galvanized protection ensures your scaffolding remains corrosion-resistant in humid or coastal climates.

Versatile Applications Across Construction Sectors

Infrastructure and Civil Engineering Projects

The system serves as the preferred choice for bridge shoring and heavy-duty falsework applications. Its rigid framework handles massive concrete pressure during casting operations while maintaining dimensional accuracy.

Industrial and Oil & Gas Facilities

Rapid assembly without loose parts makes this solution ideal for maintenance turnarounds in refineries. You can deploy scaffolding quickly in tight spaces while meeting stringent safety regulations.

High-Rise Commercial Construction

The framework provides high-capacity support for floor slabs and versatile external access facades. It adapts to curved or irregular building geometries while maintaining stability in high-wind environments typical of skyscraper projects.

Safety Features and Quality Assurance

Our complete quality control system tracks every component from raw material verification through finished product testing. Mill Test Certificates (MTC) confirm chemical composition and yield strength for all steel materials.

Load capacity testing to destruction validates structural performance under extreme conditions. The diagonal bracing configuration delivers excellent lateral stability, making the system safer than traditional scaffolding in seismic zones.

The anti-overturning capacity of full hall frame configurations provides additional safety margins. Your construction teams work confidently knowing the structure meets international safety benchmarks.

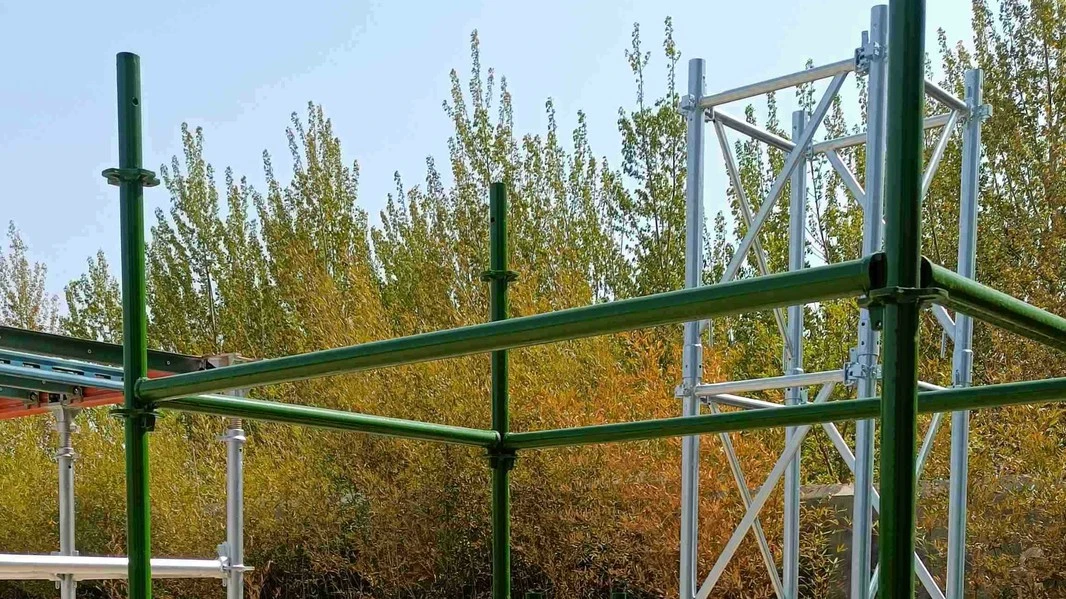

Reusable Design for Long-Term Value

Built to specification standards, the cup lock scaffold system delivers exceptional reusability across multiple projects. The durable galvanized finish withstands repeated assembly and disassembly cycles without performance degradation.

Simple maintenance requirements include periodic cleaning of threads and verification of the cup's free movement. The drop-and-lock mechanism maintains reliability throughout the system's extended service life.

Your investment in quality scaffolding reduces replacement costs and minimizes downtime between projects. The system's modularity allows you to expand or reconfigure layouts as project requirements evolve.

FAQ

Q：Can the system be used for mobile tower applications?

A：Yes, you can integrate heavy-duty castor wheels while ensuring the height-to-base ratio complies with EN 1004 standards for mobile access towers.

Q：Is this compatible with other modular scaffolding systems?

A：While both cuplock and ringlock systems use 48.3mm tubes, the connection mechanisms differ. Adapters are available, though mixing systems is generally discouraged by safety standards.

Q：How does performance compare in vibration-prone areas?

A：The rigid node connection combined with diagonal bracing offers excellent lateral stability, making it significantly safer than traditional tube-and-clamp methods in seismic zones.

Q：What maintenance does the sliding upper cup require?

A：Minimal maintenance is needed. Periodic inspection ensures threads remain clean and the cup moves freely to maintain proper locking function.
