Best American Type Scaffold Frame for High-Rise Construction

If you manage procurement for a North American construction supply chain, choosing the right steel scaffold system directly affects your job-site safety record, your landed cost per unit, and your ability to reorder reliably through peak season. The american type scaffold frame—a door-type modular steel structure built to OSHA and ANSI A10.8 standards—has dominated residential and commercial scaffolding in the U.S. and Canada for decades. This guide walks through specifications, system comparisons, safe assembly, and sourcing strategy so you can make a confident purchase decision backed by verified data.

Understanding American Type Scaffold Frames

What Defines the American Frame Design

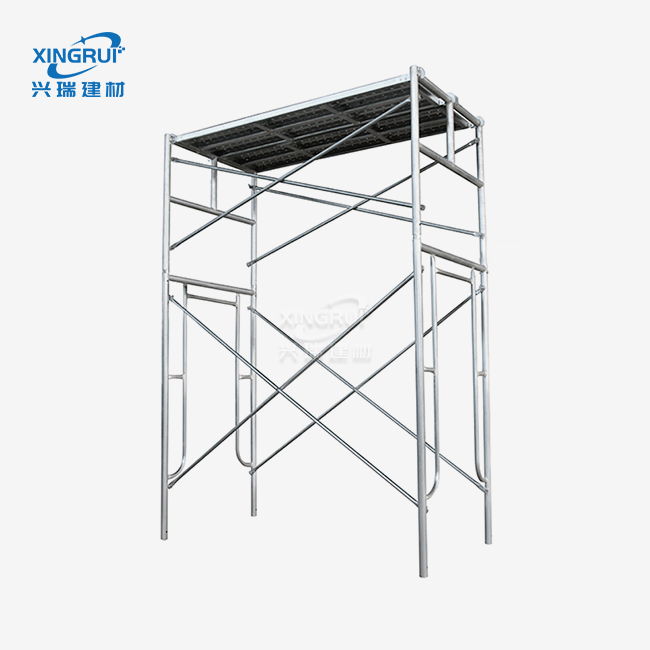

The American scaffold frame is shaped like a door: it has two straight legs that are joined by a horizontal header at the top and a rung in the middle, making a rigid entrance. The standard size is 1700 × 1219 mm, which is about 5 ft × 4 ft. Frames are connected vertically with coupling pins and laterally with diagonal cross braces. This shape has been used by masonry teams and general builders in North America for many years, and it is required by OSHA 29 CFR 1926 Subpart Q on all U.S. job sites.

Key Specifications That Matter to Procurement Teams

The grade of the material and the shape of the tube affect how well it handles load. The standard in the business is 42.4 mm outer diameter and 2.0 mm wall thickness structural steel tubing made of Q235 or a similar steel. A standard tower assembly can hold more than 50,000 pounds at that size, which is enough for heavy masonry lifts on multi-story facades. The connection pin hole's accuracy is kept to ±0.5 mm, which means that stacked frames stay straight without having to be shimmied or re-braced in the middle of a job.

Frame Variants for High-Rise Applications

High-rise work is done by two main types. Mason frames (5 ft × 5 ft) can hold big loads of bricks and mortar at each working level and have built-in rungs for easy access. Walk-thru frames (5 ft × 6 ft 4 in) let people walk through at ground level while a building's facade is being fixed up or windows are being replaced in an occupied building. Both versions can use the same cross braces, guard rails, and base plates, which keeps your extra parts collection small.

Comparing American Type Scaffold Frames with Other Scaffold Systems

American Frame vs. Ringlock Scaffolding

When the geometry isn't straight, like in curved walls, multi-level stairs, or confined industrial plants, Ringlock systems work really well. They do, however, need more parts per tier and more skill to set up properly. The american type scaffold frame can be used for straight residential or commercial facades. It can be put up faster with less training, and replacement parts are the same from almost all North American suppliers.

American Frame vs. Kwikstage and European Systems

Engineers can be more creative with their designs when they use Kwikstage and European tube-and-fitting systems, but it takes longer to put them together and has more parts. Since American door frames are already made, there is a lot less work to do on-site. It's also easier to make sure that American frames are in compliance with OSHA rules because OSHA 29 CFR 1926.452(b) clearly states the system's geometry.

Choosing the Right System for Your Project Scale

It's better for North American distributors who sell a lot of frames to renovation contractors and small rental fleets because parts can be used with different brands as long as the OD and lock type are the same, there are a lot of trained assembly crews available, and each frame can be sold or rented again, so it's not a one-time cost. There isn't another system in the North American market that has the same level of knowledge and liquidity.

Assembling and Using American Scaffold Frames Safely

Step-by-Step Assembly for Multi-Story Stacks

First, put the adjustable base plates on flat, well-packed ground. Place the first set of frames, connect the cross braces on both sides, and make sure the building is level before adding the second level. Put the coupling pins through the leg sockets and make sure they are fully seated before loading. OSHA says that the ratio of height to base can't be more than 4:1 without wall ties or outriggers. With the right ties, frames can go up more than 125 feet without harm.

OSHA-Required Inspection Protocol

Before each work shift, someone who knows what they're doing must check the platform. The inspection list includes things like bent rungs, cracked welds at the header-to-leg joints, pin holes that are too long, and surface pitting that could mean corrosion is happening inside. Frames with a hot-dip galvanized (HDG) coating thicker than 65 microns offer self-healing zinc protection that greatly increases service life in coastal or high-humidity areas, lowering the number of times that frames need to be taken out of service.

Maintenance Practices That Extend Frame Life

After each project, clean out the pin holes and look over the welds in good lighting. To stop rust from spreading, powder-coated frames should have any chips fixed before being stored outside. HDG frames can be built again outside with only a few safety precautions. One big economic benefit is that the american type scaffold frame can be used again and again. With the right care, a good Q235 steel frame can be used for dozens of projects before it needs to be retired.

Procurement Guide for American Type Scaffold Frames

Direct Factory Sourcing vs. Distributor Purchasing

Right now, a lot of distributors in North America buy things through middlemen, which raises the landed cost by 15–25%. That extra layer is taken away when you buy directly from a certified Chinese manufacturer that has ISO 9001 quality management and can provide documentation in English. The usual cycle for buying directly from a factory is one to three months: factory audit, sample confirmation, first-container trial order, and then monthly or quarterly reorders.

Container Loading and Landed Cost Planning

Depending on how they are stacked, a normal 40-foot high-cube container can hold between 400 and 450 standard mason frames. Reliable companies give thorough packing lists and plans for loading containers, which help with correct Customs entry and Section 301 tariff classification. Before you finalize your cost model, you should always ask for material test certificates (mill certs) that are matched to their ASTM versions and check the HS code classification.

Timing Orders Around the Construction Season

The busiest time for building in North America is from April to October. Lead times for standard reorders are 25 to 35 days in factories with 6 automatic welding lines and 12 welding robots, which is the right number of machines to support steady large-volume production. Plan to place your first container trial orders 90 days before the spring selling season. This will give you time for inspection, shipping (which usually takes 25–35 days to a port on the West Coast of the United States), and customs clearance.

Why Choose GREEN FORMWORK American Scaffold Frame Solutions for High-Rise Construction

Engineering and Manufacturing Depth

Since 2007, GREEN FORMWORK, which is part of Shandong Xingrui Building Materials Co., Ltd., has been making construction scaffolding in a 79,800-square-meter building in Rizhao, Shandong. Twelve robotic welders and six automatic welding lines work at the plant to make 1700 x 1219 mm american type scaffold frame out of Q235 premium steel. Every header-to-leg joint is welded with CO2 shielding. You can only get pin holes lined up to within 0.5 mm, and the HDG zinc finish on coated product lines is thicker than 65 microns.

Here are the main benefits our frame method gives dealers in North America:

• Material traceability: Each batch comes with steel mill certificates that are linked to their ASTM equivalents. This way, your quality manager can see written proof of the grade of the materials before the frames get to your warehouse.
• Surface finish durability: HDG coatings above 65 microns pass salt-spray tests and don't rust for 20 years or more in yards across the U.S. and Canada where they are stored outside.
• Custom order capability: Frames can be made to order in a variety of sizes, finishes, and lock types. Before the first container is committed, samples and technical drawings can be seen.
• ISO-certified production process: The manufacturing process is based on management systems that are ISO 9001, ISO 14001, and ISO 45001 approved, which supports your internal quality control paperwork needs.

These benefits directly lead to fewer complaints on-site, lower substitute costs, and a supply chain that is easier to plan for. GREEN FORMWORK goods are sent to more than 100 countries right now, and our English-speaking documents team quickly handles customs paperwork, material certificates, and bills of lading.

Conclusion

The American door-type scaffold frame is still the best choice for high-rise and brick building in North America. Its geometry, load ratings, and OSHA compliance route have all been fully tested. When distributors and contractors want to make more money by buying directly from factories, the most important things to look at are the grade of the material, the quality of the welds, the accuracy of the measurements, and the supplier's ability to provide documentation.

GREEN FORMWORK meets all of these requirements with a manufacturing infrastructure that has been checked out, processes that are ISO-certified, and a 17-year history of supplying american type scaffold frame around the world. Go to sdxingrui.com​​​​​​​ to see the full list of product specs.

FAQ

What lock types are compatible with American scaffold frames?

To connect diagonal cross braces on American frames, Flip Locks, Drop Locks, or C-Locks are used. C-Locks have a sliding collar that works best in areas with a lot of vibration, while Flip Locks use a gravity-weighted toggle for quick bracing. If the OD (1.69 inches / 42.4 mm) and lock spacing are the same and have been checked by a trained expert, mixing brands is safe.

How high can an American scaffold frame tower reach?

OSHA says that freestanding towers should have a height-to-base ratio of 4:1. Towers can be taller than 125 feet if they have the right outriggers and wall ties. In any high-rise project, you should always follow a planning plan that is made just for that spot.

Can frames be customized for non-standard project requirements?

Yes, GREEN FORMWORK can make custom orders based on samples or drawings provided by the customer. Standard designs include mason and walk-thru styles, but the surface finish, leg height, and the distance between the rungs can be changed to fit the needs of a particular project.

How often should frames be inspected on-site?

OSHA says that each ladder must be checked by a qualified person before each work shift. Cracked welds, bent rungs, long pin holes, and surface rust that could mean metal loss inside the structure are all important things to look for during inspection.

Request a Direct Quote from GREEN FORMWORK

GREEN FORMWORK gets american type scaffold frame systems that are OSHA-compliant straight from the manufacturer, so there are no middlemen and no delays in paperwork. Our mason and walk-thru frames made of Q235 steel come with full mill certificates, quality records that are ISO-certified, and container loading plans that are the right size for the amount of goods you want to import.

You can email our export team at sdxingruiqp@126.com or go to sdxingrui.com to get samples, prices, or to set up a plant check. We are ready to help you with your next container order because we are a reliable american type scaffold frame supplier.

References

1. Occupational Safety and Health Administration. OSHA 29 CFR 1926 Subpart Q – Scaffolding Standards. U.S. Department of Labor, 2023.

2. American National Standards Institute. ANSI A10.8 – Scaffolding Safety Requirements. ANSI, 2019.

3. Steel Founders' Society of America. Carbon Steel Material Standards and ASTM Equivalency Guide. SFSA, 2021.

4. National Association of Home Builders. Construction Framing and Scaffolding Practices in North American Residential Building. NAHB Research Center, 2022.

5. International Organization for Standardization. ISO 9001:2015 Quality Management Systems – Requirements. ISO, 2015.

6. Construction Industry Institute. Scaffolding Safety and Productivity on High-Rise Projects: Field Research Report. CII, 2020.
