British Standard Frame Benefits for Modular Construction Projects

If you are sourcing scaffolding for modular construction in Europe, the Gulf region, or Southeast Asia, the british standard frame system deserves serious attention. Engineered to BS 1139 and EN 12811 requirements, this door-type scaffolding design delivers standardized dimensions, verified load performance, and cross-site compatibility that generic systems simply cannot match. At GREEN FORMWORK, our BS-compliant frames are manufactured from Q235 high-grade steel with a 1930×914mm configuration and ±0.5mm dimensional tolerance, giving procurement teams a dependable, traceable solution from day one.

Understanding British Standard Frames and Their Role in Modular Construction

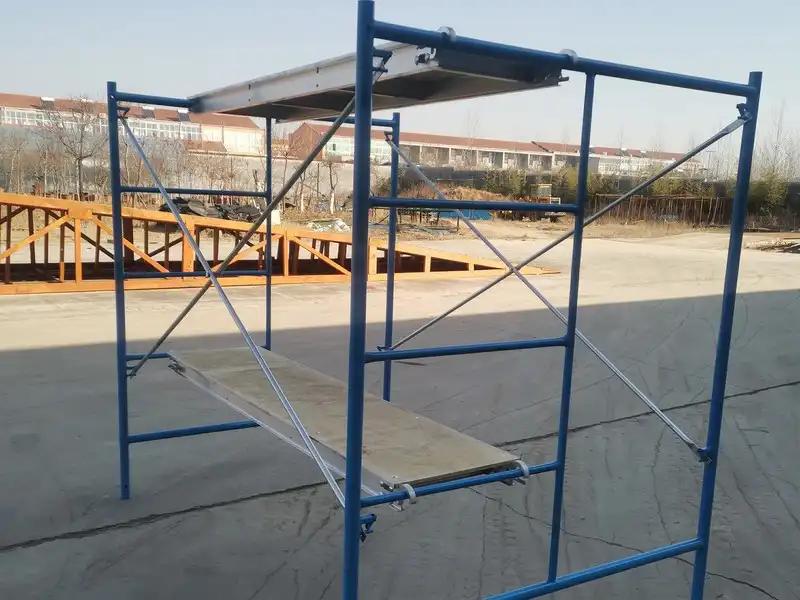

The British standard frame is a door-shaped scaffolding structure that is made to meet the requirements of BS 1139 and EN 12810/12811. Because it has a fixed shape and standard connection points, parts from different production batches or even from different certified suppliers can fit together without having to be changed on-site.

Definition and Core Specifications

Our standard size is 1930mm x 914mm, and the frame pipes are 2.0mm thick and made of Q235 premium steel. The surface can be treated with galvanization (G30 to G90) or powder finishing. This gives each frame a service life of more than 25 years in normal site circumstances. Each unit has batch quality records that can be tracked and are in line with ISO 9001 standards.

Historical Context and Regulatory Alignment

The BS frame system grew out of British efforts to standardize building after World War II. It was later made to work with European EN 12811 performance standards. This two-way alignment means that frames made to these specs meet both UK Building Regulations and the compliance needs of clients working on local projects in the Commonwealth and Gulf states.

Why Uniform Dimensions Matter for Modular Projects?

Consistency in dimensions for a british standard frame directly cuts down on assembly time. When every frame is within ±0.5mm of the next, site crews spend less time making adjustments to fit and more time moving the structure forward. That predictability means that EPC workers in the UAE or Malaysia who are in charge of milestone-driven plans can save time on the job.

Key Benefits of British Standard Frames for Modular Construction

Picking the correct scaffolding system can impact safety records, labor costs, and the overall cost of materials over time. It is best for big modular projects to use door frames that are BS-compliant because of these main benefits.

• Structural integrity under load: Q235 steel provides high tensile strength, and our frames meet all BS EN 12810/12811 load-bearing requirements. This gives structural engineers a reliable calculation basis and reduces the risk of site incidents caused by material failure.
• Extended reusability: Advanced galvanization protects against corrosion across multiple project cycles. Rental companies and EPC contractors consistently report lower replacement rates compared to non-standardized alternatives, which lowers total cost of ownership over a fleet's working life.
• Universal accessory compatibility: Standard mounting centers and connection geometry mean our frames work with BS-compliant cross braces, diagonal braces, and connecting rods available in any major market. Procurement teams avoid the expensive delays that come from sourcing proprietary components.
• Sustainability credentials: The frames are made to order and fully reusable, aligning with ISO 14001 environmental management principles. Q235 steel is also recyclable at end of life, supporting green building procurement policies in European and Gulf state tenders.

Meeting project delivery dates and keeping within compliance budgets are two of the biggest challenges in modular building procurement. These benefits directly address these issues. Timelines and margins are both protected by a frame system that comes on time, is easy to put together, and lasts for many cycles.

Comparison of British Standard Frames with Alternative Frame Types

Knowing how BS frames stack up against other systems helps procurement managers explain to project owners and safety auditors why they made the choices they did about specifications.

BS Frames vs. American and Metric Frame Standards

American scaffold frames usually have sizes that come from imperial measurements, which are different from British standard metric measurements. This can cause problems when projects get parts from more than one area. BS frames use EN-harmonized metric tolerances, which makes it easier for third-party inspectors to sign off on them and gives Gulf and Southeast Asian builders a bigger range of accessory providers who are compatible.

Steel vs. Aluminium vs. Timber for Modular Scaffolding

When it comes to heavy infrastructure and city projects, a british standard frame made of steel offers the best load-to-cost ratio. Aluminum is lighter to move, but it costs more per unit and can't hold as much weight. Timber frame is still commonly used for low-rise domestic projects, but it doesn't have the consistent sizes and fire performance data that most foreign project standards need. Q235 steel frames are the best choice for medium- to large-sized modular buildings because they are strong, last a long time, and are cheap to buy.

Price vs. Total Cost of Ownership

A certified BS frame costs more per unit up front than alternatives that aren't certified. When you look at things like lower repair rates, repeat processes, and lower compliance risk, the math changes. A cheaper unit that fails inspection or breaks down after five uses costs a lot more per project than one that passes inspection the first time and lasts 15 or more deployment cycles.

Procurement Considerations for British Standard Frames in Modular Construction

Fixing mistakes that cost a lot of money later in the buying process is avoided if the definition is correct before the RFQ is sent out.

Accurate Measurement and Specification

Always check the project drawings to make sure the frame's height and width are what you need before you place your order. Our standard size of 1930x914mm works for most municipal and commercial modular needs, but we can also make custom orders based on drawings provided by the customer. Checking the compatibility of accessories, like the cross brace pin diameter and connecting rod thread type, during the specification stage keeps installation problems to a minimum.

Evaluating Supplier Certifications

Along with CE marks, look for ISO 9001 certification for quality management, ISO 14001 certification for environmental management, and ISO 45001 certification for health and safety at work. These references show that the company has a real quality system, not just a claim of quality. As a company that has all three ISO certifications and CE approval, GREEN FORMWORK can send batch quality inspection reports with every shipment.

Logistics, Lead Times, and Custom Orders

Our facility in Rizhao, Shandong, for british standard frame is easily reached by a dedicated seaport, airport, and high-speed rail connection. This makes it easy to load containers and file export paperwork. For large orders, the normal lead time for production is 15 to 30 days. You can get samples before making a promise, and our expert team is here to help with specifications throughout the whole procurement process. We offer flexible payment plans that work for both mid-sized EPC contractors and hire fleet owners, and we accept FOB and CIF terms.

Installation and Maintenance Best Practices for British Standard Frames

Even the best-manufactured frame system loses value if it is installed or maintained incorrectly.

Installation Accuracy on Modular Sites

Verify base plate levelness before erecting the first frame bay. Misalignment at the foundation level compounds across the structure and creates load eccentricity that affects both safety and inspection outcomes. Our ±0.5mm dimensional tolerance means that if the base is level, the frame system will stack true without shimming.

Routine Inspection Protocol

Inspect each frame for pipe deformation, weld cracks, and coating damage before every deployment. Frames with visible wall thinning below 1.8mm should be withdrawn from service. A simple go/no-go gauge set calibrated to BS tolerances makes this process fast and consistent, even for large rental fleets.

Preventive Maintenance to Extend Service Life

Clean frames after each use to remove concrete splatter and soil. Re-coat any areas where galvanization has been abraded. Store frames horizontally in covered racks to prevent warping from point loading. These simple steps protect the galvanized layer and keep frames within specification for more deployment cycles, directly improving asset return for rental companies.

Conclusion

British standard frame door-type scaffolding that is made to British standards gives modular building projects a stable base that is backed by compliance paperwork that is recognized around the world. These frames are made of Q235 steel, have been tested to meet EN 12810/12811 load requirements, and are fully ISO certified. This makes them a good choice for builders working in the Gulf, Southeast Asia, Africa, and Europe. Three things that protect long-term value are using the right specifications, choosing a certified supplier, and keeping up with maintenance. GREEN FORMWORK makes and sends frames that are compliant with British Standards to more than 100 countries. They offer free samples and technical help at every step of the buying process.

FAQ

Q1: What are the standard dimensions of a BS-compliant door frame?

A: Our standard british standard frame measures 1930mm × 914mm with 2.0mm wall-thickness pipes. This size aligns with BS 1139 and EN 12811 requirements and fits the majority of municipal and commercial modular construction applications globally.

Q2: How do BS frames reduce installation time on modular projects?

A: Uniform dimensions and standardized connection points mean frames from the same certified production batch slot together without field modification. Site crews can follow a single erection procedure across the entire structure, cutting set-up time and reducing the risk of assembly errors.

Q3: Which certifications should I request from a BS frame supplier?

A: Ask for ISO 9001, ISO 14001, and ISO 45001 management system certificates, CE marking, and batch-level inspection reports. For projects in Gulf states or European markets, also request a Declaration of Performance (DoP) referencing EN 12810/12811 test data.

Q4: Can the frames be customized to project-specific dimensions?

A: Yes. GREEN FORMWORK accepts custom orders based on client-supplied drawings or samples. Our engineering team reviews specifications and can produce samples within 7–14 days before bulk production begins.

Q5: Are these frames suitable for reuse across multiple project cycles?

A: Q235 steel with G30–G90 galvanization supports a service life exceeding 25 years under standard site conditions. With proper inspection and maintenance after each deployment, frames remain within BS tolerance specifications through many cycles, making them cost-effective for rental fleet operators.

Request a Quote from GREEN FORMWORK Today

GREEN FORMWORK builds certified British standard frames for modular building projects in the Gulf, Southeast Asia, and other places. Our ISO 9001/14001/45001-certified factory in Rizhao ships to more than 100 countries. We offer a customizable MOQ, help with custom drawings, and samples before you commit. Get in touch with our export team right away to talk about your project needs and get a detailed technical proposal. You can email us at sdxingruiqp@126.com.

References

1. British Standards Institution. BS 1139-1: Metal Scaffolding – Tubes. BSI, 2010.

2. European Committee for Standardization. EN 12811-1: Temporary Works Equipment – Scaffolds. CEN, 2003.

3. European Committee for Standardization. EN 12810-1: Façade Scaffolding Made from Prefabricated Components. CEN, 2003.

4. International Organization for Standardization. ISO 9001: Quality Management Systems – Requirements. ISO, 2015.

5. Construction Industry Research and Information Association (CIRIA). Scaffolding and Temporary Works Design Guide. CIRIA, 2017.

6. Health and Safety Executive (HSE). The Work at Height Regulations 2005: A Brief Guide. HSE Books, 2014.
