Why Does 8-Hole Disc Scaffolding Improve Jobsite Efficiency?

8-hole disc scaffolding improves jobsite efficiency because its rosette connector allows workers to attach ledgers, transoms, and diagonal braces in multiple directions simultaneously — without bolts or loose couplers. This gravity-fed wedge-lock design cuts assembly time by up to 50% compared to tube-and-coupler systems. Built from Q235 premium steel with hot-dip galvanization exceeding 80 microns, this modular system handles vertical loads above 40kN per standard, tolerates temperatures from -20°C to +200°C, and stays reusable across projects for 15–25 years. For distributors and procurement teams sourcing at volume, fewer labor hours and longer service life directly protect your margin.

Understanding 8-Hole Disc Scaffolding and Its Core Components

The rosette connection is what makes this system different from past types of scaffolding. It has eight evenly spaced slots, four narrow slots for perpendicular ledgers and four wider slots designed for diagonal bracing at exact 45-degree angles. They are welded every 500 mm along each vertical standard.

Vertical Standards

Vertical standards are made from Q235 quality carbon steel and have pipe widths of 48mm or 60mm and wall thicknesses of 3.2mm to 3.25mm (with a tolerance of ±0.1mm). Each standard can hold more than 40kN of weight. Because of this, parts from the same maker can fit together without any adjustments being needed. This lowers the chance of mistakes during building on uneven ground or structures with more than one level.

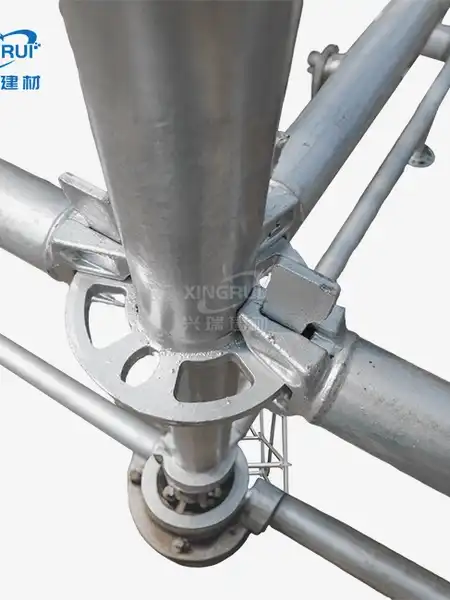

Rosette Connector and Wedge-Lock Mechanism

The 8-Hole disc scaffolding wedge-lock device works because of gravity. When workers put the wedge in place and hit it once, the link locks itself, so they don't need any tools or extra hardware. You can't lose the loose couplers or the bolts that come loose when the machine shakes. At Shandong Xingrui Building Materials Co., Ltd., every rosette is tested with ultrasound waves at the pipe link weld, which is where any scaffolding system is most likely to fail.

Horizontal Ledgers, Transoms, and Base Jacks

The working platform grid is made up of ledgers and transoms that are connected across and across. Adjusting the height of a structure is easy with base jacks, which are useful on construction sites in the Middle East and Southeast Asia where the ground isn't always level. All of the parts are hot-dip galvanized and have a zinc covering that is thicker than 80 microns. This means that they are known to be resistant to corrosion for 15 to 25 years in marine and industrial settings.

How 8-Hole Disc Scaffolding Enhances Jobsite Efficiency

The two things that decide whether a scaffolding system helps or delays a project plan are speed and structural reliability. The eight-slot rosette talks to both at the same time. Here are the main ways this method makes current job sites more efficient:

• Faster assembly cycle: The bolt-free wedge-lock connection means a two-person crew can erect a standard bay significantly faster than with tube-and-coupler alternatives. Studies in modular scaffolding adoption have reported labor reductions of 30–50% during erection and dismantling phases.
• Multi-directional connectivity: The eight-slot configuration supports connection at 0°, 45°, 90°, and 135° angles from a single node. This matters for complex frame assembly, curved facades, tank wrapping in petrochemical facilities, and irregular architectural structures.
• Structural stability at height: True 45-degree triangulation via dedicated diagonal slots prevents the parallelogram deformation that occurs in cuplock systems above 20 meters. This directly reduces incident risk and unplanned downtime.
• Component reusability: Built to specification with ±0.1mm dimensional tolerance and a 15–25 year service life, components remain interchangeable across projects. For a wholesale distributor supplying multiple contractors, this means lower total stock replacement costs over time.

-- Faster cycle of assembly: Because the wedge-lock link doesn't use bolts, a two-person crew can set up a standard bay a lot faster than with tube-and-coupler options. Studies on the use of movable scaffolding have shown that it cuts labor needs by 30–50% during the building and taking down stages.

Inspection and Maintenance Practices

These benefits lead to fewer accident-related work stoppages, fewer man-hours needed per project, and a lower total cost of ownership. These results help importers make more money when they sell their goods in competitive local markets.

Comparing 8-Hole Disc Scaffolding with Traditional and Alternative Systems

Not every scaffolding system works the same way on every job site. The eight-slot disk method has been shown to be useful in the following situations, as shown in the table below:

Against Tube-and-Coupler Systems

For tube-and-coupler devices to work, each joining point needs its own coupler. This adds hundreds of tightening actions per shift to a medium-sized job. With its wedge-lock nodes, the eight-slot disk system gets rid of this completely, cutting the cost of assembly labor by up to 50%.

Against Cuplock Systems

Cuplock systems only let you connect in four directions per node, which makes it harder to build curved structures or bracing arrangements that run diagonally. The eight-slot rosette has four extra diagonal slots that are designed to handle side forces in tall buildings, where cuplock geometry has been shown to fall short.

Choosing the Right System for Your Market

The eight-slot disk system is compatible with EN 12810-1 and AS/NZS 1576 standards, which makes the regulatory approval process easier in many places for distributors who work with subcontractors in Southeast Asia and the Middle East. This makes it easier to sell the same line of products to people in different countries.

Procurement Considerations for 8-Hole Disc Scaffolding

Before putting in a sample order, procurement teams that are comparing 8-Hole disc scaffolding sellers should make sure they have the right paperwork. ISO 9001 (Quality Management), ISO 14001 (Environmental Management), and ISO 45001 (Occupational Health and Safety) are all valid certifications. All three are held by Shandong Xingrui Building Materials Co., Ltd., along with CE approval. The company's 79,800-square-meter plant in Rizhao, Shandong, sends goods to more than 100 countries.

Key Documentation to Request

Suppliers you can trust will give you spectrochemical analysis reports that prove the grade of the steel, ultrasonic weld test records for rosette connections, and zinc layer thickness certificates that follow ISO 1461. As part of your normal pre-shipment checking process, ask for these papers.

Mixed-Container and MOQ Flexibility

One useful benefit for bulk importers is that they can put together ringlock scaffolding parts, base jacks, ledgers, and other items that go with them in one container. This lowers the cost of freight per unit and lets wholesalers give local hardware networks a fuller selection without having to split shipments.

Samples and Technical Support

Before a trial order is placed, Shandong Xingrui gives samples with all the technical information. This lets warehouse managers make sure that parts fit, that the galvanization is good, and that the dimensions are correct by comparing them to specification sheets before committing to full container volumes.

Real-World Applications Demonstrating Efficiency Gains

The eight-slot method works well with three types of building that are in high demand in export markets in the Middle East and Southeast Asia.

High-Rise Facade and Perimeter Scaffolding

When working on tall buildings, outer scaffolding has to be able to withstand side forces caused by wind. The 8-Hole disc scaffolding diagonal bracing slots in the eight-slot rosette keep the triangulation fixed on walls that are longer than 20 meters. This stops structural drift that can cause accidents and project delays.

Industrial Tank and Petrochemical Maintenance

Scaffolding that can go around small pipe racks and around curved surfaces is needed in refineries and tank farms. The node links can go in more than one way and can change to circular shapes without needing to be made specifically. The connection without bolts also gets rid of the fire risk that comes with metal-on-metal sparking in places that are prone to fire.

Bridge Shoring and Infrastructure Projects

For supporting bridge shoring and tunnel formwork, the system can handle vertical loads of more than 40kN, which is the norm, and it can work properly from -20°C to +200°C. This meets the structural needs of civil engineering projects where wrong load calculations can have direct safety effects.

Conclusion

Eight connection slots per rosette node, a gravity-fed wedge-lock mechanism, Q235 premium steel construction, and hot-dip galvanization exceeding 80 microns are just a few of the engineering choices that have helped 8-Hole disc scaffolding become more efficient. These choices shorten the time it takes to put together, allow for more complicated structure arrangements, and increase the product's useful life to 15–25 years. These things have a direct effect on the per-unit margin, stock turnover speed, and customer retention for importers and bulk wholesalers who work in cost-sensitive markets. Verified certifications, the ability to use a variety of containers, and the ability to get samples from well-known manufacturers all lower the risk of purchasing on trial orders and regular replenishment cycles.

FAQ

Why does the eight-slot design outperform four-slot systems?

The four additional diagonal slots enable 45-degree triangulation at every node. This prevents the lateral deformation that occurs in four-slot systems when structures exceed 20 meters in height, reducing structural failure risk and maintenance interruptions.

What steel grade is used and why does it matter?

Q235 premium carbon steel provides a balance of tensile strength and workability that suits construction scaffolding applications. Combined with hot-dip galvanization at 80+ microns, it delivers corrosion resistance exceeding 15 years even in coastal or high-humidity environments.

Can components from different manufacturers be mixed?

Manufacturers generally follow common dimensional standards, but wedge angles and rosette thicknesses can vary by 0.5mm–1mm between production sources. A compatibility load test before mixing components on active sites is the professionally recommended practice.

What certifications should I verify before ordering?

Request ISO 9001, ISO 14001, ISO 45001, and CE certification documentation. Also request spectrochemical analysis confirming steel grade and zinc layer thickness certificates per ISO 1461 before approving shipment.

Is specialized training required for assembly?

Yes. The wedge-lock mechanism is intuitive, but correct bracing sequence and ledger placement require training from a certified scaffolding competent person to meet safety compliance requirements.

Request a Quote from GREEN FORMWORK — Your Trusted 8-Hole Disc Scaffolding Manufacturer

With ISO 9001, ISO 14001, and ISO 45001 certification, GREEN FORMWORK, backed by Shandong Xingrui Building Materials Co., Ltd., ships 8-Hole disc scaffolding to over 100 countries. We can handle orders with different types of containers, send samples before trial shipments, and provide detailed information for all of our product lines. You can email our team at sdxingruiqp@126.com to get pricing information, specifications, and a custom quote for your next order.

References

1. European Committee for Standardization. EN 12810-1: Façade Scaffolding Made of Prefabricated Components. CEN, 2003.

2. Standards Australia / Standards New Zealand. AS/NZS 1576: Scaffolding — General Requirements. SAI Global, 2010.

3. International Organization for Standardization. ISO 1461: Hot-Dip Galvanized Coatings on Fabricated Iron and Steel Articles. ISO, 2022.

4. International Organization for Standardization. ISO 9001: Quality Management Systems — Requirements. ISO, 2015.

5. Health and Safety Executive (HSE). Construction Industry Scaffolding Safety: Guidance for Contractors. HSE Books, 2017.

6. Construction Industry Institute. Modular Scaffolding Productivity Benchmarking Report. CII, 2019.
