Can a British Standard Frame Improve Safety and Building Quality?

Yes — a British Standard Frame can directly improve both safety and building quality on construction sites. When scaffolding systems conform to BS 1139 and EN 12811 specifications, they provide predictable load-bearing performance, dimensional consistency, and cross-component compatibility that generic alternatives cannot guarantee. On projects where compliance with UK Building Regulations or international safety audits is required, a BS-compliant door-type frame is not optional — it is the foundation of a defensible, inspection-ready site.

Understanding British Standard Frames and Their Specifications

What Defines a British Standard Frame?

The British Standards Institution sets the measurements and materials for a door-style scaffolding unit called a British standard frame. These are mostly based on BS 1139 and the European standard EN 12811.1. These rules explain the frame's height, width, tube wall thickness, the quality of the weld, and how the surface is dressed. This way, frames from various production runs or even from various sources can be put together without having to be changed on-site.

Key Dimensions and Material Grade

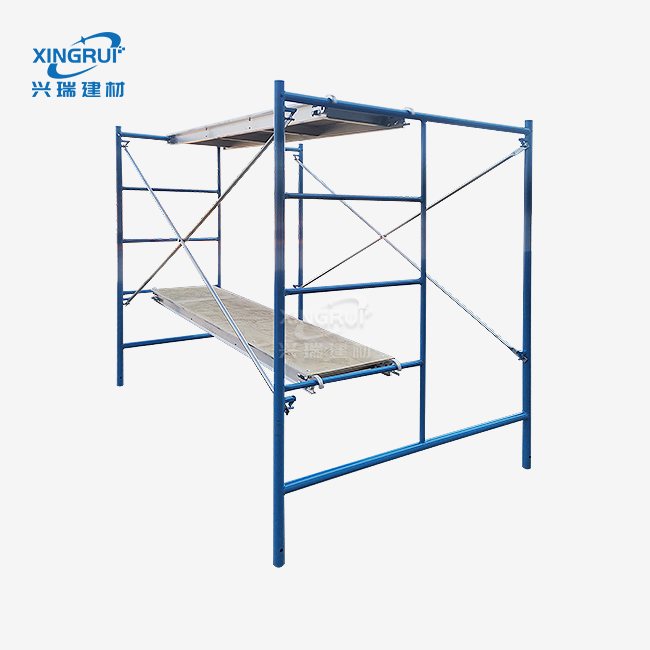

Xingrui's BS-compliant frame has a standard form of 1930 × 914 mm and frame pipes with a wall thickness of 2.0 mm. The steel grade used is Q235 high-grade steel, which has a yield strength of at least 235 MPa. It is possible to hot-dip galvanize (G30 to G90) or powder coat the surface to keep it from rusting in coastal, humid, and industrial areas. Every batch of production is checked with inspection tools that have been calibrated to make sure that the error in size doesn't go over 0.5 mm.

Why Specifications Matter for Procurement?

They set the limits of not only the product but also the whole system when they describe a BS frame. For things that are meant to work together, cross braces, diagonal braces, and joining rods all need to be the same size. There is a hidden risk when you find frames with loose specs or made of different types of steel. Connection points slip, load ratings become unstable, and problems are marked as not meeting standards by site testers. When you ask for Q235 steel with a 2.0 mm wall width, the supply chain is made clear.

How British Standard Frames Enhance Building Safety and Quality?

Structural Integrity Under Load

BS EN 12811 figures out how much weight a scaffolding platform can hold. These needs include loads that are spread out, loads that are gathered in one place, and forces that are moving from people and things. If you build a frame that meets these standards and check the tube wall thickness and weld penetration, it will always hold its stated capacity. The Health and Safety Executive (HSE) says that scaffolding breakdowns cause a lot of deaths on building sites. That most of these deaths happen because things aren't up to code or aren't being kept right.

Reduced Site Accidents Through Dimensional Consistency

When every british standard frame in a system has the same 1930 × 914 mm footprint and connection geometry, putting it together teams can plan their work ahead of time. There's no need to push links or get by with adaptors that don't work. It is less likely that the bracing will be out of place because of this consistency. This is one of the main reasons why partial scaffolding falls down. Inspection fails and rework rounds happen less often when BS-compliant frames are chosen for projects in the Gulf, Southeast Asia, and Commonwealth markets.

Compliance With International Safety Audits

For big EPC companies and government infrastructure clients, third-party audit trails are getting more and more important. For managing quality, you need ISO 9001 certification. For managing the environment, you need ISO 14001 certification. And for health and safety at work, you need ISO 45001 certification. When a seller has all three certifications, like Xingrui does, they can show inspectors records that go from the heat numbers of the raw materials to the number of frames made in a batch.

Procurement Insights: Sourcing British Standard Frames for Optimal Results

Evaluating Supplier Credentials

The first step in any buying choice is to check the certification. A company that sells BS frames should have CE marking, ISO 9001, and, if needed, a Declaration of Performance (DoP) for EN 128111. ISO 9001, ISO 14001, and ISO 45001 have all given Xingrui their seals of approval. Its CE-marked goods are sent to more than 100 countries. For each shipment, you can get records of the quality checks that were done on each batch by a third party.

Procurement teams should make sure of these main things before placing a big order:

• Dimensional traceability: Request a quality control report showing ±0.5 mm tolerance verification for the specific batch, not just a general capability statement.
• Material certification: Confirm Q235 or equivalent steel grade with mill certificates cross-referenced to the production batch.
• Customization lead time: Xingrui supports drawing-based custom orders with sample turnaround of 7–14 days, which fits standard RFQ-to-trial-order timelines.
• Logistics documentation: CE certificates, packing lists, and bill of lading formats should be confirmed before contract signature to prevent clearance delays at destination ports.

That's why these checkpoints for a british standard frame make it easy for buyers to compare sellers in more than one way, not just by price. The lower unit price won't be worth it if there are gaps in licensing or differences in size. It will cost more in extra work, delays, and possible liability.

Flexible Order Structures and Delivery

The factory that Xingrui works with is in Shandong's Rizhao. It is right next to a port where containers can go directly to the Middle East, Southeast Asia, and East Africa. Inside the 79,800 m² building, there are 12 welding robots and 6 automated welding lines, as well as more than 40,000 m² of work space. It's able to handle both small and large orders. It takes 15 to 30 days to make a normal BS frame after an order is approved.

Technical Considerations When Choosing British Standard Frames

Steel vs. Alternative Materials

Scaffolding frames that meet British Standards are still mostly made of steel because it is strong, can be welded, and can be recycled. Q235 steel can hold the weight that EN 12811 calls for, and it's cheap enough to use more than once. Aluminum options are available for uses that need something light, but they cost more per unit and need special bonding. For high-rise buildings, public works projects, and infrastructure, steel BS frames are still the norm.

Installation Best Practices

It depends on how well the frame system was put together to see if it works at full potential. The ground should be flat and firm where the base plates are put down. The cross braces should be locked before the vertical force starts. If you don't connect the frames to the support in the middle, you can't stack them higher than what the manufacturer says is safe. By giving site managers technical support documents and on-call engineering help, Xingrui helps them avoid making the most common mistakes when putting things together.

Maintenance and Reuse Life

Galvanized Q235 steel frames for a british standard frame last a long time, which is a good thing. It is possible for frames to last more than 25 years if they are galvanized between G30 and G90 and are checked and stored correctly between jobs. Rent-a-car companies and large EPC contractors think a lot about the total cost of ownership when they figure out the cost per project cycle. This helps them figure it out.

Future Trends in British Standard Frame Usage

Sustainability and Material Efficiency

Construction markets in Europe, the Gulf, and Southeast Asia are moving toward embodied carbon accounting. Steel scaffolding frames score well in this context because they are fully recyclable at end of life. Multi-cycle reuse further reduces the carbon footprint per project. Procurement specifications increasingly include environmental management requirements, making ISO 14001 certification a procurement prerequisite rather than a differentiator.

Digital Procurement and Custom Engineering

B2B buyers now expect drawing-based custom orders processed quickly. Xingrui accepts customer-supplied drawings and samples for OEM and custom production, with NDA agreements available for proprietary connection details. Digital order tracking and documentation packages — including CE certificates and DoP documentation — align with the paperless procurement workflows that major EPC contractors are adopting.

Evolving Code Requirements

EN 12811 and related standards undergo periodic revision. Suppliers that invest in automated production and calibrated quality systems are better positioned to adapt to tightened load or dimensional requirements without retooling delays. Procurement teams should ask suppliers directly how they track and implement standard updates.

Conclusion

A British Standard Frame is not just a commodity purchase — it is a compliance decision that affects site safety, audit outcomes, and long-term asset value. Specifying Q235 steel at 2.0 mm wall thickness, holding ±0.5 mm dimensional tolerance, and sourcing from a certified manufacturer gives procurement teams the traceability and performance evidence they need. For projects in the Gulf, Southeast Asia, Africa, or any market governed by BS or EN standards, the right frame specification prevents costly corrections later.

FAQ

Q1: How does a British Standard Frame differ from a metric or US frame?

A: A BS frame uses dimensions derived from BS 1139 and EN 12811, including the 1930 × 914 mm standard height and width. US frames follow different dimensional conventions, and metric frames in non-Commonwealth markets may use varying connection geometries. These differences mean BS frames are not directly interchangeable with non-BS systems without adaptor components.

Q2: Can BS frames be custom-ordered to non-standard dimensions?

A: Yes. Xingrui accepts drawing-based custom orders and can produce frames to client-specified dimensions. Sample production typically takes 7–14 days. NDA agreements are available to protect proprietary designs.

Q3: What certifications should I request from a BS frame supplier?

A: Request ISO 9001, ISO 14001, and ISO 45001 certificates. For European market projects, ask for CE marking and a Declaration of Performance referencing EN 12811. Batch quality inspection reports and steel mill certificates should accompany each shipment.

Q4: What is the typical lead time for a bulk BS frame order?

A: Standard production lead time is 15–30 days after order confirmation, with container loading from Rizhao Port. First-time OEM or custom orders may require additional lead time for sample approval.

Q5: Are galvanized BS frames suitable for coastal construction environments?

A: Yes. G30–G90 hot-dip galvanization provides substantial corrosion resistance suitable for humid and salt-air environments. Service life exceeds 25 years under standard conditions with appropriate inspection and storage practices.

Get BS-Compliant Scaffolding From GREEN FORMWORK

Shandong Xingrui Building Materials Co., Ltd. is the official British standard frame manufacturer for GREEN FORMWORK. It is certified by ISO 9001, ISO 14001, and ISO 45001, and it has been exported to over 100 countries. It also has a CE mark. Our door-style platform systems are sent out from Rizhao Port with all of their paperwork. You can ask for a sample, a detailed datasheet, or a price today that is made just for your project. The website is sdxingrui.com, and the email address is sdxingruiqp@126.com.

References

1. British Standards Institution. BS 1139: Metal Scaffolding — Specification. BSI, 2010.

2. European Committee for Standardization. EN 12811-1: Temporary Works Equipment — Scaffolds — Performance Requirements and General Design. CEN, 2003.

3. Health and Safety Executive. Scaffolding Safety: Guidance for Contractors and Site Managers. HSE Books, 2018.

4. International Organization for Standardization. ISO 9001: Quality Management Systems — Requirements. ISO, 2015.

5. International Organization for Standardization. ISO 45001: Occupational Health and Safety Management Systems — Requirements. ISO, 2018.

6. Construction Industry Research and Information Association. Temporary Works: Principles of Design and Construction (CIRIA C703). CIRIA, 2017.
