How does mason frame differ from access frame

Mason frames and access frames are both standard components in the scaffolding industry, yet they serve different structural purposes on a job site. A mason frame is built for heavy-duty masonry tasks, featuring closer rung spacing and higher load ratings to support bricklayers and material weight. An access frame, by contrast, uses a large-span, pass-through door design that keeps ground-level pathways open for workers and equipment. Understanding which scaffold door system fits your project helps you control costs, maintain safety compliance, and avoid downtime.

Understanding the Basics of Mason Frames and Access Frames

What Is a Mason Frame?

A mason frame is a type of steel scaffolding that is designed for heavy masonry work like laying bricks and blocks. It usually has rungs that are closer together, about 6 inches apart, so masons can work on a stable surface. Because the cross-braces and horizontal members of the frame spread out heavy loads evenly, it is the best choice for workers who need to lift heavy things at an elevated level.

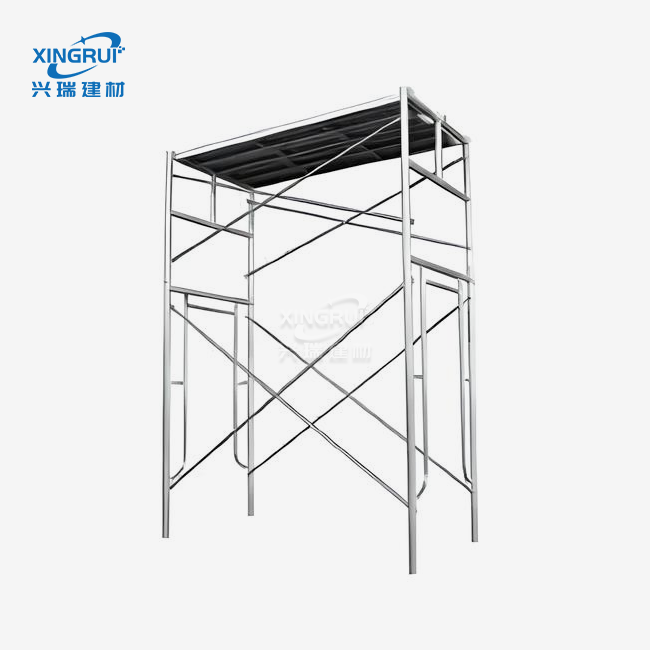

What Is an Access Frame?

An access frame is a wider scaffold door frame that is meant to keep paths below open while the scaffolding is being put up all the time. It's not like a normal mason frame because it has a big clear bottom span that lets people, trolleys, and material carts go through without stopping the scaffold line. Access frame with a net interior width of 1,219 mm and a standard height of 1,930 mm is manufactured by Shandong Xingrui Building Materials Co., Ltd.

Side-by-Side Comparison

Structural and Functional Differences Between Mason Frames and Access Frames

Material and Build Quality

Steel is used as the main material for both types of frames, but the grade and way it is processed affect how well it works over time. Access frames from GREEN FORMWORK are made from cold-rolled Q235 premium steel, processed through automated welding lines, and finished with electrostatic spraying for corrosion resistance. Q235 steel has a minimum yield strength of 235 MPa, which means it can be used outside over and over again for many project rounds.

Frame Dimensions and Rung Spacing

Mason frames have rungs that are close together so that masons can stand on them at different heights. Access frames drop the lower members all the way down to make a clear pass-through area. The GREEN FORMWORK access frame has a clear inner width of 1,219 mm, which is big enough for most building carts. On a functional level, this difference in dimensions is what sets the two frame types apart.

Assembly and Mobility

Because the rungs are close together, mason frames need more parts per bay, which makes setup take longer. Access frames are designed in a way that makes them easy to put together and take apart quickly. This means that as the stages of a project change, site teams can rearrange the scaffold line without having to buy extra parts. This directly saves time and work for teams that take care of buildings or rent out tools and move it around a lot.

Application Scenarios: When to Choose Mason Frame vs Access Frame

Heavy-Duty Masonry Projects

Masonry frames are the best way to go for projects that need to be built over time using bricks, blocks, or stone. Masons can change their standing height by small amounts thanks to the close space between the rungs. This keeps them from getting tired and boosts their output on long wall runs. The frame's load-rated cross-bracing lets masonry units be stacked at the same time on more than one level.

Construction Site Passages and Exterior Wall Projects

Access frames are the best choice for building a factory, decorating a lot of outside walls, or any other job where scaffolding can't get in the way of people walking on the ground. Because the door is designed to go through, there is no need to cut special holes into the scaffold line. This method is good for venues, stores, and business buildings because workers and supply carts don't have to stop to take apart parts.

Hybrid and Mixed-Use Scenarios

It's possible for both types of frames to be used together in the same scaffold structure on some big sites. The outside walls could have access frames along the base level to keep vehicles moving. On the upper levels, where bricklayers are working, the frames would change to mason frames. This method of working in layers is common in mixed-use business buildings where the ground-floor storefront needs to stay open while work is done on the surface above.

Procurement Considerations for B2B Clients

Certifications and Compliance

People in the U.S. market should make sure that the company selling them scaffolding has management certifications that are known around the world. GREEN FORMWORK has qualifications in ISO 9001 Quality Management, ISO 14001 Environmental Management, and ISO 45001 Occupational Health & Safety. All three of these standards show that the company that makes the product is responsible for the quality of the production, the safety of the workers, and the impact on the environment at the facility level as well as the product level.

Cost Analysis: Upfront vs. Lifespan

A built-to-spec access frame that can be used more than once costs more per unit than one that can only be used once, but it costs less overall over many project cycles. GREEN FORMWORK products have full quality traceability from the time the raw materials are received until the product is tested as a whole. Since each batch is tracked in real time, there are fewer warranty claims and less money spent on replacements that were not planned for.

Small-Order Feasibility and Lead Time

Facility maintenance companies and small rental operators often worry about minimum order amounts. This directly improves the rates at which assets are used and the return on inventory for rental operators. GREEN FORMWORK takes orders for small amounts and gives buyers samples with full technical support before they commit to buying a lot. The company's factory in Rizhao City has more than 40,000 square meters of standard workshops, 12 welding robots, and 6 automatic welding lines. This means that even for orders that aren't in bulk, they can be delivered quickly.

Enhancing Workplace Safety and Efficiency with the Right Frame Choice

Built-In Safety Features

Access frames with wide bases need stable support to keep them from moving side to side. GREEN FORMWORK's access frames are made to meet the requirements for heavy-duty construction grade loads. The strength of the joints is checked by automated welding lines. Site managers should make sure that the base plates and adjustable screw jacks are set properly before each use, since uneven ground is one of the main reasons why scaffolds fall over.

Training and Best Practices

According to OSHA 29 CFR 1926.454, people who put up, take down, or use scaffolding must get training from a trained person. When you choose a frame system with clear assembly marks and regular dimensional limits, like those made by cold roll forming equipment, it makes setup easier for trainers and lessens the chance of mistakes. At GREEN FORMWORK's plant, four sets of cold roll forming machines make sure that every part meets the same size requirements every time.

Looking Ahead: Material Advances

High-strength low-alloy steels and better surface coatings that last longer in seaside or chemically active areas are slowly being used in the scaffolding business. Electrostatic brushing, which is already part of GREEN FORMWORK's process, is better at sticking to surfaces than regular painting. This is important for rental equipment that has to deal with different site conditions over and over again.

Conclusion

The choice between a mason frame and an access frame comes down to what the ground level of your site needs. With close rung spacing, mason frames can hold up heavy masonry work for a long time. Access frames solve a different issue; they keep people and things going along a continuous line of scaffolding without blocking the flow. GREEN FORMWORK makes access frames out of high-quality Q235 steel that have a clear width of 1,219 mm, are backed by ISO 9001, 14001, and 45001 certification, and you can look at a sample before you place an order. For safety and speed, choose the right frame type for the job.

FAQ

What load capacity does a scaffold access frame support?

The GREEN FORMWORK access bars are made to last in heavy-duty building conditions. A minimum yield strength of 235 MPa is found in Q235 steel. Always check the product data sheet's specific load rating to make sure it matches the calculated imposed load at your site before putting up the structure.

Can an access frame and a mason frame connect in the same scaffold run?

Yes. Both types of frames use standard scaffold connection sizes, which means they can work together in the same scaffold structure. Before buying mixed designs, make sure that the coupling pins, cross-braces, and base jacks work with both frame types.

What certifications should I request from an access frame supplier?

Ask for ISO 9001 for managing quality, ISO 14001 for managing the environment, and ISO 45001 for managing safety at work. All three of these certifications point to a well-run production environment.

Is a small-quantity order possible for facility maintenance buyers?

GREEN FORMWORK lets you buy in small quantities and gives you sample units with scientific information. Get in touch with the sales team to find out the current lead times and minimum order quantities for the frame model you want.

How does electrostatic spraying compare to standard paint for outdoor scaffold use?

Electrostatic spraying sticks the coating to the steel surface at the molecular level, making a finish that is more even and doesn't stick as well as brush or spray painting. This keeps things from rusting when they are stored outside between projects, which is especially important for managing rental fleets.

Get Accurate Access Frame Pricing from GREEN FORMWORK

The scaffold access frame line from GREEN FORMWORK is a reliable, reusable option for building repair teams and rental operators. It is backed by ISO 9001, ISO 14001, and ISO 45001 certifications. We ship our Q235 steel frames from a 79,800-square-meter factory in Rizhao City. You can get a sample and full technical help before you place a large order. As a reliable access frame manufacturer, you can email our team at sdxingruiqp@126.com or visit sdxingrui.com to get more information, such as specs, prices, or a sample.

References

1. Peng, J. L., Pan, A. D., & Chan, S. L. (1996). Scaffold failure and safety measures. Journal of Constructional Steel Research.

2. Occupational Safety and Health Administration. (2021). Scaffolding: OSHA Standards for the Construction Industry (29 CFR 1926 Subpart Q). U.S. Department of Labor.

3. British Standards Institution. (2004). BS EN 12810-1: Facade Scaffolding Made from Prefabricated Components. BSI Standards.

4. Whitaker, S. M., & Graves, R. J. (2008). Scaffold safety in construction: A review of current practice and incidents. Safety Science.

5. American National Standards Institute. (2019). ANSI/SSFI SC100: Safety Requirements for Scaffolding. Scaffold & Access Industry Association.

6. International Organization for Standardization. (2018). ISO 45001: Occupational Health and Safety Management Systems — Requirements with Guidance for Use. ISO.
