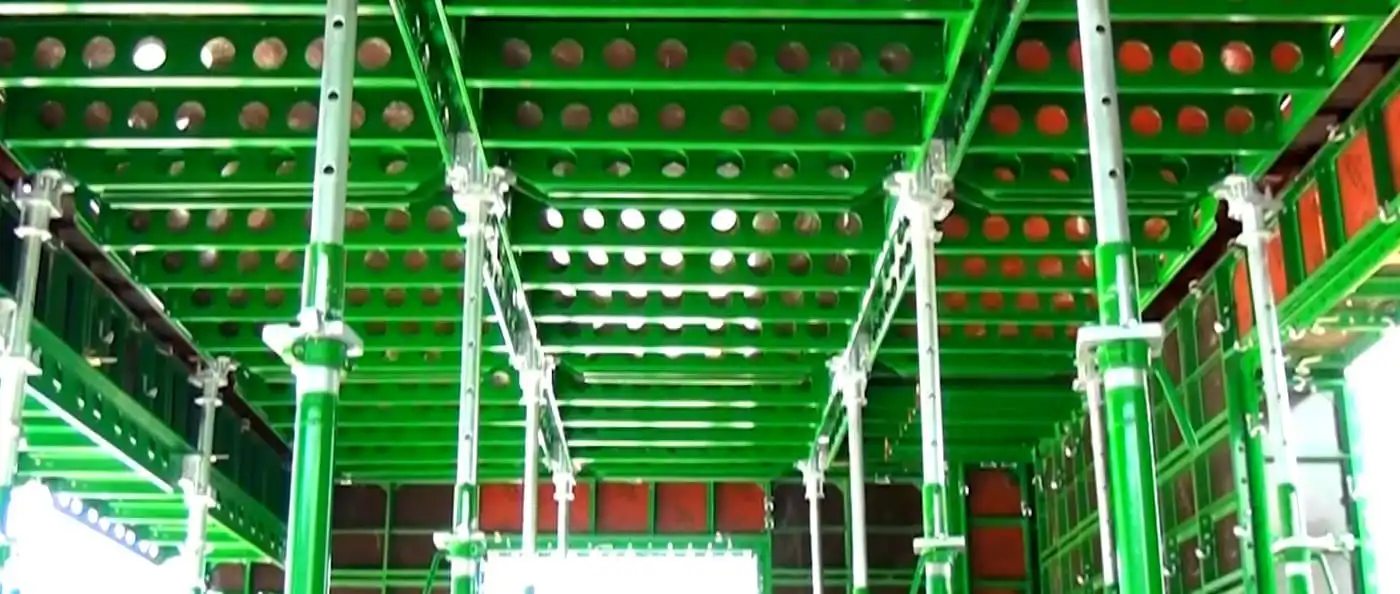

Modular Steel Formwork Maintenance: 5 Ways to Extend Service Life

Proper maintenance of modular steel formwork directly determines how many times your panels can be reused before replacement becomes necessary. High-quality systems built from Q235 structural steel—like those manufactured by Shandong Xingrui Building Materials Co., Ltd.—can deliver 300 to 500 reuse cycles when maintained correctly. Neglecting basic upkeep, however, compresses that range significantly and drives up your cost-per-pour. This guide walks through five practical maintenance strategies that keep steel formwork panels performing at full capacity across bridges, tunnels, high-rise towers, and other heavy-load projects.

Understanding Steel Formwork and Its Maintenance Needs

How many times your panels can be used before they need to be replaced is directly related to how well you take care of your modular steel formwork. If you take good care of high-quality systems made from Q235 structural steel, like those made by Shandong Xingrui Building Materials Co., Ltd., they can be used 300 to 500 times.

But if you don't do basic maintenance, that range gets much smaller, and your cost-per-pour goes up. This guide shows you five useful ways to maintain steel formwork panels so they keep working at full capacity on heavy-load projects like bridges, tunnels, high-rise buildings, and more. Steel formwork systems are made up of standard pieces that fit together and join, as well as support parts. They come in different shapes and sizes, such as wall panels, beams, and columns. Each one faces a different set of stresses when concrete is poured.

Why Maintenance Matters for ROI

It costs a lot of money to buy a single Q235 steel panel with a load-bearing capacity of 60kN. Not doing maintenance wears down that investment. Surface rust is sped up by concrete residue left on panels, and misaligned connections add to the time needed to do the work on-site.

Common Wear Patterns to Watch

The most common places for damage are worn connector pins from putting the panels together over and over, surface rust from being exposed to moisture between pours, and panel edge distortion from not stacking correctly. If you catch these problems early, they won't lead to more problems.

Maintenance as a Procurement Decision

For project engineers and materials managers, a written maintenance plan has a direct effect on the total cost of ownership. Projects that keep track of the state of panels over time always report lower costs per use than projects that don't keep organized records of maintenance.

Regular Cleaning and Surface Protection

After the pour is done, the concrete will still damage the modular steel formwork. When you leave alkaline residue on the sides of panels, it eats away at the protective layer and finally gets to the metal itself.

Cleaning Procedure After Each Pour

Before it hardens, use a plastic scraper or a stiff nylon brush to get rid of the new concrete residue. A weak acid wash, followed right away by a water rinse and neutralization, gets rid of built-up that has hardened. This leaves the surface clean without damaging the steel. When you brush wires against coated walls, they remove the protected layer.

Applying Release Agents Before Reuse

Before each pour, a thin, even coat of form release agent is put on to stop bonding and speed up the cleaning process afterward. You can use industrial mold oils or recyclable release agents on hot-dip galvanized or powder-coated surfaces. Both work well.

Rust Inhibitors and Touch-Up Coatings

Check the coats on the surface after cleaning them. In places where the powder coating has chipped, you need to use a zinc-rich primer to paint over them before the next pour. This step is very important for projects that will be near water or have a lot of humidity, as corrosion happens more quickly there.

Systematic Inspection and Timely Repairs

Inspection isn't just something you do once a season. A quick check at the panel level every time a formwork assembly is stripped takes less than two minutes and saves hours of work later.

Checkpoints: Panels, Joints, and Fasteners

Look at the sides of the panels to see if there are any holes deeper than 2 mm. These damage the quality of the concrete surface. Check to see if the connector pins and wedge bolts have changed shape. Panels with diagonal measures that are more than ±1.0 mm off from what is specified need to be fixed before they can be used again.

Instrument-Based Inspection Methods

A straightedge ruler and a feeler gage are all you need to check the smoothness of most panels. For high-load situations like bridge pier formwork that has to withstand lateral pressures of 60–80 kN/m², sample panels are loaded and weighed on a regular basis to make sure the structure hasn't been damaged over time.

Repair vs. Replacement Criteria

At a site workshop, small edge dents can be cold-pressed back into place. Welds that are cracked, panel faces with holes, or connectors that have visible fatigue cracks need to be replaced, not fixed in the field. Having a small stock of spare parts on hand cuts down on downtime when modular steel formwork parts need to be replaced.

Proper Handling, Storage, and Transportation

How the panels are moved from one project site to another and how they are stored when they're not in use are just as important to their state.

Safe Lifting and Moving Practices

When moving panel stacks with a crane, you should always use the right lifting points or spreading bars. When you drag panels across concrete floors, the edges get bent and the coatings get damaged. Teach your workers the right way to handle things by hand. If you drop a panel from waist height, it can forever damage a corner connection.

Storage That Protects Panel Surfaces

Panels should be stored horizontally on wood dunnage, not directly on the ground. Avoid stacking more than eight panels on top of each other so that the bottom panels don't bend when they're loaded. If you store your panels outside, cover them with weatherproof tarps to keep out the rain and direct sunlight, which wear down coatings over time.

Logistics Considerations for Bulk Shipments

To move panels from one project site to another, use padded steel racks or timber-framed boxes. These will keep the panels from moving around and hitting each other. Talk to your provider about the rules for long-haul or export packages when it comes to packaging. When GREEN FORMWORK panels are shipped abroad, they are packed so that the surface doesn't get damaged during ocean freight.

Routine Lubrication of Moving Components

When parts are put together and taken apart every day, locking wedges, hinge connectors, and adjustable prop threads are the ones that get the most wear and tear.

Components That Need Regular Attention

In the threads and hinge points of wedge bolts and pin connections, concrete paste builds up. If they aren't oiled, they stop, and workers have to hammer them free, which deforms the part and makes it possible for the next pour to cause the panels to be out of place.

Selecting the Right Lubricant

Please use lithium-based grease or a dry-film lubricant on the pins and threads of the connectors and wedges. Avoid putting petroleum oils on surfaces that will come into direct contact with concrete because they will stain the concrete. Lubricant should be used after cleaning, before putting away, and again before the next building cycle.

Seasonal Lubrication Adjustments

When it's cold outside, regular grease gets thicker and covers less area. For winter projects, switch to modular steel formwork grease that can handle temperatures below -20°C. In hot deserts, high-temperature grease keeps lubricant from moving off of connector surfaces when it's really hot.

Implementing a Maintenance Management System

Individual care habits are important, but a system-level method is what works for many project sites and a lot of panels.

Digital Tracking and Scheduling Tools

For example, Procore or simple ERP tools let teams keep track of how many times a panel has been used, when it was last inspected, and what repairs have been done on it by serial number or batch code. This information lets materials managers know which panels are getting close to the end of their useful life before they break down on-site.

Standard Operating Procedures and Training

There is less variation between work teams when SOPs are written down. Standardizing the steps for cleaning, inspecting, and lubricating after the pour can be done with a one-page illustrated schedule put in the site workshop. Clear visual guides help new crew members get up to speed faster on maintenance tasks than just verbal instructions.

Supplier Collaboration and Technical Support

Maintenance results are better when you work closely with your formwork provider. GREEN FORMWORK gives free technical help and example panels to procurement and engineering teams so they can make sure they meet performance standards before placing big orders. Their 180-person technical team has helped with projects in more than 100 countries and given tips on how to do repair on-site when it was needed.

Conclusion

Maintaining steel formwork is easy if you break it down into steps that you can do over and over again. Cleaning panels right away after stripping, doing short post-pour inspections, storing parts correctly, lubricating moving parts, and keeping digital records are all good habits that help panels last longer and reach the 300–500 cycle standard that is possible with Q235 steel systems.

Each step cuts down on the cost per pour and keeps the project on schedule. A disciplined modular steel formwork maintenance method pays for itself many times over over the lifetime of your formwork inventory, no matter what kind of projects you're working on. These could be residential towers, bridge infrastructure, or tunnel lining.

FAQ

How often should steel formwork panels be fully inspected?

After each pour, do a quick eye check. Then, do a full instrument-based check every 50 rounds or at the start of each new project phase. Keep track of decline trends across all of your panels by writing down what you find.

Is maintenance cost-effective compared to replacing panels early?

Yes. Industry data shows that regular cleaning and small fixes make things last a lot longer. It cost three times more per pour to replace panels that had been ignored for 100 cycles than to keep them up to 400 cycles.

Can maintenance practices differ by project type?

Of course. Panels used for bridge piers and tunnel lining are subject to higher horizontal pressures (60 to 80 kN/m³), so they need to be checked for welds and connectors more often than when they are used for regular wall panels.

What is the minimum storage requirement to prevent rust?

Keep panels off of bare ground, cover them to keep out the rain, and cover any metal that will be visible with a coating that stops rust. Dry storage inside is best, but storage outside is fine as long as it has the right weatherproof covering and wood dunnage.

How do I know when a panel is beyond repair?

Replace panels with welds that are cracked, faces that are perforated, or connectors that have visible fatigue cracks. Panels that can't be returned to a ±1.0mm limit in size after being cold pressed should also be thrown away.

Partner with GREEN FORMWORK for Proven Steel Formwork Solutions

GREEN FORMWORK sells high-quality modular steel formwork made from Q235 structural steel that is certified to ISO 9001, ISO 14001, and ISO 45001 standards and is made to be used 300–500 times. As a reliable company that makes modular steel formwork, we help buying teams by giving them free examples, full technical support, and the ability to make panels in any way they want. You can email us at sdxingruiqp@126.com or go to sdxingrui.com to get a quote or talk about the needs of your project.

References

1. American Concrete Institute. ACI 347R-14: Guide to Formwork for Concrete. ACI, 2014.

2. British Standards Institution. BS EN 12812:2008 — Falsework: Performance Requirements and General Design. BSI, 2008.

3. Hurd, M.K. Formwork for Concrete, 7th ed. American Concrete Institute, 2005.

4. International Organization for Standardization. ISO 9001:2015 — Quality Management Systems: Requirements. ISO, 2015.

5. Peurifoy, R.L., and Oberlender, G.D. Formwork for Concrete Structures, 4th ed. McGraw-Hill, 2011.

6. Construction Industry Institute. Formwork Safety and Productivity: Best Practices for Reusable Steel Systems. CII Research Report, 2018.
