What Is an American Type Scaffold Frame? A Buyer’s Guide for Buyers

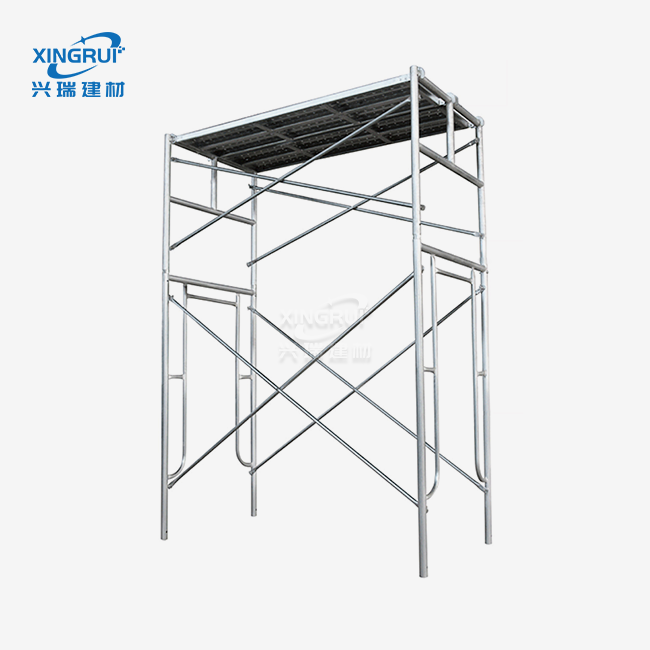

An American type scaffold frame is a modular, door-shaped steel scaffolding system built around vertical end frames, horizontal cross braces, and diagonal supports. Engineered to meet OSHA and ANSI A10.8 standards, it is the dominant scaffolding form in North American residential repair and commercial construction. These frames use standardized lock-pin connections that allow fast vertical stacking without tools. For B2B buyers sourcing direct from manufacturers, understanding the specifications, surface treatments, and compliance requirements of this system is the first step toward a sound procurement decision.

Understanding the American Type Scaffold Frame

Core Structure and Design Principles

At its core are three parts: two vertical end frames joined by horizontal rungs; cross braces that fit into the frames at regular intervals; and base plates, also known as screw jacks, at the bottom. The load on each leg is spread out equally across the three legs. Because of this, the column is solid and can be stacked up to many stories high without losing its length. This directly lowers the chance that mistakes will happen while the building is being done.

Material Specifications That Matter

The door frames that Shandong Xingrui Building Materials Co., Ltd. makes are made from 42.4×2.0mm Q235 premium steel tubing, which is 1.69 inches in diameter and has a wall thickness of 0.090 to 0.120 inches. All of the header-to-leg links get CO₂ protected welding at the joints to make them strong at wear. As long as the direction of the connection pins stays within ±0.5mm, buildings with more than one floor can be stacked straight. Frames on North American job sites are always 1700x1219mm, which is the usual size.

Load Capacity and Surface Treatment Options

There are more than 50,000 pounds of weight that each frame can hold. This is enough for heavy-duty work in brickwork and on office building facades. Hot-dip galvanization (HDG) with a zinc coating of ≥65 microns will guard against rust for 20 years or more, even in coastal places. Heavy-duty powder coating is better for normal outdoor storage. The North American distributor needs stock that can last through several rounds of renting and storage outside in the summer. This can be done with either choice.

Comparing American Type Scaffold Frame with Other Scaffold Systems

Frame Scaffold vs. Ringlock Scaffold

The rosette node in the middle of ringlock support is welded to vertical standards. This lets the scaffolding connect in more than one way, which is useful for industries with complicated shapes. Frame scaffolding, on the other hand, is easier to set up on flat, rectangular building surfaces, and you don't need a trained rigger to set up angles. For jobs that need to be done quickly, the frame system saves North American builders time and money on the cost of labor per linear foot of scaffolding.

Frame Scaffold vs. Cuplock Scaffold

People in Australia and Europe like the blade-and-cup locking method that Cuplock uses. Its parts don't always work with lock pins that are made to American standards. This makes it hard for sellers to keep both systems in store. There is no difference in how lock-pins work with the American type scaffold frame method as long as the outer diameter is 42.4 mm and the brace spacing is 4 feet. This means that a contractor can use frames from different places if the job calls for it, as long as an engineer makes sure they work together.

Frame Scaffold vs. Kwikstage

The V-board ledger on Kwikstage is bonded, so it can't be changed on the spot if it breaks. This is something that people in the UK and Australasia often use. American type scaffold frames are made up of separate rungs, cross braces, and pins that can all be changed out on their own. Because the parts can be fixed, the long-term costs of ownership are lower. When showing procurement managers the total cost of ownership for a rental fleet investment that lasts more than one year, this is a key point to make.

Procurement Insights: How to Buy American Type Scaffold Frames?

Evaluating Supplier Credentials

Get ISO certifications as a first step. ISO 9001 is for quality management, ISO 14001 is for environmental management, and ISO 45001 is for health and safety at work. Ask for records of the weld inspection and mill certificates that prove the steel meets Q235 standards, which are the same as ASTM standards. Xingrui has 12 welding robots and 6 automatic welding lines. Welds made by automated lines are more reliable than those made by human lines. This lowers the difference in size between batches in a direct way.

Pricing, Container Loading, and Landed Cost

It is common for bulk price for frame scaffolds to be 1700x1219mm frames that are stacked flat and properly strapped. A 40HQ container can hold a lot of these frames. Get the full list of costs from your supplier's logistics team. This should include the FOB price, ocean freight, handling at the destination port, and any Section 301 tariff classification that applies. Your margin is based on how much each frame cost to land, not how much it cost to make. Xingrui's supply chain team gives full shipping papers and plans for how to fill containers.

Sample Orders and Quality Verification

In a structured ordering process for american type scaffold frame, the plant is checked out, samples are approved, and a trial order for one container is placed. After that, orders are placed again every month or three months. Before you buy a whole container, get HDG samples that have been sized and tested for salt spray. People from outside of Shandong province who work as inspectors can watch the production run and use an Elcometer to check how thick the zinc coating is before the ships leave.

Installation, Safety, and Maintenance Guidelines

Step-by-Step Installation Essentials

Make sure the base is even. Put screw jacks on the mud floors of the first level and make sure they are level. After that, put the main frames in place. Put in the cross braces and snap lock pins before you add any material. Connect pins to the top of each frame before you stack the second level. For each new level, there should be a visual plumb check. The 29 CFR 1926.451 from OSHA says that a qualified person must watch over the building process and make sure the building is safe before each shift.

OSHA and ANSI A10.8 Compliance Requirements

OSHA says that towers without ties can't have a height-to-base ratio of more than 4:1. Systems can go over 125 feet high if they have the right number of wall ties and outriggers. ANSI A10.8 tells you the proper design loads, guardrail heights, and ways to get to the area. Standard OSHA-compliant wood spans can be used with frames that are 1700x1219mm (about 5'7"x4'). They don't need to be custom cut. This saves time and keeps things from going to waste on-site.

Maintenance and Inspection Routines

Use water and a stiff brush to clean the frames of american type scaffold frame after each project. This will get rid of concrete splatter and other junk. Make sure that each frame doesn't have any broken welds, bent rungs, or corrosion that goes past the zinc layer. Frames with legs that aren't straight should not be used. If the zinc coating on an HDG frame is at least 65 microns thick, the inside won't rust. This is a type of failure that you can't see until the tube wall stops being strong. Powder-coated frames with impact chips need to be fixed once a year so that rust doesn't get under the covering.

Making the Right Decision: Buyer's Checklist

Before you buy a container, follow these steps:

• Dimensional conformance: The frame should be 1700mm x 1219mm, have 42.4mm OD tubing, and have lock-pin spacing that works with the cross-braces you already have.
• Surface treatment selection: Choose HDG for coastal, high-humidity, or long-term rental groups. Choose powder coating for short-cycle or protected tasks.
• Certifications on file: You should show proof that you have ISO 9001, ISO 14001, ISO 45001, and mill certificates that can be linked to Q235 steel on file before you ship.
• Container loading plan: A confirmed loading plan lowers shipping costs and keeps the frame from warping while it's being shipped.
• Delivery timing: Compare the time it takes to make something to the building season. 920 people work in Xingrui's 79,800 m² facility. They can handle large orders and make sure they get delivered on time.
• Customization scope: Frames can be made to specific sizes or surface needs, and guides and samples can be found.

When you buy something every one to three months, these checkpoints protect your investment and set the stage for stable repeat orders.

Conclusion

American type scaffold frames are still the most popular choice for building in North America. This is because they meet OSHA standards, can hold heavy masonry loads, and allow for repair at the component level. When you buy directly from a certified plant instead of going through a third party, you can get better deals and have more control over the papers. This company has Q235 steel frames, an ISO-certified production process, and an experienced export team that makes it easy to switch from buying goods from wholesalers to buying them directly from the plant. Go to sdxingrui.com to read the full product specs and get in touch with the team to talk about how much you need.

FAQ

Q1: What does "door-type" mean in American scaffold terminology?

A: "Door-type" refers to the window-like shape of the end frame's rectangular portal. People can pass through at grade level when Walk-Thru frames are used. This keeps foot traffic going on urban job sites.

Q2: What is the difference between Mason Frames and Walk-Thru Frames?

A: These about 5'x5' frames are made to hold big concrete loads because the legs are made with ladder rungs built in. The open middle of a walk-through frame, which is about 5'x6'4", lets people walk through from the ground up. Most of the time, they are used to fix up commercial buildings or facades.

Q3: How do I verify zinc coating thickness before accepting a shipment?

A: If you want to know the dry-film thickness gage number on an Elcometer, ask the tester for it. It should be at least 65 microns thick on the HDG layer on the tube. Tests with salt spray that show no red rust after 500 hours or more are more proof of how good the coating is.

Q4: Can I mix frames from different suppliers on the same job?

A: Just as long as the OD (42.4 mm/1.69") and the space between the lock pins are the same. Before erection, a trained professional must make sure that the two are suitable. For mixed-component systems to work, OSHA has to give written expert approval.

Q5: Does Xingrui accept small trial orders before full container commitment?

A: Yes. Most of the time, people buy something by checking out a sample, then placing a trial order for one container, and then placing regular orders. At every step, you get technical help and all the paperwork you need to ship.

Get a Direct Quote for American Type Scaffold Frames — GREEN FORMWORK

With the GREEN FORMWORK, dealers in North America can talk to Xingrui's factory floor directly. We offer samples, set up third-party checks, and make sure all export paperwork is full as part of our American type scaffold frame seller program. The frames we use are made of Q235 steel that meets ANSI A10.8 standards, and our team has a lot of experience importing goods into North America. This means that we can make your first container as easy as your tenth. Send your needs to sdxingruiqp@126.com right away to get a quote.

References

1. Occupational Safety and Health Administration (OSHA). Scaffolding Safety Standards: 29 CFR 1926.451. U.S. Department of Labor, 2019.

2. American National Standards Institute (ANSI). ANSI A10.8: Safety Requirements for Scaffolding. American Society of Safety Professionals, 2019.

3. ASTM International. ASTM A53/A53M: Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated. ASTM International, 2020.

4. International Organization for Standardization. ISO 1461: Hot Dip Galvanized Coatings on Fabricated Iron and Steel Articles — Specifications and Test Methods. ISO, 2022.

5. National Institute for Occupational Safety and Health (NIOSH). Preventing Falls and Collapses in the Construction Industry. Centers for Disease Control and Prevention, 2021.

6. Construction Industry Institute (CII). Scaffolding Safety and Productivity in North American Construction Projects. University of Texas at Austin, 2020.
