Where to Buy 8-Hole Disc Scaffolding for Large Construction Sites

If you're sourcing modular support systems for large construction projects, 8-hole disc scaffolding is one of the most practical choices available today. Manufactured from Q235 premium carbon steel with hot-dip galvanization exceeding 80 microns, this system delivers vertical load capacity above 40kN per standard and a service life of 15–25 years. Whether you're supplying subcontractors across the Middle East, Southeast Asia, or beyond, knowing where to find a dependable ringlock scaffolding manufacturer with mixed-container capability and verifiable certifications is the first step toward margin protection and repeat business.

Understanding 8-Hole Disc Scaffolding: Features and Benefits

What Defines the Eight-Hole Rosette Design?

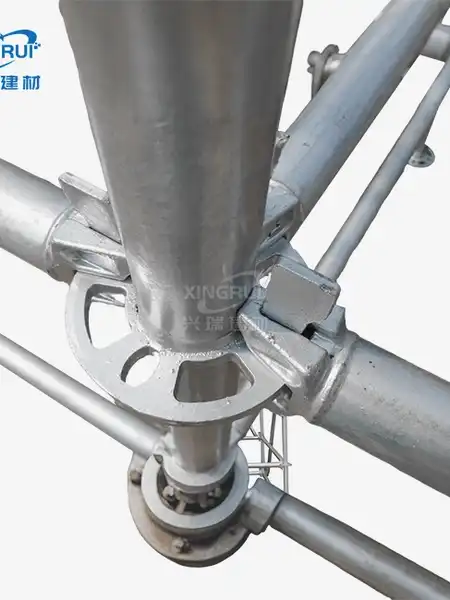

Along each vertical standard, the rosette connection is welded every 500 mm. There are eight slots on it, four narrow slots for perpendicular ledgers and four wider slots for diagonal bracing. This shape allows for true 45-degree triangulation, which is the main reason why this method doesn't deform when the building is more than 20 meters long. There is no other usual scaffolding arrangement that can do this without adding extra bracing.

Material Quality and Corrosion Resistance

Shandong Xingrui Building Materials Co., Ltd. makes all of their standards and ledgers out of Q235 premium carbon steel, and they make sure that the wall thickness is always within ±0.1mm. The hot-dip galvanization method puts on a zinc coating that is thicker than 80 microns, which meets the standards of ISO 1461. With regular upkeep, this finish will keep surfaces from rusting in seaside and industrial settings for 15 to 25 years. This means that it won't need to be replaced as often and will cost less overall per project cycle.

Modular Versatility for Complex Structures

The 8-hole disc scaffolding eight-hole layout gives site engineers a lot of options. It works with complicated frame systems, buildings with odd shapes, curved facades, and support needs in more than one way. Frame scaffolding forces you to work with fixed bay widths, but this modular system can be changed to fit the shape of any project without having to be custom made. The gravity-fed wedge-lock mechanism gets rid of all loose couplers, which makes setting up and taking down the system up to 50% easier than with tube-and-coupler systems. That saving on labor is a selling point for wholesale buyers, and your clients further down the line will notice it too.

Comparing 8-Hole Disc Scaffolding with Other Scaffolding Types

Eight-Hole vs. Four-Hole Disc Systems

A disk rosette with 4 holes only allows links that are straight across. Without extra hardware, it can't hold diagonal bracing in place at uniform angles. This is fixed by the eight-hole design, which adds four bigger diagonal holes right into the rosette plate. This difference decides whether the building stays straight when wind loads are applied to high-rise or long-span shoring. The structural margin that the eight-hole system offers is not a choice for buyers working on petrochemical or bridge projects; it is a requirement.

Eight-Hole Disc vs. Cuplock and Ringlock

Because they are quick, cuplock systems are often used for simple vertical shoring. But the top cup can come loose when it vibrates, which is a safety issue on busy manufacturing sites. Standard ringlock devices all use the same rosette idea, but the number of slots and wedge angle are different. When you mix brands with different wedge angles (which can be anywhere from 0.5mm to 1mm), fit problems happen. This risk of compatibility is eliminated when you only buy from one certified supplier. It also makes your quality control process easier at the warehouse level.

Lightweight vs. Heavy-Duty Configurations

A 48mm pipe width and a wall thickness of 3.2mm is enough for most exterior work and access platforms. For heavy civil uses like tunnel formwork, bridge shoring, and slab falsework, the 60mm pipe option with full HDG finish is needed. Shandong Xingrui makes both configurations in the same factory, so you can choose the right weight class for each job without having to switch providers. This one-source approach makes sure that your prices are the same for all of your mixed container shipments.

How to Choose the Right 8-Hole Disc Scaffolding Supplier for Large Projects?

Certification and Quality Documentation

Any 8-hole disc scaffolding supplier that you want to do business with should have at least ISO 9001 for quality management and ISO 14001 for environmental compliance. Shandong Xingrui is also certified by CE and meets the standards set by EN 12810-1 and AS/NZS 1576. Before signing a trial order, you should get mill test reports that confirm the grade of the steel is Q235, readings from a magnetic gage that show how thick the zinc layer is, and ultrasonic weld test records from the joint between the rosette and the pipe. If a client further down the line raises a quality disagreement, these papers will protect your position.

Factory Capacity and Delivery Reliability

How well you can handle monthly sales without delays is directly related to how much you can produce. Shandong Xingrui has a plant that is 79,800 square meters big. There are 12 welding robots and six automatic welding lines that are always working. The business is in Rizhao City, which is in Shandong Province and has its own airport, harbor, and high-speed train lines. This port's closeness cuts down on the time it takes to book containers and gives your logistics team a better idea of when ships will arrive, which is helpful when local job sites are running behind schedule.

Mixed-Container and Customization Capability

Filling each container quickly is important for a bulk distributor's profit margin. Shandong Xingrui can take requests for mixed containers that include ringlock standards, ledgers, diagonal braces, base jacks, and accessories all in one package. The company also does custom processing based on samples and drawings provided by the customer. This gives buyers who carry special specs for certain regional markets more options, which cuts down on dead stock and keeps your product line up to date without having to sign separate sourcing contracts.

Steps to Buy and Assemble 8-Hole Disc Scaffolding Efficiently

Procurement Process: From Sample to Regular Order

For a new 8-hole disc scaffolding bulk account, this is how the normal buying process works. First, list the details you need, like the pipe diameter, standard length, rosette interval, and surface finish. Then, ask for samples and mill certificates to back them up. Place an order for a trial container once the examples pass your arriving review. Set up a monthly or quarterly replenishment schedule based on how fast your local inventory turns over after delivery and warehouse verification. Shandong Xingrui accepts T/T payments with variable terms for the tail, and we can talk about partial L/C terms for bigger orders.

Before you accept a package, here are the main quality checks you should do:

• Spectrochemical analysis to confirm Q235 steel grade on incoming standards
• Zinc coating thickness measured with a magnetic gauge, minimum 80 microns per ISO 1461
• Ultrasonic weld testing on rosette-to-pipe joints, the highest-stress point in the assembly
• Dimensional check on outer diameter and wall thickness, tolerance within ±0.1mm
• Load verification on wedge-head shear strength under static load conditions

After your first delivery, make sure these five things are correct. This will help you keep an inspection record that protects both your business and your clients in the future.

Assembly Sequence and Safety Protocol

The wedge-lock assembly process starts with base jacks that are level on solid ground. Next come vertical standards with 500 mm between each rosette. Next come horizontal ledgers that are locked into the slots that are perpendicular to them. Finally, diagonal braces that are locked into the wider slots. If your building has more than two lifts, you should always do the lateral brace step. After the first seating, the self-locking wedge doesn't need a mallet, but every third lift, a qualified scaffolding competent person should check the brace placement. The temperature range for operation is -20°C to +200°C, which includes all typical job sites in Southeast Asia and the Middle East.

Maintenance and Reuse Cycle

Because they have an HDG finish, these parts can really be used in more than one project cycle. Check each standard for bent pipes, broken rosettes, or wedge wear after taking it apart. Parts that pass testing go back to stock right away. The 15–25-year service life estimate is based on the item being stored properly away from direct ground contact and having the cut edges zinc-plated every so often. The higher unit price compared to painted alternatives is mostly due to the fact that they can be used again and again.

Conclusion

When it comes to bulk wholesalers in the Middle East and Southeast Asia who sell to subcontractors and hardware networks, 8-hole disc scaffolding with an eight-hole rosette configuration is a good product at a good price. Your customers will want to buy from you again because the system can be used again, the materials are confirmed to be of high quality, and it's easy to put together. Shandong Xingrui Building Materials Co., Ltd. sells this system with full documentation, the ability to use a mix of containers, and factory-direct prices backed by real manufacturing depth in Rizhao, Shandong.

FAQ

Why choose an eight-hole rosette over a four-hole version?

The eight-hole rosette has four extra wide holes that let you brace diagonally at exact 45-degree angles without using any extra hardware. For structures taller than 20 meters, this triangulation is necessary for lateral stability. A four-hole system would need extra tube-and-coupler bracing to get the same rigidity.

What is the load capacity per standard?

The usual configuration meets EN 12810-1 and AS/NZS 1576, which say that the vertical load-bearing ability must be more than 40kN. Capacity is based on lift height, brace spacing, and the condition of the foundation. Always get a trained engineer to check your load calculations for the shape of your job.

Can components from different brands be mixed on site?

Technically, mixing is possible if the wedge angles and rosette sizes are the same. However, wedge angles and rosette plate widths can be 0.5mm to 1mm different from one maker to the next. In the real world, mixing brands on any building with more than two lifts needs to go through a compatibility and load-bearing proof test first.

Do you provide samples before a full order?

Yes, Shandong Xingrui gives full technical documentation, such as mill certificates and galvanization reports, along with physical samples before a container order is confirmed.

What payment terms are available?

The company takes T/T with flexible payment terms for the balance, and they can talk about partial letter of credit terms for large orders that meet certain requirements. Get in touch with the sales team to make sure the terms are good for your order size.

Get a Direct Quote from GREEN FORMWORK for 8-Hole Disc Scaffolding

With ISO 9001, ISO 14001, and CE certifications, mixed-container capability, and reasonable prices on trial and large orders, GREEN FORMWORK provides factory-direct 8-hole disc scaffolding. Contact our sales team at sdxingruiqp@126.com right now to get your product catalog and FOB quote. You can check the quality of our samples with our technical support before you commit to a full shipment.

References

1. British Standards Institution. BS EN 12810-1: Façade Scaffolding Made from Prefabricated Components — Part 1: Products Specifications. BSI, 2003.

2. Standards Australia. AS/NZS 1576: Scaffolding — General Requirements. Standards Australia, 2010.

3. International Organization for Standardization. ISO 1461: Hot Dip Galvanized Coatings on Fabricated Iron and Steel Articles — Specifications and Test Methods. ISO, 2009.

4. International Organization for Standardization. ISO 9001: Quality Management Systems — Requirements. ISO, 2015.

5. Occupational Safety and Health Administration (OSHA). Scaffolding Safety: OSHA 3150. U.S. Department of Labor, 2002.

6. Chandrangsu, T., and Rasmussen, K.J.R. "Investigation of Geometric Imperfections and Joint Stiffness of Support Scaffold Systems." Journal of Constructional Steel Research, Elsevier, 2011.
