Cuplock Scaffolding - Heavy-Duty Modular System for Professional Construction

Shandong Xingrui Building Materials Co., Ltd., a leading manufacturer since 2007, produces high-performance cuplock scaffolding built from Q235 premium steel in a 79,800-square-meter production facility. Our system features a precision cup-type locking joint structure with a 600mm step distance modular design, ensuring secure connections and superior load-bearing capacity. With 920 skilled employees, including 180 professional technicians, and 12 advanced welding robots across 6 automatic production lines, we deliver over 1,000 accessory specifications to more than 100 countries. ISO 9001, ISO 14001, and CE certified, our scaffolding supports large-scale formwork applications with exceptional stability and reusability.

Why Choose Our Cuplock Scaffolding System

The cup-type locking mechanism eliminates loose components that plague traditional tube-and-clamp systems. Your crew can connect up to four horizontals to a single standard in one rotary motion, dramatically reducing assembly time.

This rigid joint design provides excellent stress distribution for heavy shoring tasks. The fixed bottom cup and rotary top cup create a bolt-free connection that prevents slippage risks during high-load operations.

Our 600mm modulus vertical spacing ensures consistent geometric accuracy across your entire structure. This standardization simplifies planning and improves on-site safety management for large-area indoor formwork support projects.

Technical Specifications

Key Performance Advantages

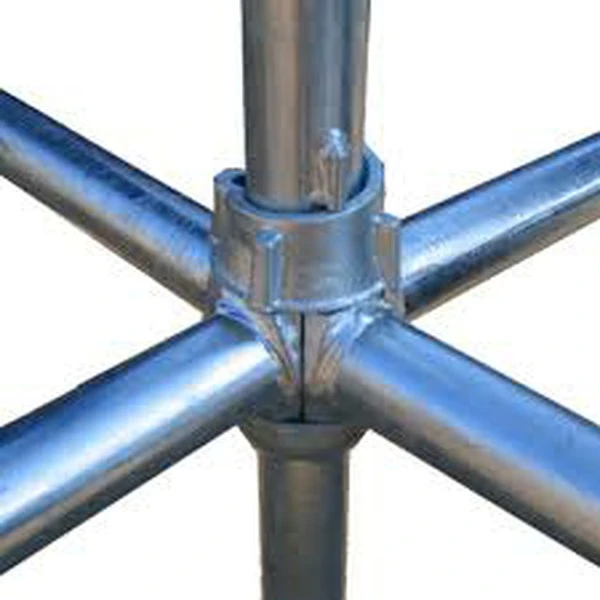

Our manufacturing process combines cold roll forming technology with robotic welding to ensure every node point meets strict tolerances. The stamped plug at each cross bar end fits precisely into the cup seat for reliable locking action.

You benefit from reduced labor costs through faster installation speeds. The system requires no specialized tools—a simple hammer tap completes the secure connection that won't loosen under working loads.

Reusability across multiple projects maximizes your return on investment. The galvanized finish resists corrosion in challenging job site conditions, extending service life while maintaining structural integrity.

Ideal Applications & Project Solutions

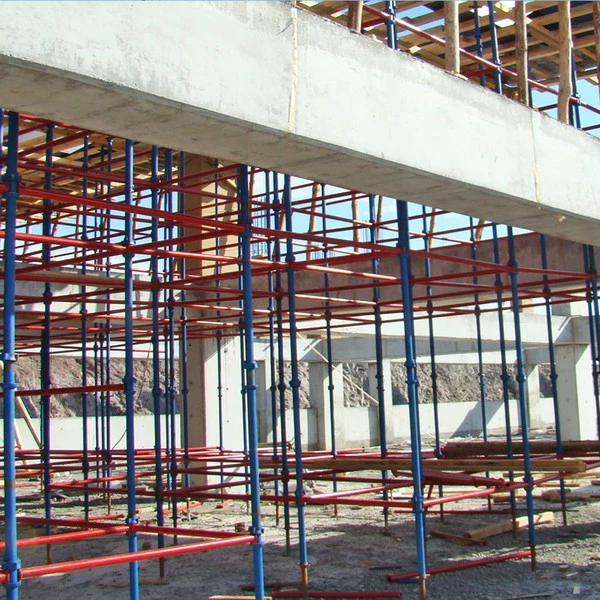

The cuplock scaffolding excels in building support frameworks for concrete formwork systems. Its rigid frame structure handles concentrated loads in multi-story residential and commercial construction.

Industrial maintenance projects benefit from the system's adaptability to uneven ground conditions. The modular design allows quick configuration changes to match evolving site requirements.

Infrastructure development teams trust our scaffolding for bridge construction falsework and tunnel support applications. The consistent node spacing ensures predictable structural behavior under engineering analysis.

Quality Control & Manufacturing Excellence

Our 40,000-square-meter standardized workshops house specialized production zones for each component type. Real-time quality tracking monitors raw material properties through final product inspection.

Four sets of cold roll forming equipment maintain uniform tube profiles. The electrostatic spraying workshop applies protective coatings that exceed international durability standards.

Complete product traceability documentation accompanies every shipment. Our ISO-certified quality management system guarantees compliance with AS/NZS 1576 and ANSI/SSFI SC100-5/05 benchmarks.

Installation & Safety Features

The self-aligning cup design reduces operator error during assembly. Your team achieves proper plumbness naturally through the system's geometric constraints built into each connection point.

Visual inspection quickly identifies serviceable components—any cup that doesn't fully tighten with a hammer blow should be removed from service. This simple check prevents structural compromise.

The lack of loose fittings eliminates the common problem of missing bolts or wedges. Every component remains attached to the main structure, reducing site cleanup time and replacement costs.

Packaging & Global Delivery

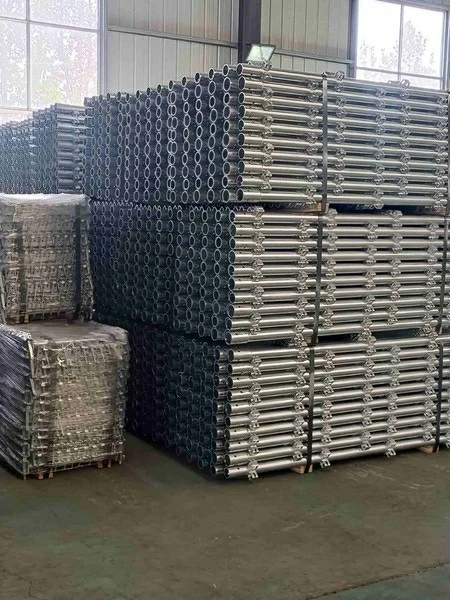

We bundle standards and horizontals separately in steel pallet configurations that optimize container loading. Protective wrapping prevents surface damage during international shipping.

Our Rizhao location provides direct access to port facilities, ensuring efficient export logistics. We support large-volume orders with stable supply capacity and predictable delivery schedules to your project sites worldwide.

FAQ

Q: Can I mix components from different batches or suppliers?

A: We recommend using matched components from the same production run. Variations in cup casting dimensions can affect locking integrity and overall structural performance.

Q: What maximum height can a freestanding tower reach?

A: Height depends on base dimensions and wind loads, but freestanding configurations typically reach 4x the minimum base width. Tied structures with proper engineering approval can exceed 50 meters.

Q: How does load capacity compare to ringlock systems?

A: Our product provides superior heavy shoring performance through centralized node point loading. Ringlock offers more angular flexibility for complex access scaffolds with lighter loads.

Q: What training does my crew need?

A: While simpler than traditional systems, workers should learn the proper locking sequence and leveling techniques. We provide technical guidance to ensure correct installation procedures.

Q: How do I maintain the system for long-term use?

A: Regular inspection for cup deformation and thread corrosion is essential. Clean components after each use and store in dry conditions to preserve the galvanized coating.
