A Complete Guide to Importing 8-Hole Disc Scaffolding in Bulk

If you're sourcing modular scaffolding for wholesale distribution across the Middle East or Southeast Asia, understanding how to import 8-hole disc scaffolding in bulk is one of the most valuable things you can do for your business. This guide walks you through everything — from what makes this ringlock system technically superior, to how to vet suppliers, manage logistics, and protect your margins. Whether you're placing your first trial container or scaling toward quarterly replenishment, the insights here will help you procure smarter and sell faster.

Understanding 8-Hole Disc Scaffolding: Key Features and Advantages

What Sets the 8-Hole Rosette Design Apart

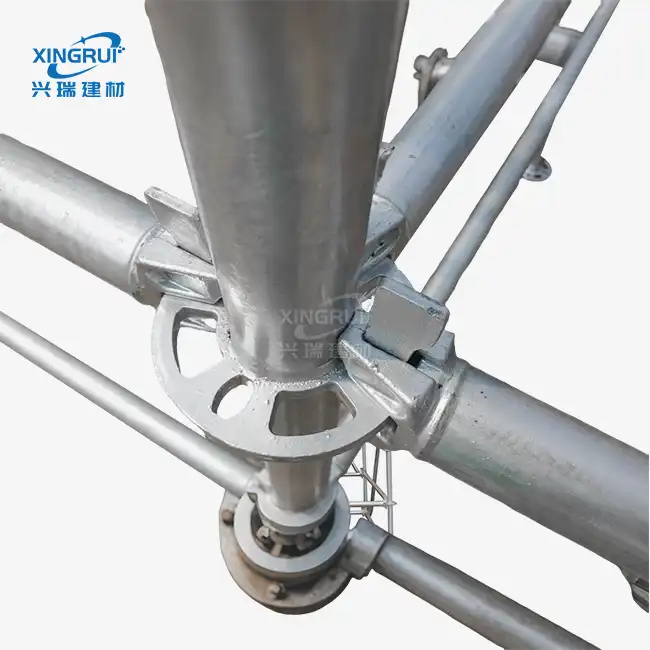

The rosette connection is what makes this system unique. It is a steel disk with eight evenly spaced holes that is welded every 500 mm along vertical standards. Four narrow slots can precisely fit ledgers that are straight. There are four wider holes that can fit diagonal braces, which allows for real 45-degree triangulation.

This shape is very important for keeping structures over 20 meters tall stable on the sides. This kind of spatial stiffness can't be achieved with systems that only have four connection points. That's why the 8-hole disc scaffolding design is now the most popular choice for supporting bridges, building facades for tall buildings, and maintaining industrial tanks.

The gravity-fed wedge-lock system gets rid of all the need for nuts and loose couplers. Because the connections lock themselves, the cost of assembly labor is up to 50% less than with tube-and-coupler options. This is very helpful when your downstream customers are on tight site schedules.

There are a few main fundamental benefits to this method that make it worth stocks:

• Multi-directional assembly: Eight connection points let you attach both the ledger and the brace at the same time. This makes it much easier to scaffold irregular or curved structures than with cuplock or frame systems.
• High axial load capacity: Each standard can hold a vertical load of at least 40kN, which is enough for heavy repair work in petrochemical and construction building.
• Bolt-free, tool-light installation: The wedge-lock design means fewer loose parts, lower risk of injury on-site, and faster disassembly, all of which are important to end users who need to finish projects quickly.
• 15–25 year service life: Hot-dip galvanization with a zinc coating thicker than 80 microns prevents corrosion for a long time, even in coastal and humid places like the Gulf and Southeast Asian markets.

The resale value goes up directly because of these structural benefits. 8-hole disc scaffolding is a key example of this advantage, and Ringlock systems are being chosen over cuplock systems by more and more builders and subcontractors because they have lower total costs over multiple project rounds.

Technical Specifications and Installation Process

Key Parameters Buyers Must Verify Before Ordering

Before placing a large order, your purchasing team should check the mill certificates and quality records of the seller to make sure they meet the following core requirements:

Installation Sequence and On-Site Safety

The right way to install something is to do it in a strict order: base plates go in first, then vertical standards are put up at module intervals, ledgers are put into rosette slots, and diagonal braces are wedge-locked into the wider slots before any vertical loading starts. At the plant, ultrasonic testing should be done on every rosette weld.

This is the most important part of the whole system that can go wrong. When people buy from Shandong Xingrui Building Materials Co., Ltd., they get parts that are made on six automatic welding lines with 12 welding robots. The range for measurement accuracy is kept to ±0.1mm throughout production.

Strategic Considerations for Bulk Importing

Supplier Verification and Documentation Checklist

It takes more than just looking at unit prices on Alibaba to choose the right 8-hole disc scaffolding manufacturer. A trustworthy supplier should give you proof-based paperwork that keeps you safe during customs clearance and quality issues later on. This is the bare minimum of the paperwork you should ask for:

• ISO 9001 certification for quality management, ISO 14001 certification for environmental management, and ISO 45001 certification for health and safety at work
• CE certification and mill test certificates that show the steel grade meets the requirements
• Spectrochemical research studies confirm the composition of Q235 material
• Ultrasonic weld test records for couplings from rosette to pipe
• Per ISO 1461 standards, reports on the thickness of zinc coatings
• Samples in the form of physical items and technical data sheets before the trial order is confirmed

All of these things are provided by Shandong Xingrui for every request made under the GREEN FORMWORK name. On request through sdxingrui.com, you can get samples with full technical support.

Logistics, MOQ, and Mixed-Container Strategy

The minimum order number is something that bulk importers often feel pressured to meet. When your customers work on different kinds of projects, locking your capital into a single SKU causes inventory risk. A good supplier should be able to handle mixed-load containers, which are 20- or 40-foot containers that hold vertical standards, ledgers, base plates, diagonal braces, and other parts. This one-container, full-system method is how experienced wholesalers in Dubai and Southeast Asia keep their catalogs full without having too many items on hand.

For versions that are in stock, the lead time from approved order to loading on a ship is usually 15 to 25 days. Custom specifications, like pipe diameters that aren't standard or a certain galvanization thickness, may take an extra 7–10 days. It's important that the port is close. Rizhao Port, which is where Shandong Xingrui's operations are based, has direct shipping lanes to Jebel Ali, Port Klang, and other major Southeast Asian hubs. It also has reasonable freight rates and stable booking schedules.

Decision-Making Framework for B2B Buyers

When deciding if the 8-hole disc scaffolding system is right for your business, it's easy to see how it stacks up against cuplock and frame scaffolding. Cuplock is good at supporting simple vertical loads, but it loses its geometric stability when it's set up in a way that isn't straight or square.

Frame scaffolding is faster for doing the same thing over and over in a home, but it can't be used in an industry or infrastructure setting. The ringlock system, particularly the 8-hole disc scaffolding variant, is in the middle to high-end range. It costs more per unit up front than the frame, but over many reuse cycles, it's much cheaper overall because the parts can be switched out and are galvanized to last longer.

The 8-hole disc scaffolding system has higher resale margins and leads to repeat accessory purchases for distributors who are trying to reach subcontractors in the heavy construction, petrochemical, or high-rise industries. For stores that care about prices, the low landed cost from a factory-direct provider like Shandong Xingrui makes the system a good choice, even when compared to choices made locally.

Best Practices and Compliance for Safe Use and Maintenance

Inspection Protocols That Protect Your Reputation

When warehouse managers get large orders, they should do a structured inbound inspection that checks the outer diameter to make sure it's the same (48.3mm or 60mm ±0.1mm), the zinc layer's adhesion using a magnetic thickness gage or the Preece Test, the weld integrity on all rosettes, and the wedge-head shear condition. Broken or bent wedges need to be kept away from other workers because they can damage the self-locking mechanism and put workers at risk of being sued on the job site.

Keeping a log of when parts are replaced by batch number makes it possible to track back to the plant lot, which is important in case of a quality claim. This process is made a lot easier when suppliers give mill certificates and lot-coded packing by batch.

Following EN 12810-1 and AS/NZS 1576 is accepted by many project standards in Europe, Australia, and the Middle East. Most Gulf Cooperation Council bidding requirements can be met with CE certification, and procurement compliance officers at bigger contractor organizations can be satisfied with ISO 9001 paperwork.

Conclusion

Importing modular ringlock scaffolding in bulk is a high-volume, low-margin business that rewards buyers who do their research on suppliers and keep good records. The 8-hole disc scaffolding system has measurable benefits in how well it holds together, how quickly it can be installed, and how long its parts last. These benefits can be turned into real selling points for your wholesale network. When you choose a factory-direct maker with confirmed certifications, the ability to handle mixed containers, and closeness to ports, you get rid of the factors that hurt your profit margin and your relationships with customers.

FAQ

What critical factors should I assess before placing a bulk order?

Check the grade of the steel by looking at mill certificates, the thickness of the zinc coating by using ISO 1461-compliant testing, and ask for weld integrity reports for rosette connections. Make sure the seller can load a mix of containers and offers open payment options, like T/T with partial advance.

How does the load performance of an 8-hole rosette compare to a 4-hole configuration in load performance?

The 8-hole disc scaffolding rosette has four extra wide slots for diagonal bracing, which is needed for 45-degree triangulation, which is important for stability above 20 meters. This can't be done with a 4-hole method, so it's not good for industry or high-rise uses where wind and uneven loads are important.

Can I mix components from different manufacturers?

Many companies use the standard that Layher came up with, but rosette thicknesses and wedge angles can be 0.5mm to 1mm different from one company to the next. Before mixing brands in any structure application, it is strongly suggested that you do a suitability and load-bearing verification test.

What is a realistic lead time from order to port?

Standard configurations with steel that is in stock should take 15 to 25 days from the time the order is approved until the ship is loaded. If you need specifics, this could take an extra 7–10 days.

Partner With GREEN FORMWORK for Competitive Bulk Sourcing

With factory-direct pricing, ISO-certified quality documentation, and mixed-container flexibility built into every order, GREEN FORMWORK, Shandong Xingrui Building Materials Co., Ltd., ships 8-hole disc scaffolding to over 100 countries from Rizhao Port. We support trial orders, samples, and quarterly replenishment cycles as a reputable 8-hole disc scaffolding manufacturer with over 920 employees and 12 welding robots in operation. To get a quote, email sdxingruiqp@126.com or go to sdxingrui.com.

References

1. European Committee for Standardization. EN 12810-1: Façade Scaffolding Made of Prefabricated Components. CEN, 2003.

2. Standards Australia / Standards New Zealand. AS/NZS 1576: Scaffolding — General Requirements. SAI Global, 2010.

3. International Organization for Standardization. ISO 1461: Hot Dip Galvanized Coatings on Fabricated Iron and Steel Articles. ISO, 2022.

4. International Organization for Standardization. ISO 9001: Quality Management Systems — Requirements. ISO, 2015.

5. Health and Safety Executive (HSE). Scaffolding Safety: Guidance for Contractors and Site Managers. HSE Books, 2019.

6. Construction Industry Research and Information Association (CIRIA). Temporary Works Procurement and Management in Construction. CIRIA, 2021.
