Crab 60series Scaffolding: A Complete Guide for B2B Buyers

If you manage procurement for large construction projects, you already know that choosing the wrong scaffolding system can cost you time, money, and safety compliance. The crab 60series scaffolding from Shandong Xingrui Building Materials Co., Ltd. is a heavy-duty modular shoring system built specifically for high-load, large-span, and high-rise construction. This guide walks B2B buyers through technical specifications, system comparisons, procurement strategies, real-world applications, and supplier selection criteria—so your team can make a confident, well-grounded purchasing decision from the start.

Understanding Crab 60series Scaffolding Specifications and Features

Getting the specifications right before purchasing saves your project from costly field adjustments. The 60series system is precision-engineered to meet international construction standards across diverse project environments.

Core Technical Parameters

The uprights measure 60.3mm in outer diameter with a 3.2mm wall thickness, manufactured from Q235 premium steel. The eight-hole rosette disc allows multi-directional connections at a 1.5m step distance and 1.2m standard span. Each leg carries a vertical load of 70–80 kN. The hot-dip galvanized coating reaches 60–80 microns, delivering a service life exceeding 20 years even in high-humidity or coastal environments.

Modular Design and Corrosion Resistance

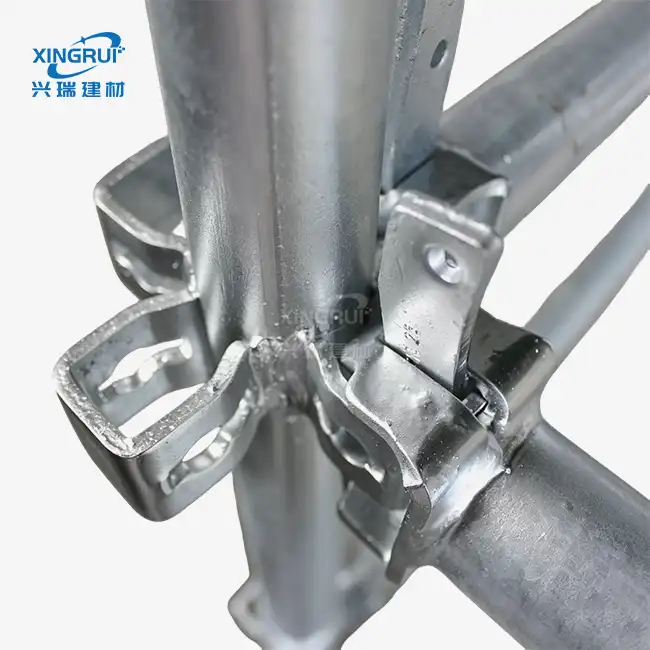

The wedge-lock connection mechanism is self-tightening by design. As vertical loads increase or site vibrations occur, the wedge seats deeper into the rosette disc—eliminating the need for additional fasteners and reducing connection failure risk. The galvanized surface treatment protects against oxidation, making this system suitable for both indoor industrial plants and exposed outdoor construction yards.

Safety Compliance and Maintenance Practices

The system is certified under ISO 9001, ISO 14001, and ISO 45001 management systems. Components pass spectroscopic raw material verification, ultrasonic weld testing, and compression load testing at the factory. Routine site maintenance requires only visual inspection of wedge seating, rosette weld integrity, and galvanization condition—tasks that any trained crew can perform efficiently between cycles.

Comparing 60series Scaffolding with Other Popular Scaffolding Types

The crab 60series scaffolding should be weighed against other options by procurement teams before they choose which system to buy. To help you make that choice, here is a straight-forward comparison based on facts.

60series vs. Standard 48.3mm Ringlock Systems

The tubes in a standard ringlock frame are 48.3 mm wide, which means that a single leg can only support 3–5 metric tons of weight. Anywhere from 6 to 8 metric tons can be held by each leg of the 60series standard. There is a direct link between this difference and the method meeting the standards for structural estimates when it is used for ultrahigh formwork shoring in bridge decks or transfer floor slabs.

60series vs. Cuplock Scaffolding

These devices are used to make a lot of medium-duty access platforms. They're easy to put together and can hold some weight, but their cup-and-blade joint doesn't fix itself when they're full. If you put the 60series wedge-lock joint somewhere that shakes a lot, like a busy factory or near heavy machinery, it stays rigid. On the other hand, cuplock joints may come loose in these spots over time.

When the 60series May Not Be the First Choice

One thing about the 60series system is that every part weighs more than options that aren't as heavy-duty. A 48series or frame scaffolding system costs less in terms of both supplies and work hours for short-term jobs with low loads, like finishing the inside of a house. Instead of always picking the heaviest choice, buying managers should make sure the system can handle the load.

How to Choose and Procure the Right Crab 60series Scaffolding for Your Business?

Structured procurement avoids the two most common B2B mistakes: over-specifying for simple jobs and under-specifying for demanding ones.

Define Load Requirements Before Requesting a Quote

Start by confirming the design vertical load per shoring leg from your structural engineer for crab 60series scaffolding. If the calculated load exceeds 50 kN per leg, the 60series is the appropriate system. For projects involving post-tensioned slabs, large-span cast-in-place beams, or high-clearance shoring towers above 8 meters, request a formal load calculation document from your supplier before signing any purchase agreement.

Evaluate Supplier Certification and Customization Capacity

A qualified supplier should provide CE certification documentation, ISO management system certificates, and batch-specific quality inspection reports. Shandong Xingrui Building Materials Co., Ltd. supports custom sizing based on buyer-supplied drawings, with samples available before bulk orders. Their 79,800-square-meter facility in Rizhao City, Shandong Province, includes 12 welding robots and 6 automatic welding lines—production infrastructure that supports stable delivery timelines on large-volume orders.

Understand Trade Terms and Lead Times

Standard lead time from confirmed order to shipment runs 15–30 days for production. Rizhao City has its own seaport, which reduces inland logistics complexity for export containers. Buyers should confirm FOB or CIF terms, payment conditions (typically 30–50% TT advance), and whether the supplier can issue a full documentation package including packing list, bill of lading, and certificate of origin for customs clearance at the destination port.

Practical Use Cases and Benefits of Crab 60series Scaffolding in B2B Projects

This method for crab 60series scaffolding works well in a number of tough building spots. When buying teams know where the value is added the most, they can better explain to project stakeholders why the cost per unit is worth it.

Here are three types of projects where the 60series makes a real difference in how well they get done:

• Bridge and viaduct cast-in-situ decks: High-clearance shoring towers supporting wet concrete loads of 24–30 kN/m² require leg capacities that 48.3mm systems cannot reliably achieve. The 60series meets this requirement with verified load test data, reducing the risk of mid-pour shoring failure.
• Industrial plant equipment installation: Power generation facilities and petrochemical plants often require scaffolding that holds both workers and heavy equipment simultaneously. The system's rigid rosette joint prevents lateral drift in high-density modular grid configurations common in confined plant layouts.
• Large-span public structures: Metro station roof formwork, stadium grandstands, and transfer slabs in mixed-use towers all demand minimal deflection under significant dead loads. The 60mm tube diameter limits mid-span deflection compared to narrower systems, protecting concrete quality during the curing phase.

Conclusion

The heavy-duty crab 60series scaffolding system is what people who build bridges, work in factories, and build long-span public infrastructure really need. The 70–80 kN per-leg capacity, self-tightening wedge-lock joints, and use of Q235 quality steel make it a good choice for sourcing teams in charge of high-load projects. This system is approved by ISO 9001, ISO 14001, and ISO 45001, and its parts can be used over and over again. It can also be made to fit your needs. It makes sure that rules are followed and has long-term value. Before you place a big order, make sure the system can handle the work you need it to do, look at the supplier's license papers, and ask for samples.

FAQ

Q1: What steel grade is used in the 60series uprights?

A: They are made of Q235 premium steel and have a diameter of 60.3 mm and a wall thickness of 3.2 mm. This kind has the right amount of tensile strength for high-load shoring.

Q2: Can the 60series integrate with standard 48.3mm accessories?

A: With the help of transition couplers and adapters, standard 48.3mm ledgers can be added to parts of the building that aren't supporting weight. This lets project engineers choose from more layouts.

Q3: What is the expected service life in coastal environments?

A: Standard HDG corrosion resistance data shows that the 60–80 micron hot-dip galvanized coating keeps the structure strong for more than 20 years, even in coastal areas with a lot of salt.

Q4: Is custom sizing available?

A: Yes, Shandong Xingrui Building Materials Co., Ltd. can make custom work based on the buyer's ideas. Before a full run is made, samples can be ordered. They are generally ready in 7–14 days.

Q5: What certifications should I request from the supplier?

A: You should ask for CE certification, ISO 9001 quality management certificates, and inspection reports for each batch that check for dimensional tolerance, weld integrity test results, and measurements of the galvanization thickness.

Request a Quote for Crab 60series Scaffolding — Contact GREEN FORMWORK Today

The factory that makes scaffolding at Shandong Xingrui Building Materials Co., Ltd. is 79,800 m², and they can make it in any size. GREEN FORMWORK sells approved "crab 60series" support that is backed by ISO 9001, ISO 14001, and ISO 45001 systems. We are a trusted company that makes crab 60series scaffolding, and we can offer you low prices, samples, and shipping straight from Rizhao Port. Send your project plans or RFQ to sdxingruiqp@126.com by email.

References

1. European Committee for Standardization. EN 12811-1: Temporary Works Equipment — Scaffolds. CEN, 2003.

2. British Standards Institution. BS EN 12810-1: Facade Scaffolding Made of Prefabricated Components. BSI, 2003.

3. American Society of Civil Engineers. ASCE 37-14: Design Loads on Structures During Construction. ASCE, 2014.

4. International Organization for Standardization. ISO 9001:2015 Quality Management Systems — Requirements. ISO, 2015.

5. Construction Industry Research and Information Association. CIRIA C703: Falsework — A Practical Guide. CIRIA, 2012.

6. Occupational Safety and Health Administration. OSHA Standard 1926.452: Scaffolding — General Industry Construction Standards. U.S. Department of Labor, 2021.
