Modular Steel Formwork Uses in High-Rise Concrete Construction

When project schedules are tight and structural tolerances leave no room for error, the choice of concrete formwork becomes one of the most consequential decisions a procurement team makes. Modular steel formwork has emerged as the preferred solution for high-rise concrete construction because it combines dimensional precision, high load-bearing capacity, and rapid cycle times within a single reusable system. Whether you are managing a 40-story residential tower or a large-scale infrastructure corridor, understanding how this system performs at height is essential for protecting both your budget and your project timeline.

​

Understanding Modular Steel Formwork in High-Rise Construction

What the System Actually Is

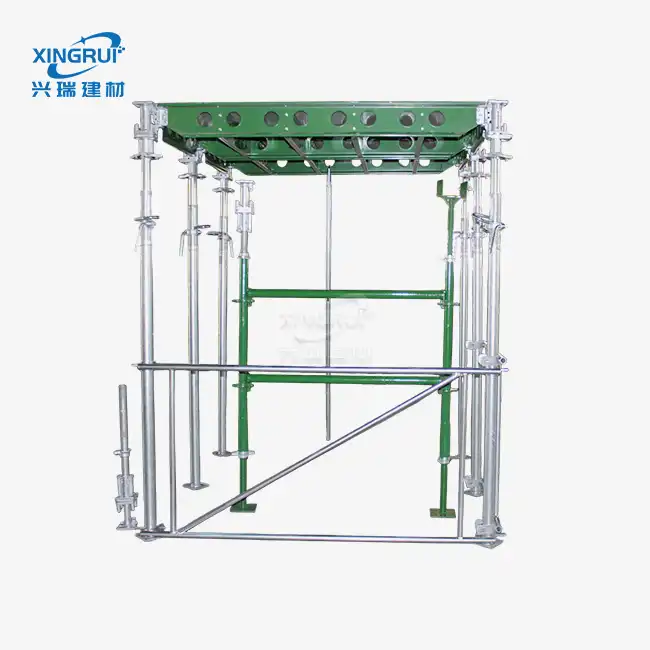

Modular steel formwork is a standard method of connecting panels made from structural-grade steel. A pin-and-wedge system connects each panel to the ones next to it, making a rigid mold that holds fresh concrete under pressure. The structure looks like a grid made of Lego pieces. It can be used over and over again and keeps its shape after hundreds of pours.

Why High-Rise Projects Demand It

In shear walls and lift shafts, tall buildings put a lot of lateral pressure on the concrete. A system with a low rating can bulge, crack, or even break down completely. Steel plates made to withstand 60–80 kN/m² of lateral pressure give structures a safety cushion that wood and plywood just can't match at height, where errors in verticality build up floor by floor.

Core Performance Characteristics

Load capacity, surface quality, and the ability to be used again are the most important performance traits for structural engineers and procurement managers. Steel formwork produces a smooth concrete finish that usually doesn't need extra plastering. This saves money on multiple floors because it keeps the deflection limit at L/400 and the tolerances at ±1.0 mm.

Comparing Modular Steel Formwork with Traditional Formwork Solutions

Lifecycle Cost Comparison

Wood and plywood pieces can usually be used 5–20 times before they start to break down and become unstable. Under normal site conditions, a modular steel formwork system from GREEN FORMWORK can be used 300 to 500 times or more. The per-pour cost drops sharply when you spread the purchase price over that service life. This makes the initial capital outlay easy to defend in any procurement review.

Labor and Installation Efficiency

With traditional formwork, workers have to measure, cut, and fit pieces on-site, which takes a lot of time and makes a lot of trash. Steel panels that are all the same come ready to be put together. Here are the main ways that this change will make a high-rise project more efficient:

• Reduced cutting labor: Panels interlock without field trimming, cutting labor hours by a substantial margin on repetitive floor plates.
• Faster floor cycles: Rigid steel panels allow 4–5 day floor cycles on standard residential towers, compared to 7–10 days with conventional timber systems.
• Lower waste disposal costs: Steel generates near-zero site waste; timber formwork debris requires active management and disposal.

These benefits add up over the life of a building with more than one floor. If a builder can get even one more floor cycle per month on a 30-story building, they can get their money back on the formwork before the project is halfway done. Formwork made of wood, especially tropical hardwood plywood, can lead to trees being cut down and a lot of trash going to landfills. For projects that need to meet green building rating systems like LEED or ESG reporting standards, steel formwork is known to be a better choice because it is better for the environment.

Environmental Profile

Steel is fully recyclable at end of service life. Timber formwork, particularly tropical hardwood plywood, carries deforestation risk and generates significant landfill volume. For projects under green building rating systems such as LEED or projects with ESG reporting requirements, the environmental profile of modular steel formwork is a documented procurement advantage.

Installation and Design Principles for Optimal Performance

Load Calculation Before Assembly

The pour rate, the weight of the concrete unit, and the temperature should all be used to figure out the concrete pressure at the start of every high-rise pour plan. When walls are made at normal rates, the horizontal pressure usually gets to 40 to 60 kN/m². The GREEN FORMWORK system, which is rated to 60–80 kN/m², gives a good safety cushion without making the tie rod structure too complicated.

Step-by-Step Assembly Protocol

The most common site failures can be avoided with a clean installation sequence. Setting up a level base plate, putting in place corner panels first to set the geometry, interlocking field panels one at a time, inserting through-wall ties at the right distances, and tightening all wedge pins before pouring concrete. The last check before the pour is to make sure the panels are flat and the pins are engaged.

Common Pitfalls to Avoid

Skipping the pre-pour flatness check is the most common reason for blowouts and surface flaws. Even if the panels look flat, they may have a 2–3 mm bow if the base plates are not level. Also, using the same panels over and over again without cleaning off the concrete residue between pours speeds up surface wear and lowers the quality of the fair-faced finish that makes the system investment worthwhile.

Procurement and Supply Chain Insights for Modular Steel Formwork

Evaluating a Supplier's Technical Credentials

For high-rise and infrastructure purchases, certification paperwork is a must. At the plant level, look for ISO 9001 certifications for quality management, ISO 14001 certifications for environmental management, and ISO 45001 certifications for health and safety at work. For projects in Europe, CE marking under EN 12812 is needed, and it's being used more and more in Belt and Road project bid documents. All of these things are held by GREEN FORMWORK and have been checked by outside auditing groups.

Lead Time and Production Capacity Planning

For big jobs, deliveries need to be timed to fit with the building stages. A supplier that doesn't have enough automated production capacity can't promise that the quality of all 50,000 square meters of modular steel formwork panels will be the same. The production base in Rizhao has more than 40,000 square meters of standard workshops with 12 welding robots and 6 automatic welding lines. These workshops can handle big orders from around the world without changing the sizes of batches.

Customization and Technical Support

For non-standard structural design like curved walls, sloped slabs, and irregular column sections, you need a source who can make things from drawings. GREEN FORMWORK takes custom orders based on drawings provided by the customer and offers free samples and technical help before production starts in full. This lowers the chance of field conflicts and speeds up the process for first-time buyers from purchase to rollout.

Future Trends in Steel Formwork for High-Rise Construction

BIM Integration and Digital Planning

The way formwork systems are described is changing because of Building Information Modeling. When suppliers offer panel libraries in BIM-compatible formats, engineering teams can digitally model the whole formwork layout before a single panel is shipped. This lowers communication mistakes between drawings, which are a main cause of redo on-site, and makes it possible to find clashes with MEP systems built into concrete walls.

Advanced Coatings and Material Performance

Even though fresh concrete is alkaline, hot-dip galvanization and high-performance powder coating already protect steel plates from it. The next generation of coatings aims to use less release agent and strip faster, cutting down on the time between pouring and removing the form without damaging the surface.

Green Material Procurement Trends

Project owners and developers want more information about stored carbon in the supply chain. Lifecycle carbon assessments show that steel formwork with a lot of recycled material and a long service life performs well. This is becoming an important factor in the selection process for commercial high-rise projects in North America and Europe.

Conclusion

For high-rise concrete construction, steel panel formwork has become the standard method because it works well under the pressure, accuracy, and time constraints that come with tall buildings. It has a service life measured in hundreds of cycles, almost no waste on site, and is known to meet international management standards. This makes it a strong case for procurement. For teams looking for a new provider, the things that really set them apart are confirmed certifications, automated production capacity, and the ability to make modular steel formwork changes based on drawings.

FAQ

How many times can steel formwork panels be reused?

With routine cleaning after each pour and a light coat of release agent before the next use, Q235 steel panels maintain structural and surface performance for 300–500 or more reuse cycles. The actual number depends on site handling conditions and storage practices between projects.

Does steel formwork work for curved or non-standard structures?

Yes. Drawing-based fabrication allows manufacturers to produce panels that match curved walls, tapered columns, and irregular geometric configurations. Standard flat panels handle the majority of repetitive high-rise floor plates, while custom units address non-standard sections.

What maintenance does a steel formwork system require?

After each strip, remove concrete residue with high-pressure water or mechanical scrapers, inspect wedge pins and edge profiles for deformation, and apply a thin layer of form release oil before stacking panels for storage. Panels showing rib deformation or pin-hole elongation should be removed from service.

How does the system meet international safety standards?

GREEN FORMWORK panels comply with EN 12812 structural design requirements and are manufactured under ISO 9001, ISO 14001, and ISO 45001 certified management systems. Every production batch undergoes ultrasonic weld testing to verify 100% weld penetration before shipment.

Request a Quote from GREEN FORMWORK — Modular Steel Formwork Manufacturer

For high-rise, bridge, and subway projects all over the world, GREEN FORMWORK provides Q235 steel panel systems rated to 60–80 kN/m² lateral pressure. Our Rizhao factory ships to more than 100 countries, and you can get free samples and full technical support before you confirm your order. To get a formwork plan and price that fits your project drawings, email our team at sdxingruiqp@126.com or visit sdxingrui.com.

References

1. Concrete International — "Formwork Performance in High-Rise Concrete Construction," American Concrete Institute, 2021.

2. Construction and Building Materials Journal — "Comparative Life Cycle Assessment of Steel and Timber Formwork Systems," Elsevier, 2020.

3. Journal of Construction Engineering and Management — "Cycle Time Optimization in High-Rise Residential Construction," ASCE, 2019.

4. EN 12812:2008 — "Falsework: Performance Requirements and General Design," European Committee for Standardization, 2008.

5. ISO 9001:2015 — "Quality Management Systems — Requirements," International Organization for Standardization, 2015.

6. Building and Environment Journal — "Environmental Impact of Reusable Formwork Systems in Urban Construction," Elsevier, 2022.
